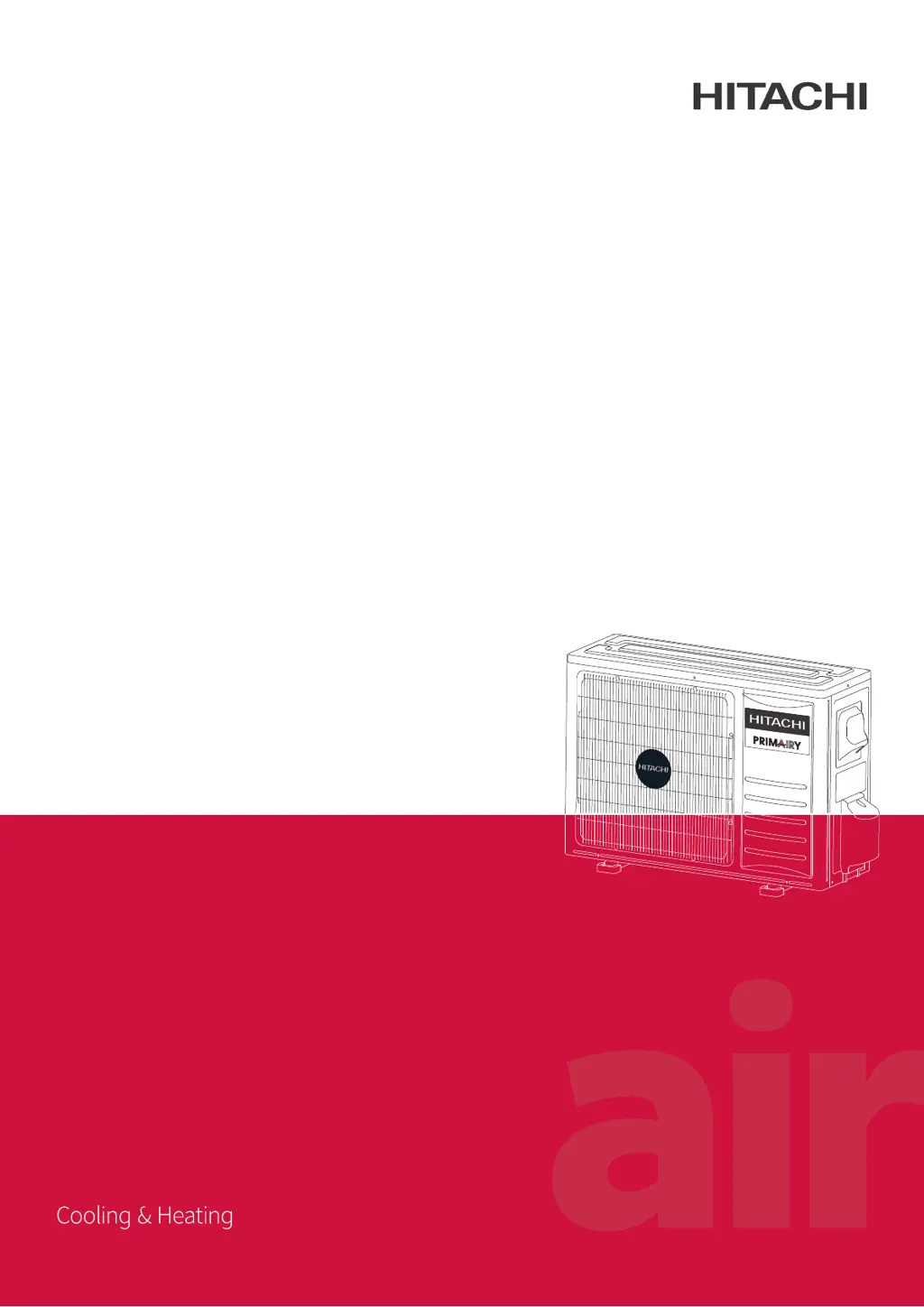

SERVICE MANUAL
PRIMAIRY
LARGE SINGLE SPLIT
DC-INVERTER SERIES
MODELS
MODELS
HS2021393HA
SM)-210131
INDOOR UNITS
OUTDOOR UNITS
DUCTED
RPIL-1.0PNN1DH
RPIL-1.5PNN1DH
RPIL-2.0PNN1DH
RPIM-3.0PNN1DH
RPIM-4.0PNN1DH
CASSETTE
RCIM-1.0PNN1DH
RCIM-1.5PNN1DH
RCI-2.0PNN1DH
RCI-3.0PNN1DH
RCI-4.0PNN1DH
RAS-1.0PNNBDH1
RAS-1.5PNNBDH1
RAS-2.0PNNBDH1
RAS-3.0PNNBDH1
RAS-4.0PNNBDH1

Table of Contents

Other manuals for Hitachi RPIM-3.0PNN1DH

Preview: Installation & Maintenance Manual
Installation & Maintenance Manual20 pages

Questions and Answers

  • A
    adelgadoAug 9, 2025
    Why is my Hitachi Inverter air conditioner not cooling/heating properly?
    • T
      Tina RuizAug 9, 2025
      There are several reasons why your Hitachi Inverter air conditioner might not be cooling or heating effectively. It could be due to a dirty outdoor heat exchanger (like the condenser), heating devices operating indoors, insufficient air tightness in the room, a blockage of the outdoor heat exchanger, or an incorrect temperature setting. To resolve this, try cleaning the outdoor unit's heat exchanger, removing any heating devices, ensuring the room is properly sealed, removing any obstacles blocking the outdoor unit, and verifying that the temperature is set correctly.
  • J
    Jesse AdamsAug 15, 2025
    What to do if my Hitachi Inverter air conditioner won't start up?
    • J
      Jermaine WhiteAug 15, 2025
      If your Hitachi Inverter air conditioner isn't starting, the issue could stem from several causes. First, check the power supply circuit to ensure it's functioning correctly. Second, measure the insulation resistance to ground to check for any leakage. Third, inspect the power supply circuit for defective contacts or leak current. Fourth, double-check the remote controller settings. Finally, replace the remote controller batteries.
  • S
    sullivanemilyAug 21, 2025
    What to do if my Hitachi Inverter air conditioner is leaking water?
    • R
      Richard SandersAug 21, 2025
      If your Hitachi Inverter air conditioner is leaking water, it could be due to a blocked or broken drainage pipe, or the refrigerant pipe joint not being completely sealed. To fix this, try changing the drainage pipe. Also, re-wrap the refrigerant pipe joint to ensure it is tight.
  • A
    Angela FloydAug 27, 2025
    Why does the compressor in my Hitachi Inverter start and stop frequently?
    • C
      Christopher WatkinsAug 27, 2025
      If the compressor in your Hitachi Inverter is starting and stopping frequently, it's likely that the air inlet or outlet is blocked. Remove any obstacles to resolve this.
  • G
    Gabrielle Coleman MDSep 2, 2025
    Why is my Hitachi Inverter making sounds from deforming parts?
    • V
      Vincent GonzalesSep 3, 2025
      During the system's starting or stopping, you might hear a sound. This sound is due to the normal deformation of plastic parts. This is not abnormal, and the sound will disappear soon.

Summary

1. Option List

1.1 Wired Remote Controller

Details on the wired remote controller, its installation, operation, and settings.

1.2 Wireless Remote Controller

Information about the wireless remote controller, its buttons, LCD indicators, and operation.

1.3 IR Receiver

Details on the IR receiver, including parts, installation, and operation.

2. Troubleshooting

2.1 Trouble Guide

Guide to common malfunctions, their possible reasons, and how to deal with them.

2.2 Fault Codes

Table of fault codes for outdoor and indoor units, including descriptions and solutions.

3. Checking Components

3.1 Check Refrigerant System

Procedure for checking the refrigerant system, including pressure tests and troubleshooting flowcharts.

3.2 Check Parts Unit

Inspection of various unit parts such as fan motors, compressor, and step motors.

4. Disassembly Procedure

Outdoor Unit Disassembly

Steps for disassembling and assembling the outdoor unit, including compressor and motor.

Ducted Type Fan Motor Disassembly

Instructions for removing and replacing fan motors in ducted units.

Cassette Type Disassembly

Procedures for fan motor and condensate pump replacement in cassette units.

5. Control Logic Description

5.1 Fan Only Mode

Description of operation rules for the Fan Only mode, including fan speed selection.

5.2 Cooling Mode

Rules for indoor and outdoor fan operation and compressor control in cooling mode.

5.3 Heating Mode

Operation rules for indoor and outdoor fans, and compressor in heating mode.

5.4 Auto Mode

Logic for mode selection and fan operation in Auto mode based on temperature difference.

5.5 Evaporator Low-temperature Protection

Protection mechanism for low evaporator temperature in cooling mode.

5.6 Condenser High-temperature Protection

Protection mechanism for high condenser temperature during operation.
