Hitachi SRL Series User Manual

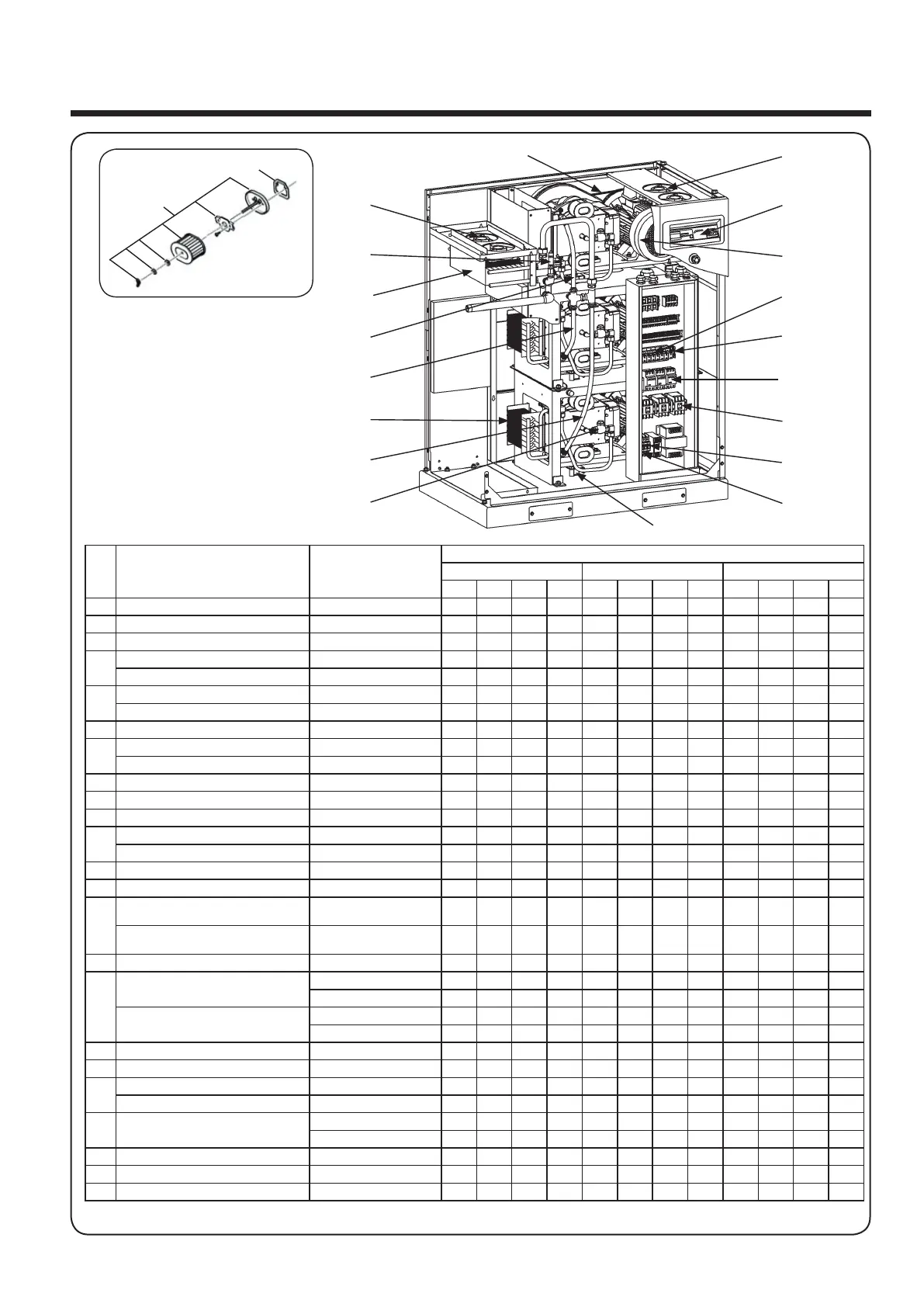

Parts List
33
No. Parts Name Parts No.
Quantity/Unit
SRL-7.5M6 SRL-11M6 SRL-16.5M6
LL ML LH MH LL ML LH MH LL ML LH MH
1 Intake Air Filter 758334 3 3 3 3 4 4 4 4 6 6 6 6
2 Intake Air Filter Gasket 741227 3 3 3 3 4 4 4 4 6 6 6 6
3 Check Valve 742044 2 2 2 2 2 2 2 2 3 3 3 3
4
Safety Relief Valve (for 122psig) 742323 1 1 - - 1 1 - - 1 1 - -
Safety Relief Valve (for 145psig) 742324 - - 1 1 - - 1 1 - - 1 1
5
V-Belt 742231 1 1 3 3 - - 4 4 - - 6 6
V-Belt 740751 2 2 - - 4 4 - - 6 6 - -
6 Ventilating Fan 742326 2 2 2 2 2 2 2 2 4 4 4 4
7
Rubber Vibration Isolator 754472 4 4 4 4 - - - - - - - -
Rubber Vibration Isolator 755661 4 4 4 4 8 8 8 8 12 12 12 12
8 Rubber Hose 743493 1 1 1 1 1 1 1 1 1 1 1 1
9 Rubber Hose 743494 1 1 1 1 1 1 1 1 1 1 1 1
10 Rubber Hose 742193 - - - - - - - - 1 1 1 1
11
Electromagnetic Contactor 760200 1 1 1 1 - - - - - - - -
Electromagnetic Contactor 760201 1 1 1 1 2 2 2 2 3 3 3 3
12 Fuse (for UL Power Supply Panel) 742352 2 2 2 2 2 2 2 2 2 2 2 2
13 Relay 760207 6 6 6 6 6 6 6 6 7 7 7 7
14
Circuit breaker (No.1)
(for AC208/230V)
760198 1 - 1 - 1 - 1 - 1 - 1 -
Circuit breaker (No.1)
(for AC460V)
760199 - 1 - 1 - 1 - 1 - 1 - 1
15 Circuit breaker (No.2) 742351 1 1 1 1 1 1 1 1 1 1 1 1
16
Motor Breaker
(for AC208/230V)
760202 1 - 1 - - - - - - - - -
760203 1 - 1 - 2 - 2 - 3 - 3 -
Motor Breaker
(for AC460V)
760204 - 1 - 1 - - - - - - - -
760205 - 1 - 1 - 2 - 2 - 3 - 3
17 Primary Cooler 743384 2 2 2 2 2 2 2 2 3 3 3 3
18 Secondary Cooler 743385 1 1 1 1 1 1 1 1 1 1 1 1
19
Electric Motor (IE3 3HP) 760195 1 1 1 1 - - - - - - - -
Electric Motor (IE3 7.5HP) 760197 1 1 1 1 2 2 2 2 3 3 3 3
20 Printed Circuit Board
760210 1 1 1 1 1 1 1 1 - - - -
760211 - - - - - - - - 1 1 1 1
- Pressure Sensor 740374 1 1 1 1 1 1 1 1 1 1 1 1
- Temperature Sensor 743274 3 3 3 3 3 3 3 3 4 4 4 4
- Orifice Fitting 756504 1 1 1 1 1 1 1 1 1 1 1 1
Note: Contact the local Hitachi distributor for any parts not mentioned on the list provided above.
3
4
5
8
6
7
11
12
13
14
16
1
2
6
9
10 15
17
18
19
20
