Hitachi TRK-8190E - SAFETY AND DISASSEMBLY PROCEDURES; Safety Precautions; Disassembly Steps

| TRK-8190E, E(BS) |
SAFETY PRECAUTION
The following precautions should be observed when servicing.
1. Since many parts in the unit ‘have special safety related characteristics, always use genuine Hitachi's replacement
parts. Especially critical parts in the power circuit block should not be replaced with other makes.
Critical parts are marked with A in the schematic diagram and circuit board diagram.
2. Before returning a repaired unit to the customer, the service technician must thoroughly test the unit to ascertain
that it is completely safe to operate without danger of electrical shock.

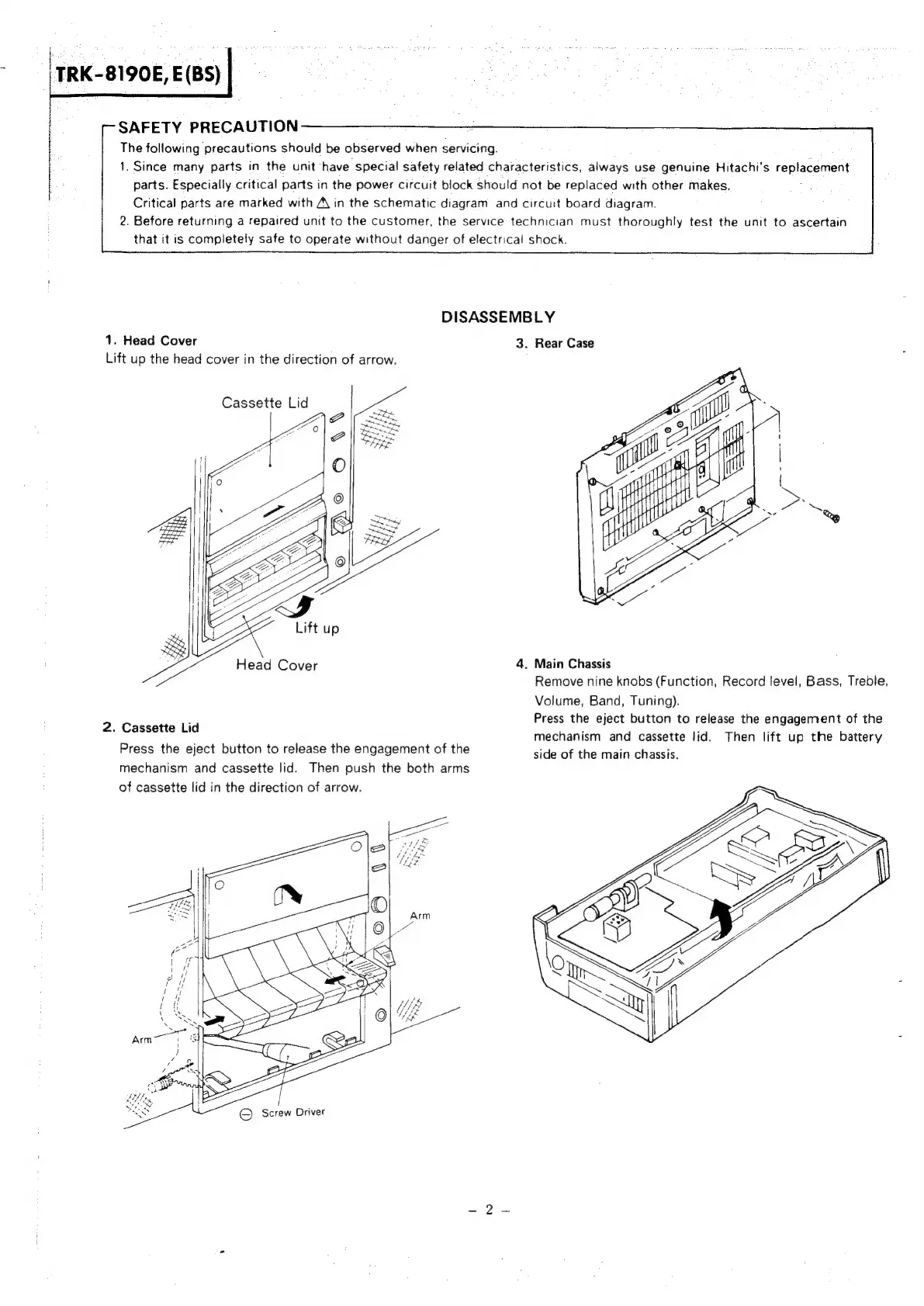

DISASSEMBLY
1.
Head
Cover
3.
Rear
Case
Lift
up
the
head
cover
in
the
direction
of
arrow.
Cassette Lid
4. Main Chassis
Remove nine knobs (Function, Record level, Bass, Treble,
Pe Head Cover
Volume, Band, Tuning).
Press the eject button to release the engagement of the
2; Cassone Ge mechanism and cassette lid. Then lift up the battery
Press the eject button to release the engagement of the sidde-o% the niaih chassis-
mechanism and cassette lid. Then push the both arms
of cassette lid in the direction of arrow.
© Screw Driver
