Hitachi VT-FX440E - Electrical Adjustment Instructions; Test Equipment Required; Head Switching Position Adjustment

5-3
5-3 ELECTRICAL ADJUSTMENT INSTRUCTIONS
General Note: "PCB" is an abbreviation for
"Circuit Board Assembly."
NOTE:
1.Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to do these adjustments only after
all repairs and replacements have been com-
pleted. Also, do not attempt these adjustments
unless the proper equipment is available.
2.To perform these alignment / confirmation proce-
dures, make sure that the tracking control is set in
the center position: Press either "CHANNEL L5??" or
"CHANNEL K" button on the front panel first, then
the "PLAY" button on the front panel.
5-3-1 Test Equipment Required
1.Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div.,
F-Range: DC~AC-20MHz
2.Alignment Tape (MH-2)
5-3-2 Head Switching Position
Adjustment
Purpose:
To determine the Head Switching position during
playback.
Symptom of Misadjustment:
May cause Head Switching noise or vertical jitter
in the picture.
Reference Notes:
Playback the Alignment tape and adjust VR501 so
that the V-sync front edge of the CH1 video output
waveform is at the 6.5H±1H(412.7µs±63.5µs) delayed
position from the rising edge of the CH2 head switch-
ing pulse waveform.
Test point Adj.Point Mode Input Mode Input
J23(V-OUT)
TP502(RF-SW)
GND
VR501
(Switching Point)
(MAIN PCB)
PLAY
(SP)
-----
Tape
Measurement
Equipment
MH-2 Oscilloscope
6.5H±1H
(412.7µs±63.5µs)

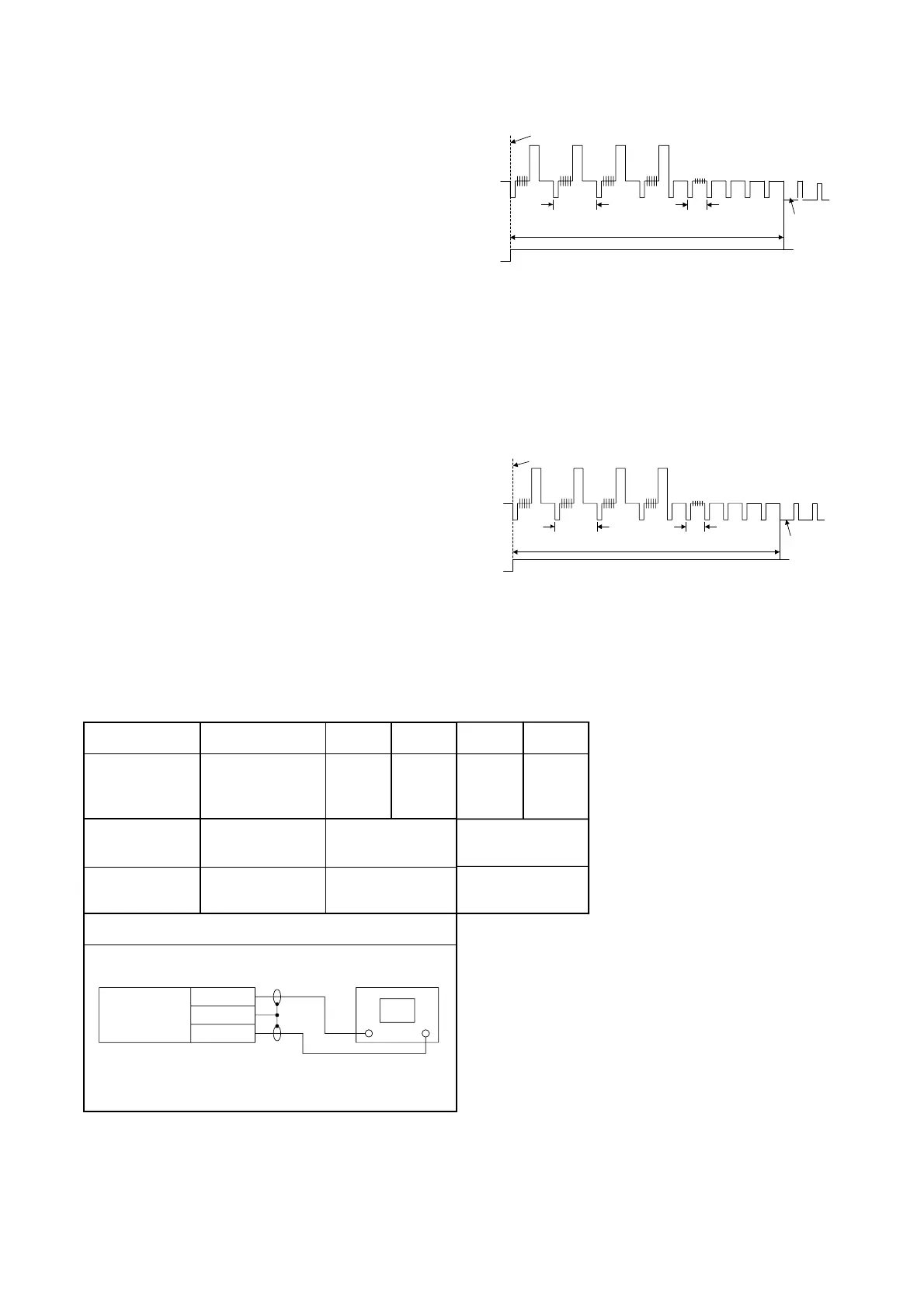

Connection of Measurement Equipment
Oscilloscope
Main PCB
J23
CH1 CH2
Trig. (+)
GND
TP502
EXT. Syncronise Trigger Point
1.0H
CH1
CH2
Switching Pulse
V-Sync
0.5H
6.5H±1H (412.7µs±63.5µs)
EXT. Syncronise Trigger Point
1.0H
CH1
CH2
Switching Pulse
6.5H+/-1H (416µs+/-64µs)
V-Sync
0.5H
VT-FX540E(UK)
VT-FX440E(UK) / VT-MX410E(UK)
Spec
Spec
VT-FX440/MX410 VT-FX540
6.5H±1H
(416µs±64µs)
Playback the Alignment tape and adjust VR501 so
that the V-sync front edge of the CH1 video output
PLAY
(SP)
-----
waveform is at the 6.5H±1H(416µs±64µs) delayed
position from the rising edge of the CH2 head switch-
ing pulse waveform.
