Hitachi VTFX240EUK - Description of Controls; Front Panel; Indicator; Rear Panel

4
EN
678910
12435

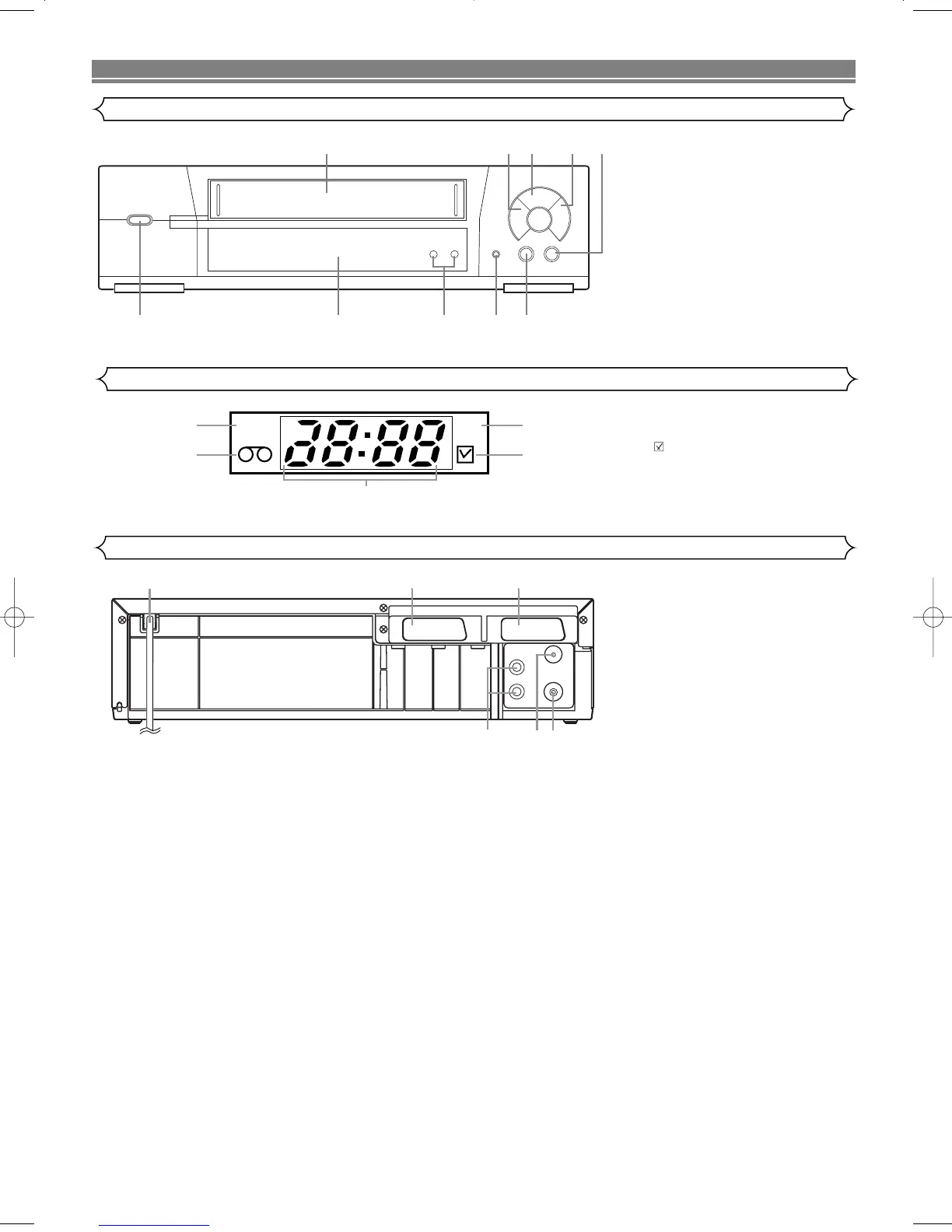

1. Cassette compartment
2. E (REW) button
3. B (PLAY) button
4. D (F.FWD) button
5.
C/A (STOP/EJECT) button
6. k (PAUSE) button
7. REC button
8. CHANNEL (o/p) [TRACKING]
buttons
9. Indicator (See below)
10.y (STANDBY) button
11. PWR. (Power) indicator
12. TAPE IN indicator
13. REC indicator
14. (Timer) indicator
15. CLOCK indicator
PWR. REC
11
12
15
13
14
16. Power cord
17. AV2 (DECODER) socket
18. AV1 (TV) socket
19. RF OUT socket
20. AERIAL socket
21. AUDIO OUTPUT L/R jacks
Indicator
Rear Panel
RF OUT
AERIAL
AV2(DECODER) AV1(TV)
L
R
AUDIO
OUTPUT
1817
192021
16
DESCRIPTION OF CONTROLS
Front Panel
