CONNECTING THE VCR
Disconnect the TV’s power cord from the AC outlet.
Disconnect the VHF/UHF TV aerial coaxial cable from the
TV.
Connect the VHF/UHF TV aerial coaxial cable to the
VCR.
Connect the VCR to the TV using the coaxial cable.
Plug the Power cords of the VCR and TV into the AC
outlets.
5
4
3
2
1

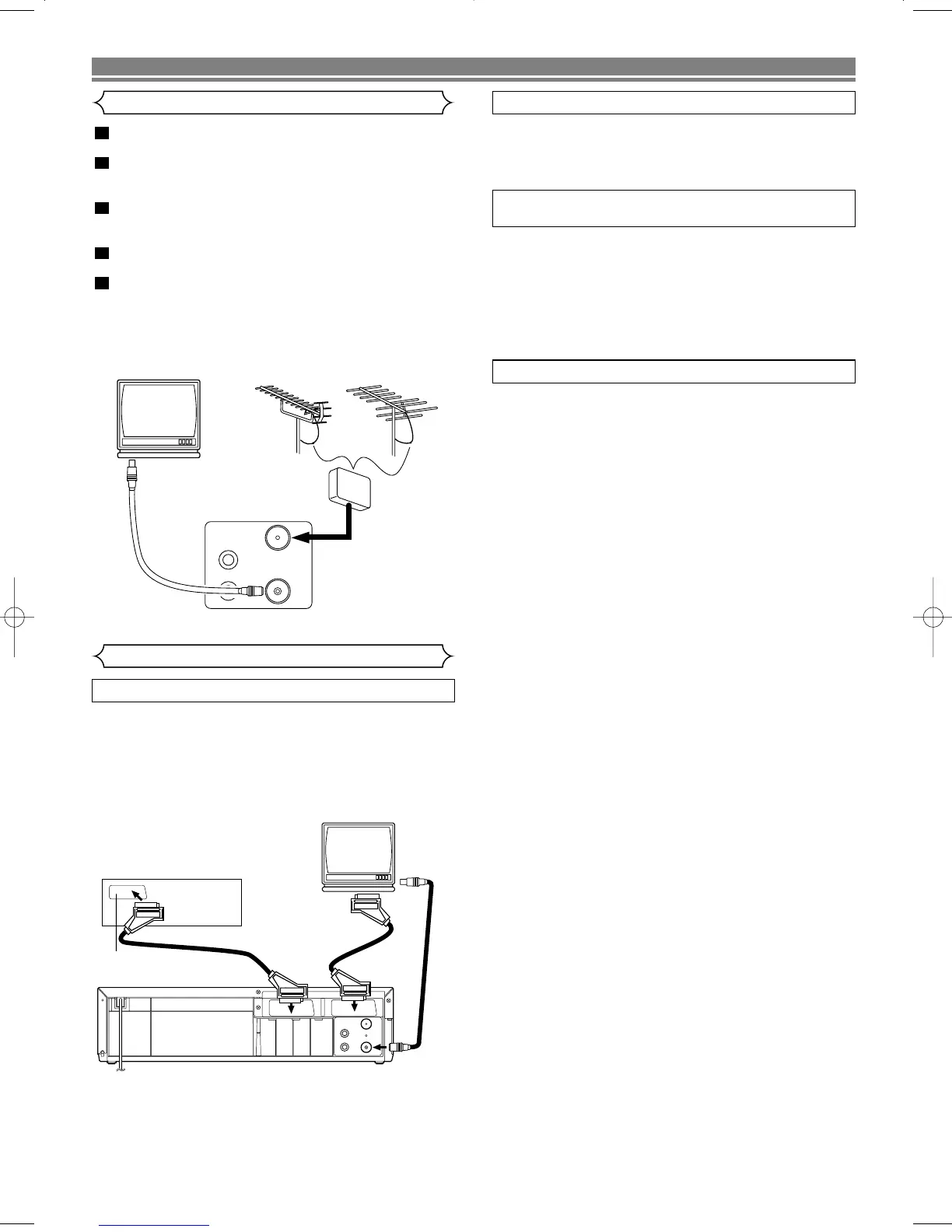

VCR to TV Connection
L
R
AUDIO
OUTPUT
RF OUT
AERIAL
VHF/UHF
MIXER
to AERIAL
to RF OUT
(Back of the unit)
to aerial socket
(TV)
UHF
VHF
RF OUT
AV2 (DECODER) AV1 (TV)
AERIAL
to 21-Pin
to 21-Pin Scart Jack
Decoder (Not supplied)
(TV)
to RF OUT
to aerial
socket
Scart Jack
L
R
AUDIO
OUTPUT
Other Connections
Your VCR is provided with two Scart sockets which you may
connect to other external devices with Scart sockets. We
recommended this connection to ensure a better audio and
picture quality.
NICAM stereo sound is only achieved when using a SCART
lead.
If your TV has Scart sockets, you may connect your VCR’s
AV1 (TV) scart socket to the Scart socket on the back of
your TV. Please see the instruction manual for your TV.
The second Scart socket AV2 (DECODER) is designated for
other external devices, e.g. decoder, another VCR, video
camera and so on.
NOTE:
• If you want to connect a TV with Scart socket to your VCR,
the TV must be connected to the VCR through AV1 (TV). A
connection to AV2 (DECODER) will not function correctly.
To receive the signal from an external input (decoder, video
camera, another VCR etc.), connect to the AV2 (DECODER)
socket, and press CHANNEL o/p or enter “002” with NUM-
BER to appear “AV2” on the TV screen.
If you use the AV1 (TV) socket, press CHANNEL o/p or en-
ter “001” with NUMBER to appear “AV1” on the TV screen.
EURO SCART (AV) SOCKETS
AV1 (TV) CONNECTION TO TV
AV2 (DECODER) CONNECTION FOR OTHER
EXTERNAL DEVICES
EXTERNAL INPUT MODE
Euro Scart cables are obtainable at your dealer.
