8 UNIT CONTROLLER
The new unit controller for YUTAKI series (PC-ARFHE) is an user-friendly remote control which ensures a strong and safe
communication through H-LINK.

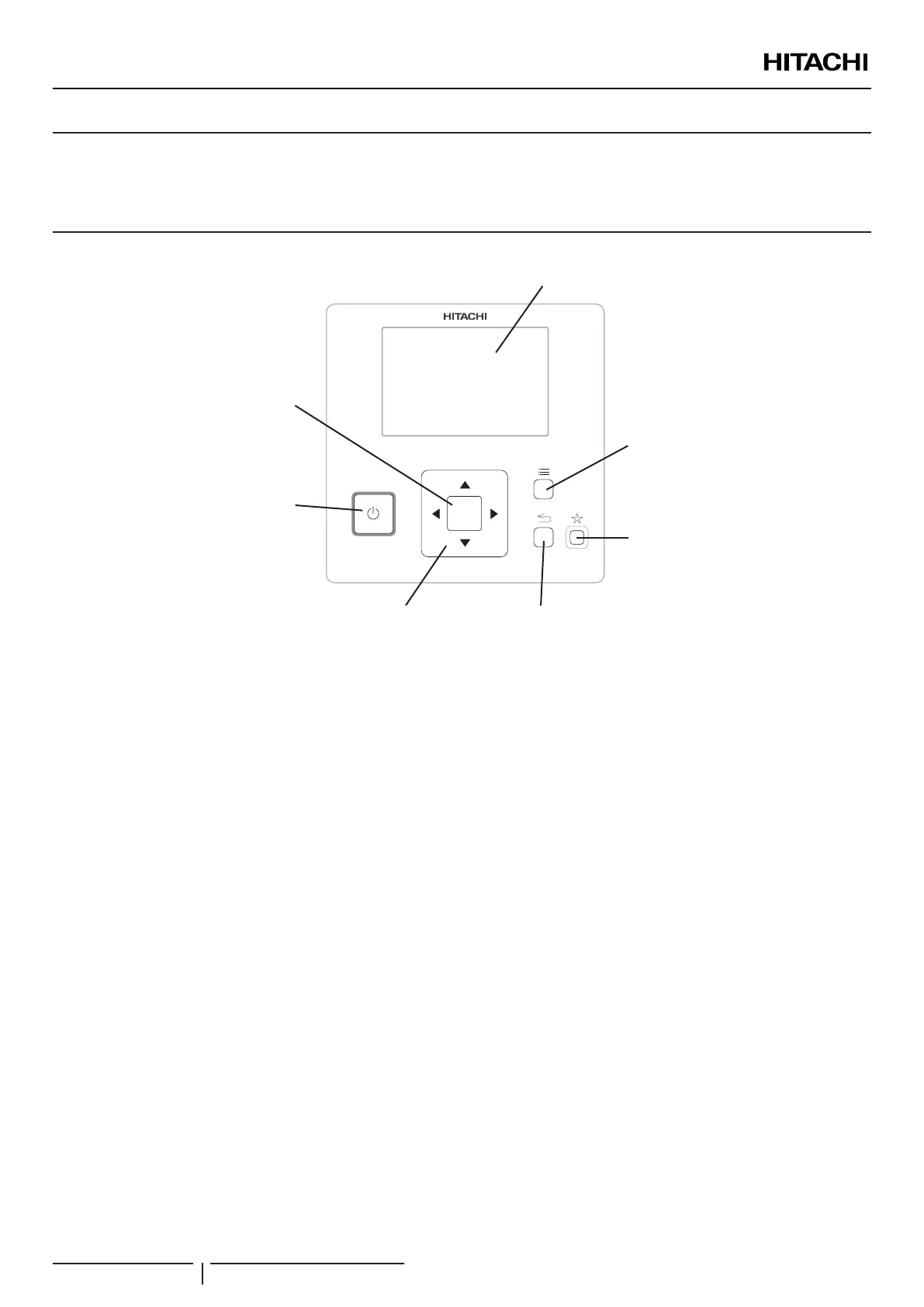

8.1 DEFINITION OF THE SWITCHES
OK
Liquid Crystal Display
Screen where controller software is displayed.
OK button
To select the variables to be edited and to conrm the selected values.
Arrows key
It helps the user to move through the menus and views.
Run/Stop button
It works for all zones if none of the zones is selected or only for one zone when that zone is selected.
Menu button
It shows the different conguration options of the user controller.
Return button
To return to the previous screen.
Favourite button
When this button is pressed, the selected favourite action (ECO/Comfort, Holiday, Simple timer or DHW boost) is directly
executed.
UNIT CONTROLLER
PMML0335A rev.1 - 04/2016
