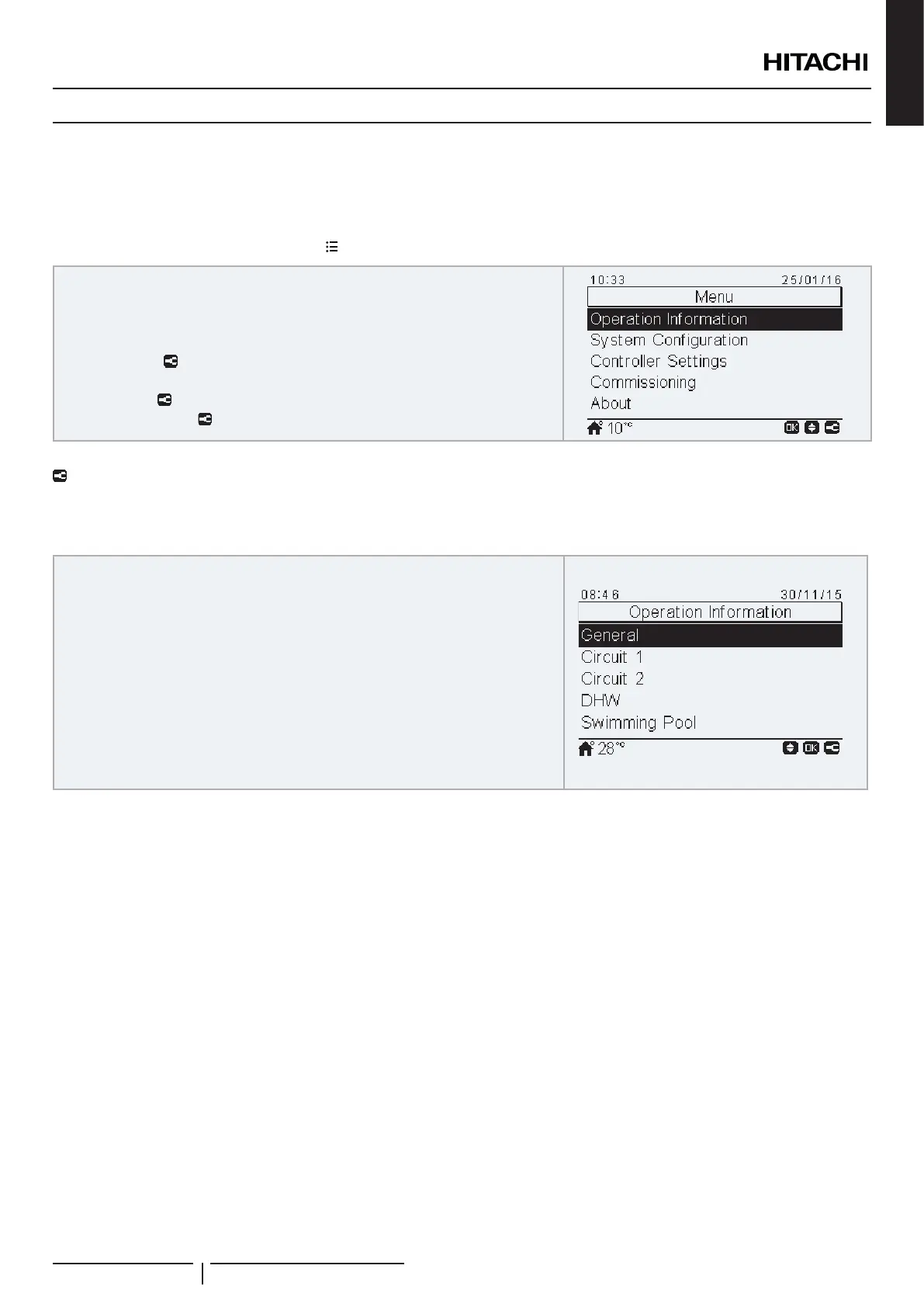

8.6 MENU NAVIGATION
? NOTE
This chapter explains navigation through the menus of the controller. For more specic information about particular options in these menus, refer to the
chapters Control system and Optional functions at the Service Manual.
In order to access to the main menu, press “ ” the button.
The main menu contains the following features:
• Operation information
• System conguration
• Controller settings
• Commisioning
• About
• Factory reset
• Return to user mode
: Available only for installer.
8.6.1 Operation information
In this sub-menu, the current information about the performance of the unit is displayed.
“Operation information” contains the following features:
• General
• Circuit 1 (*1)
• Circuit 2 (*2)
• DHW (*3)
• Swimming Pool (*4)
• Heat Pump
• Electrical Heater (*5)
• Boiler Combination (*6)
• Solar Combination (*7)
• Alarm History
• Energy Data (*8)
? NOTE
• (*1):If Water calculation mode for circuit 1 heating (C1WC) or Water calculation mode for circuit 1 cooling (CC1WC) not “Disabled”.
• (*2): If Water calculation mode for circuit 2 heating (C2WC) or Water calculation mode for circuit 2 cooling (CC2WC) not “Disabled”.
• (*3): If Status (DHWs)= “Enabled”.
• (*4): If Status (SWP)= “Enabled”.
• (*5): If Heating source (HES)= “HP+EH” or “HP+EH+Bo.”.
• (*6): If Heating source (HES)= “HP+Boiler” or “HP+EH+Bo.”.
• (*7): If Solar combination (SOLStSet)= “Input demand” or “Total”.
• (*8): If (Status (PMConf)= “Enabled” or Capacity conguration (CAPCo.)= “Enabled”) and the Controller type (LCDM) = “Unit” or “Unit + Room” in
the wizard conguration.
UNIT CONTROLLER
PMML0335A rev.1 - 04/2016
131
