OPTIONAL ATTACHMENTS AND DEVICES
13-93
METRIC MEASURE
ZX280LC-3 2-piece boom, Arm 3.76 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 5820 * 5820 * 5710 * 5710 * 4.54
9.0 5420 * 5420 * 4490 * 4490 * 6.69
7.5 5300 * 5300 * 4580 * 4580 * 4010 * 4010 * 8.00
6.0 6120 * 6120 * 5420 * 5420 * 4610 * 4610 * 3620 * 3620 * 8.87
4.5 7700 * 7700 * 7550 * 7550 * 5850 * 5850 * 4790 * 4790 * 4100 * 4100 * 3430 * 3430 * 9.42
3.0 15390 * 15390 * 18590 * 18590 * 9750 * 9750 * 6630 * 6630 * 5130 * 5130 * 4280 * 4170 3370 * 3370 * 9.71
1.5 11420 * 11420 * 18660 * 18660 * 13930 * 11400 7780 * 7430 5620 * 5400 4520 * 4060 3420 * 3420 * 9.75
0 11990 * 11990 * 20660 * 20660 * 14580 * 11590 9140 * 7570 6180 * 5300 4790 * 3930 3600 * 3570 9.56
-1.5 15210 * 15210 * 22620 * 21530 14600 * 11000 10430 * 7230 6740 * 5120 4400 * 3860 3950 * 3790 9.11
-3.0 18770 * 18770 * 23160 * 21170 14870 * 10730 10700 * 6960 7180 * 4990 4570 * 4290 8.38
-4.5 21110 * 21110 * 21920 * 21360 13750 * 10600 9030 * 6880 5580 * 5490 7.08
NOTE: When the lifting hook is used, the maximum allowable lifting load is 10 tons.

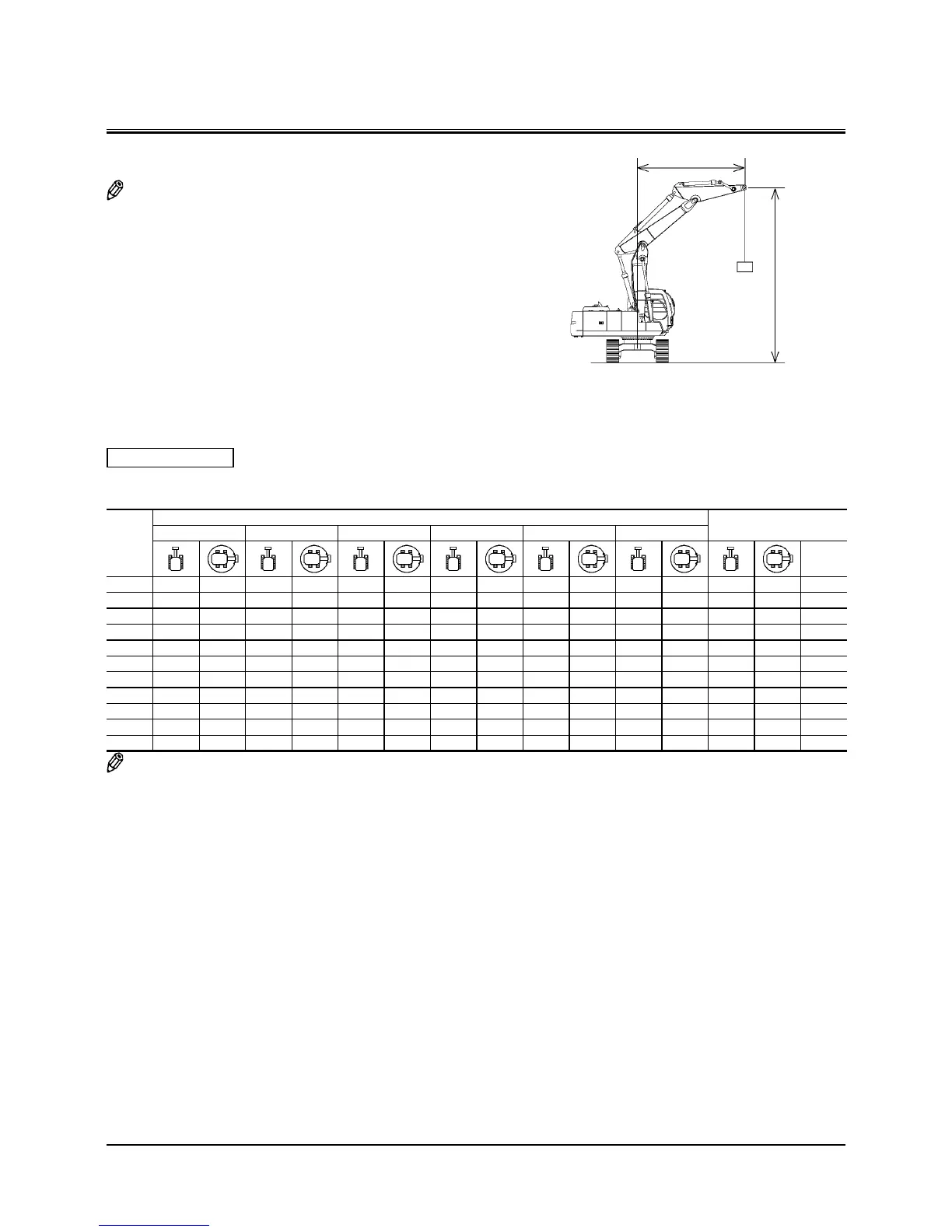

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
