OPTIONAL ATTACHMENTS AND DEVICES
13-94
METRIC MEASURE
ZX280LCN-3 2-piece boom, Arm 2.42 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
9.0 7600 * 7600 * 4.65
7.5 5680 * 5680 * 6.41
6.0 10270 * 10270 * 4930 * 4930 * 7.47
4.5 14010 * 14010 * 9660 * 9660 * 4590 * 4420 8.12
3.0 17660 * 17660 * 13700 * 10640 7850 * 7050 * 4490 * 4070 8.45
1.5 20300 * 19810 14720 * 10730 9150 * 7060 6100 * 4740 4580 * 3960 8.50
0 14100 * 14100 * 22820 * 19020 14760 * 10130 10450 * 6730 6900 * 4680 4870 * 4060 8.28
-1.5 21280 * 21280 * 23320 * 18730 14970 * 9830 10860 * 6440 6490 * 4630 5470 * 4440 7.76
-3.0 28680 * 28680 * 22250 * 18870 14250 * 9710 9260 * 6350 5970 * 5350 6.83
ZX280LCN-3 2-piece boom, Arm 3.11 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 8490 * 8490 * 8410 * 8410 * 3.03
9.0 7040 * 7040 * 5800 * 5800 * 5.79
7.5 6740 * 6740 * 5730 * 5730 * 4690 * 4690 * 7.27
6.0 7220 * 7220 * 5840 * 5840 * 4980 * 4980 * 4170 * 4170 * 8.22
4.5 13710 * 13710 * 8460 * 8460 * 6320 * 6320 * 5130 * 5130 * 3920 * 3910 8.81
3.0 14810 * 14810 * 17730 * 17730 * 11390 * 10670 * 7200 * 7040 5480 * 5130 4230 * 3710 3840 * 3620 9.12
1.5 19260 * 19260 * 14570 * 10440 8440 * 7200 5980 * 5010 4500 * 3640 3910 * 3530 9.16
0 12260 * 12260 * 21690 * 19410 14650 * 10310 9800 * 6820 6530 * 4800 4130 * 3600 8.96
-1.5 16950 * 16950 * 23070 * 18790 14750 * 9870 10760 * 6530 7060 * 4630 4570 * 3870 8.48
-3.0 21690 * 21690 * 23030 * 18690 14960 * 9730 10500 * 6310 6460 * 4610 5390 * 4480 7.68
-4.5 24450 * 24450 * 19470 * 18950 11960 * 9670 7070 * 6590 5.87
NOTE: When the lifting hook is used, the maximum allowable lifting load is 10 tons.

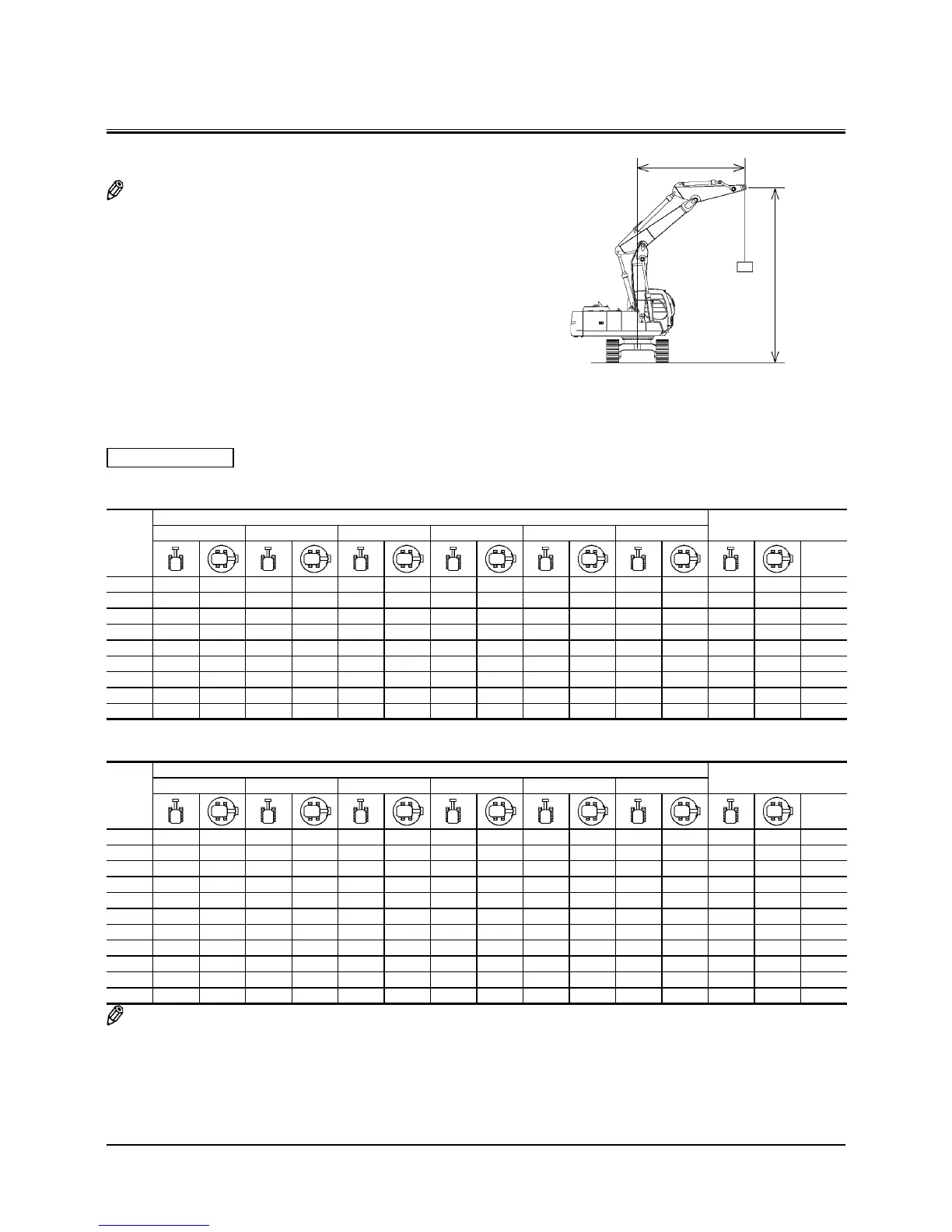

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
