OPTIONAL ATTACHMENTS AND DEVICES
13-95
METRIC MEASURE
ZX280LCN-3 2-piece boom, Arm 3.76 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 5820 * 5820 * 5710 * 5710 * 4.54
9.0 5420 * 5420 * 4490 * 4490 * 6.69
7.5 5300 * 5300 * 4580 * 4580 * 4010 * 4010 * 8.00
6.0 6210 * 6210 * 5420 * 5420 * 4610 * 4610 * 3620 * 3620 * 8.87
4.5 7700 * 7700 * 7550 * 7550 * 5850 * 5850 * 4790 * 4790 * 4100 * 3890 3430 * 3430 * 9.42
3.0 15390 * 15390 * 18590 * 18590 * 9750 * 9750 * 6630 * 6630 * 5130 * 5110 4280 * 3830 3370 * 3290 9.71
1.5 11420 * 11420 * 18660 * 18660 * 13930 * 10480 7780 * 7140 * 5620 * 5020 4520 * 3710 3420 * 3200 9.75
0 11990 * 11990 * 20660 * 19640 14580 * 10520 9140 * 6930 6180 * 4900 4790 * 3590 3600 * 3250 9.56
-1.5 15210 * 15210 * 22620 * 18940 14600 * 9950 10430 * 6600 6740 * 4670 4400 * 3510 3950 * 3460 9.11
-3.0 18770 * 18770 * 23160 * 18600 14870 * 9690 10700 * 6330 7180 * 4540 4570 * 3910 8.38
-4.5 21110 * 21110 * 21920 * 18780 13750 * 9560 9030 * 6250 5580 * 5000 7.08
NOTE: When the lifting hook is used, the maximum allowable lifting load is 10 tons.

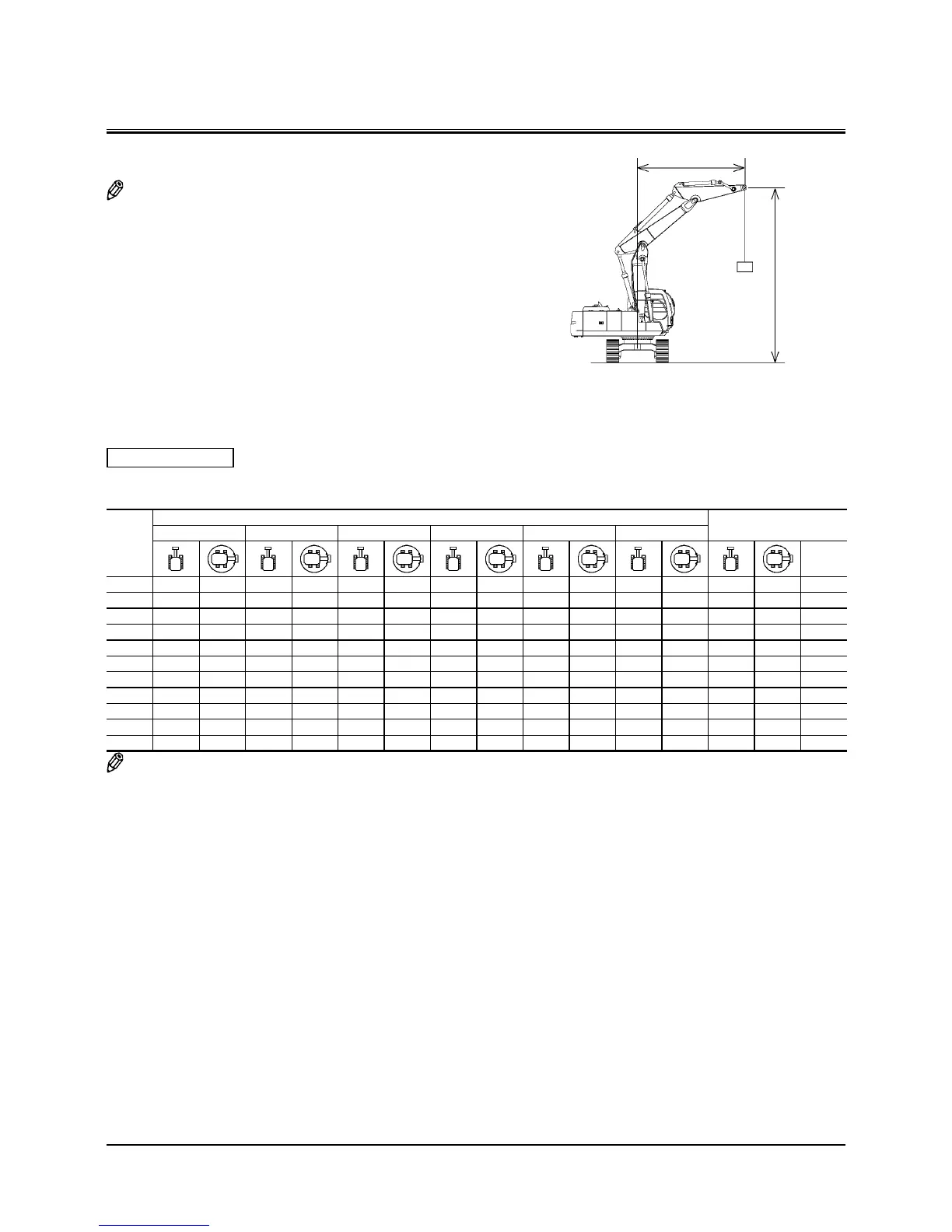

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
