MAINTENANCE
7-92
Clean Fresh Air Filter
--- every 500 hours
Replace Fresh Air Filter
--- After cleaning 6 times or so
ZX33U-5A, 38U-5A, 48U-5A, 55U-5A

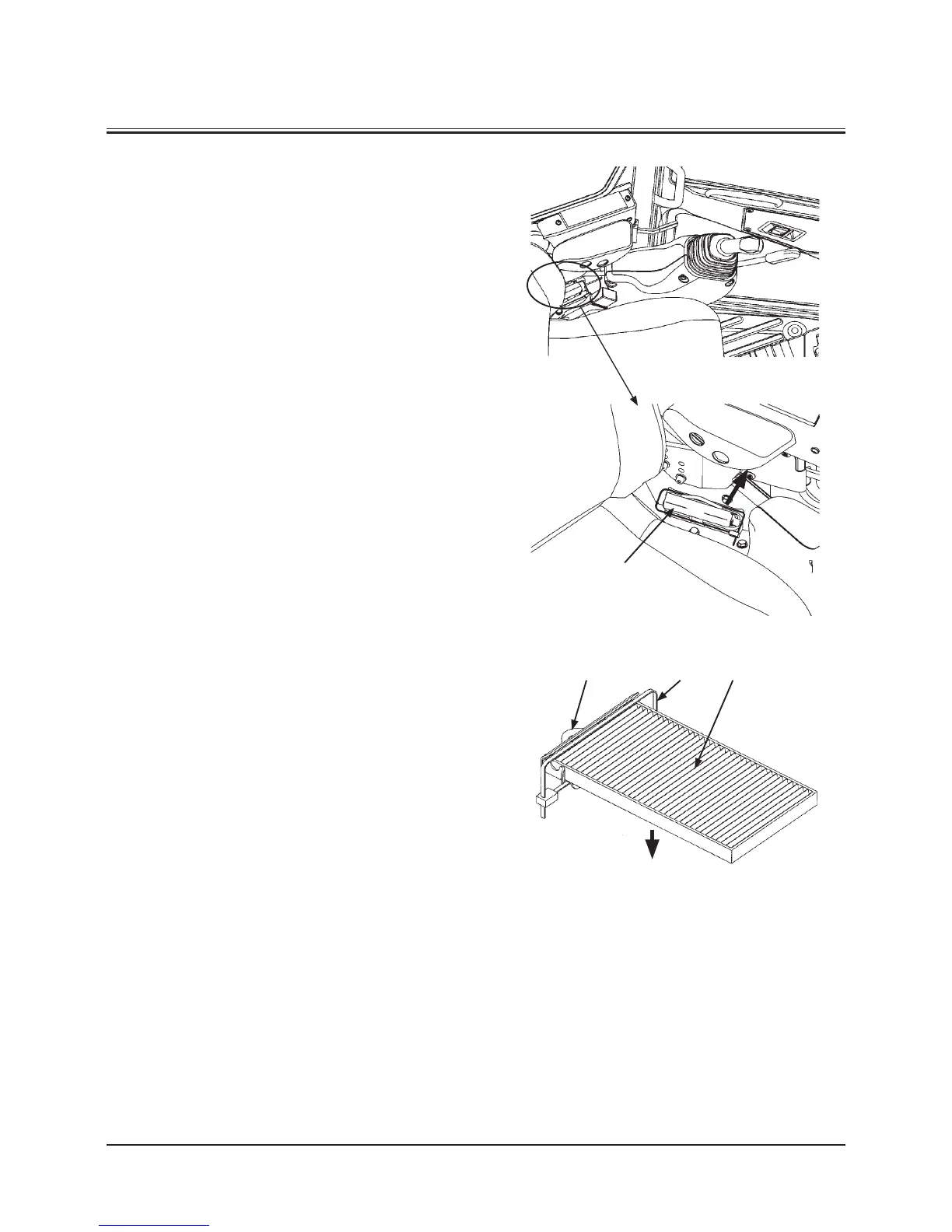

Removing Fresh Air Filter
1. Pulloutfreshairfilter(1)upward,whichislocatedat
bottom left of the seat.
Cleaning
IMPORTANT: Clean filter (3) by using a vacuum cleaner.
Do not clean it by blowing compressed air or washing
with water.
1. Withside"a"offilter(1)facingdownward,lightlytapthe
filter (1) frame to let large dirt drop.
2. Clean side "a" of filter (1) by using a vacuum cleaner.
Installation
IMPORTANT: Inappropriate installation of the filter
may cause dust to enter into the heater unit and
air conditioner, causing malfunction or breakdown
of them. Before installing the filter element, clean
off dust around the mounting area; install the filter
element with extra care.
1. Fresh air filter (1) can be replaced by removing clip band
(2).
2. Installfreshairfilter(1)assemblywhileholdingtab(3)of
cover.
a
1
3 2
a
1
MADB-07-045
MADB-07-042
MADB-07-043
To Next Page
