Maintenance—Every 250 Hours
TX14740,0001FB9 –19–09JAN03–1/1
Check Pump Drive Gearbox Oil Level

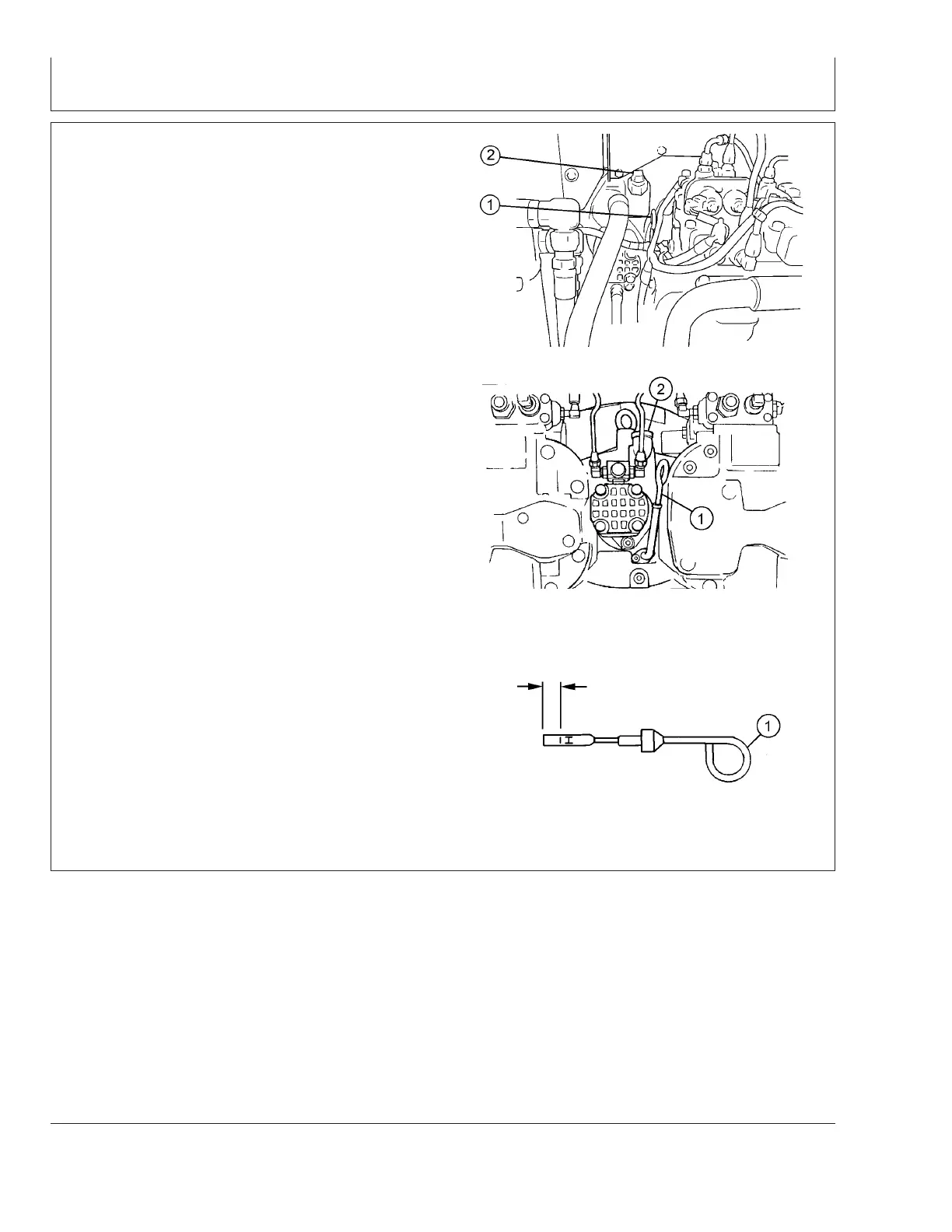

T136452 –UN–18DEC00
Zaxis 200LC, 250
T145091 –UN–31AUG01
Zaxis 350
T145092 –UN–31AUG01
1—Dipstick
2—Filler Cap
1. Remove dipstick (1).
2. Wipe dipstick clean and insert completely into tube.
3. Remove dipstick.
4. Oil must be approximately halfway below the "H"
(level) mark.
To add oil:
1. Remove filler cap (2).
2. Add oil. (See Section 3-1.)
3. Install filler cap.
