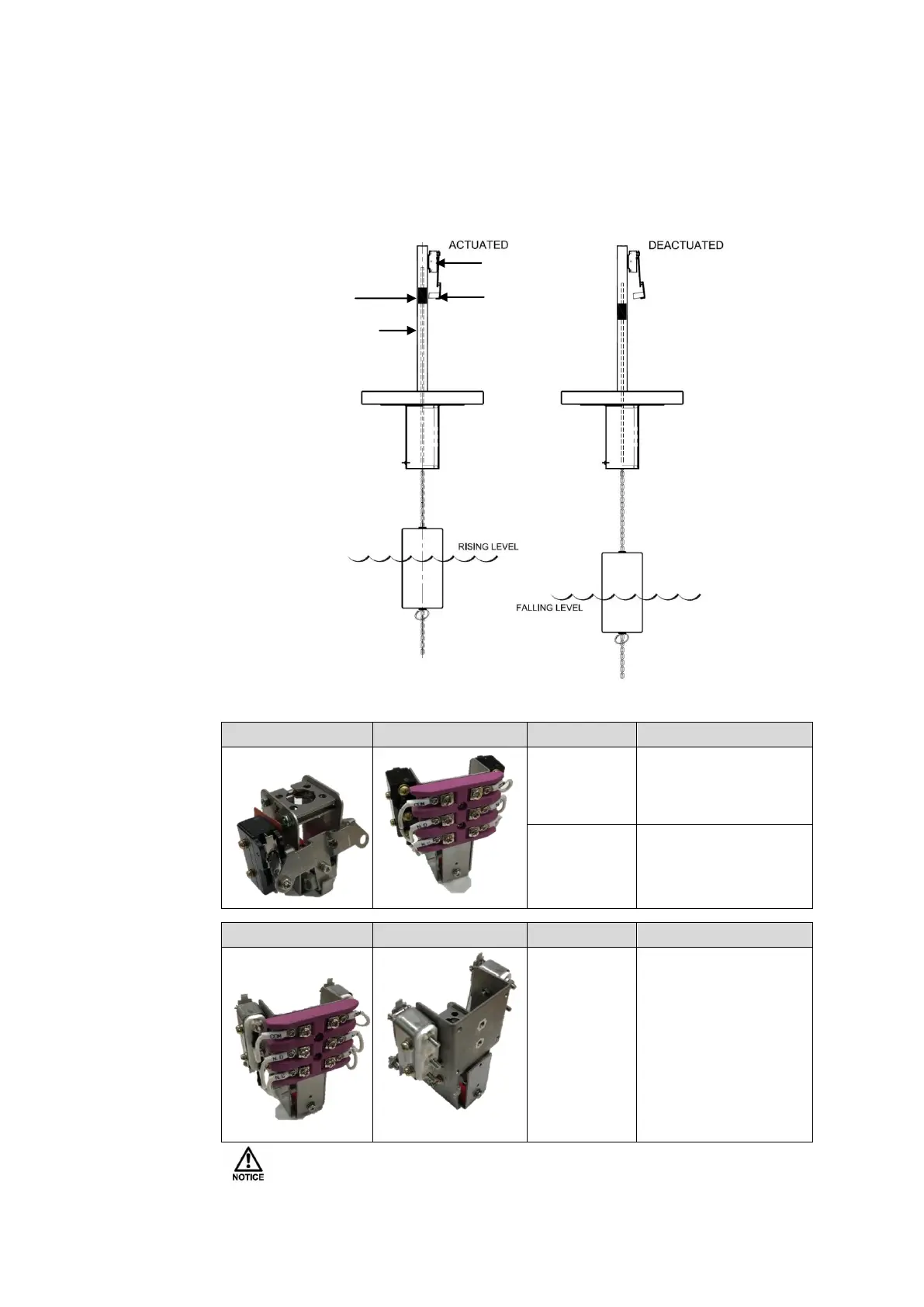

■ Switch Action
The core rises within the enclosing tube because of buoyancy when the level of
measure object rises and the displacer is submerged. The magnet which is connected
with the switch responds to trigger the switch when the core rises.
■ Switch Specifications by Process Temperature
Specifications of Temperature and Contact Form (SPDT, DPDT) are optional.
Switch
Action and
Specification
Std. Type
Opt. Type
Process Temp.
Contact Rating
~ 200˚C
AC 250V, 15A
DC 125V, 0.5A
~ 350˚C
AC 250V, 5A
DC 125V, 0.5A
Std. Type
Opt. Type
Process Temp.
Contact Rating
+ 외부 단자함
~ 500˚C
AC 250V, 1A
DC 125V, 0.4A
Snap switch
Magnet
Core
Enclosing tube

Hitron HM-90 Series Specifications
