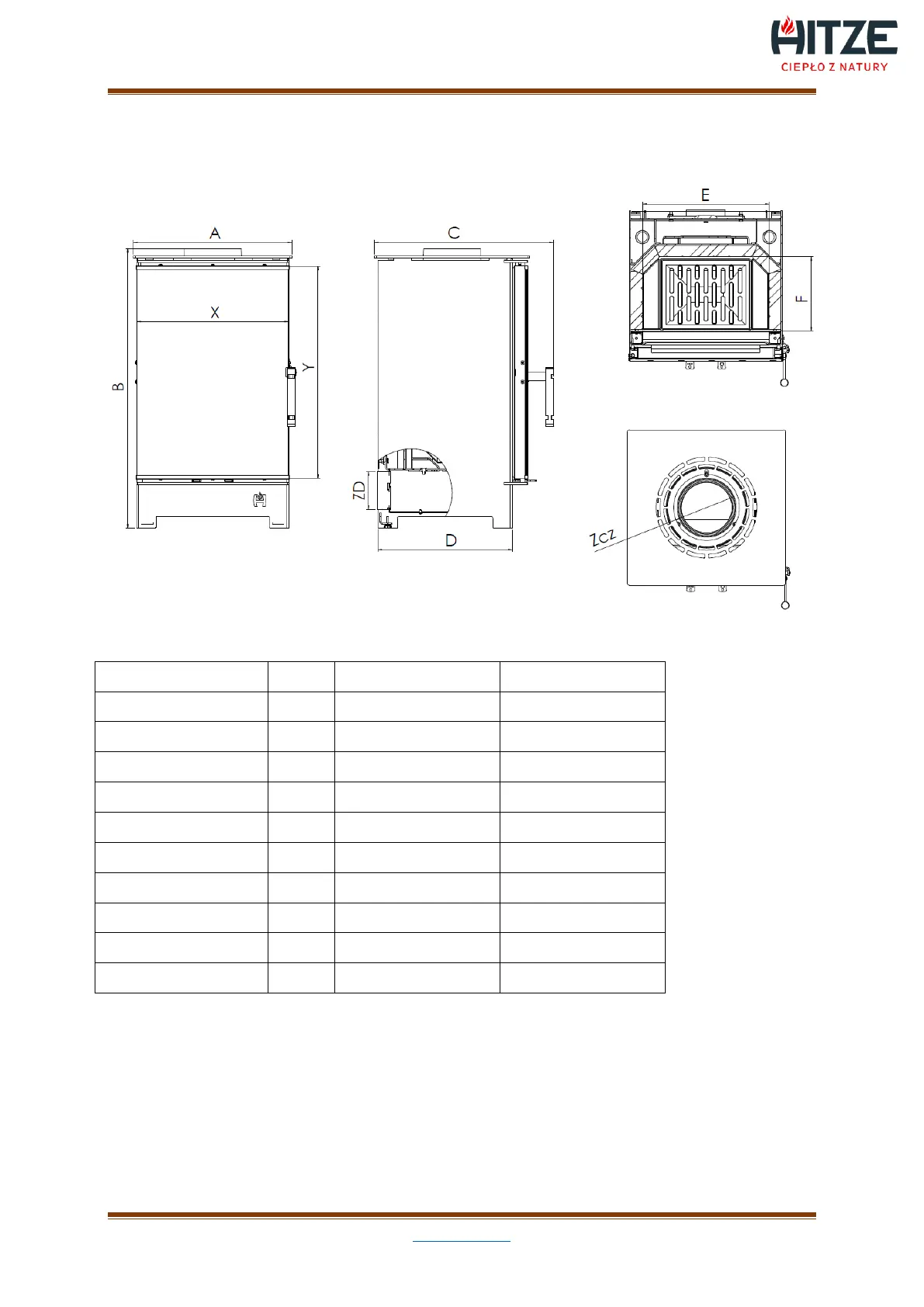

Fig. 2 Freestanding stove dimensions LYNX
Dimensions [mm]
LYNX S
LYNX B
Width
A
407
453
Hight
B
720
760
Total depth
C
465
506
Housing depth
D
346
433
Hearth width
E
326
326
Hearth depth
F
190
190
Diameter air inlet
Zd
100
100
Diameter flue
Zcz
150
150
Glass width
X
390
365
Glass hight
Y
545
515
Tab. 2. Freestanding stove dimensions LYNX
