HITZE LUPO - Structure and Operation of the Freestanding Stove

www.karles.se
7
Technical data:
Parameters
Unit
Lupo S
CANE S
CANE SF
LYNX S
LYNX B
Lupo M
Lupo L
Nominal power
kW
6,5
8,8
11
Heating load range
kW
3-8,5
4,5-11,5
5,5-14
Maximum fuel loading mass
kg
1,5
2
2,5
Average fuel consumption
kg/h
1,9
2,6
3,3
Heating efficiency
%
83,5
83
82
CO emission (at 13% O2)
g/m
3
1,08
1,001
0,921
Dust emission (at 13% O2)
g/m
3
0,038
0,033
0,028
Average flue gas temperature
˚C
239
235
230
Glass dimensions
[mm]
390x540
540x540
880x540
Maximum log lenght/logs diameter
mm
350
400
400
Weight
kg
112
140
194
Fuel type
Recommended seasoned hardwood (beech, birch, hornbeam)
Fuel humidity
Between 12 and 20 %
Tab. 4. Technical data

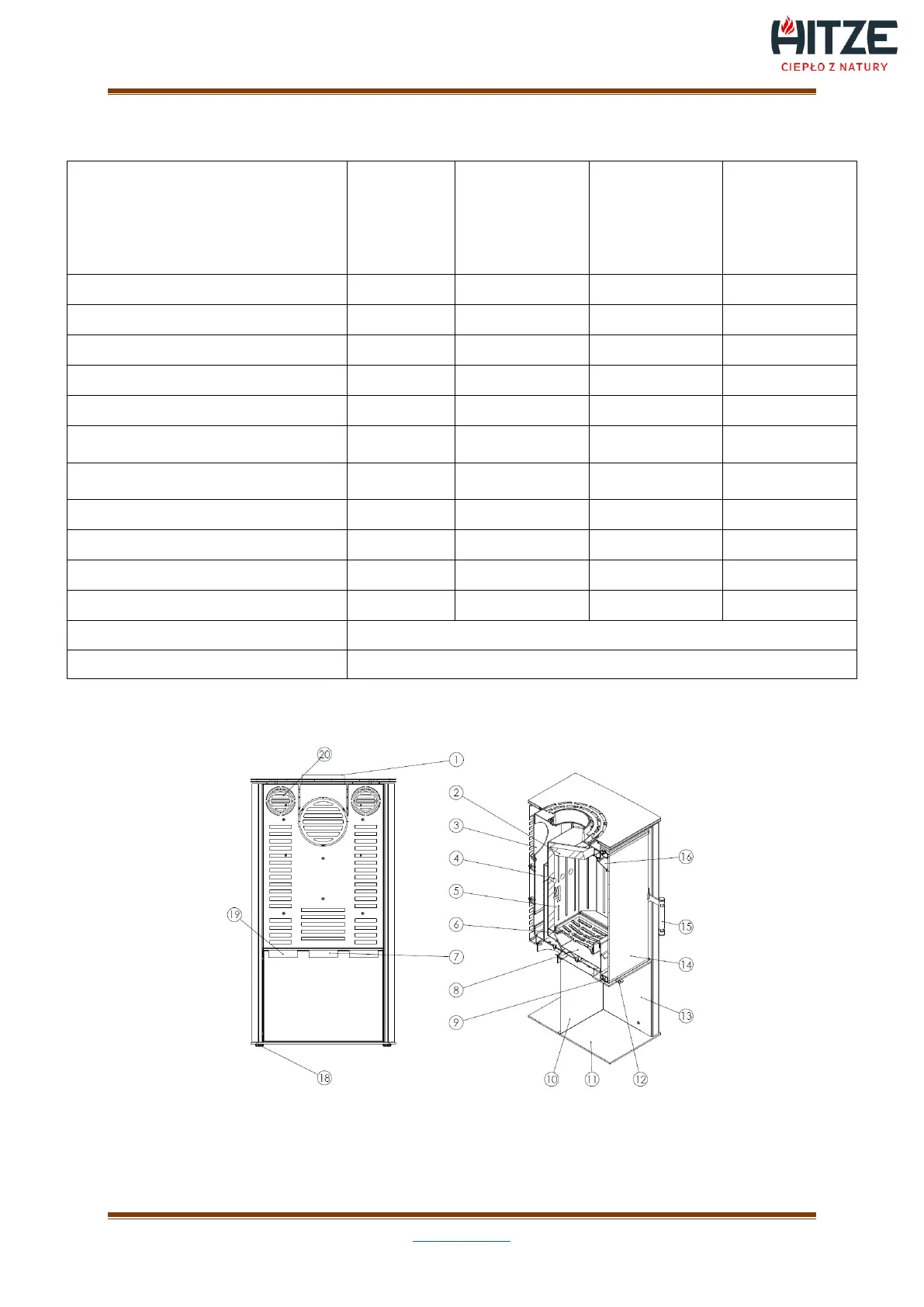

1.6. Structure and operation of the freestanding stove
1. Flue, 2. Deflector, 3. Flue plug, 4. Combustion gases afterburner, 5. AKUCERAM, 6. Grate, 7. Air intake, 8. Ash pan, 9. Door, 10. Back plate,
11. Bottom plate, 12. Secondary air damper, 13. Primary air damper, 14. Side plate, 15. Decor glass, 16. Handle, 17. Air curtain, 18. Legs, 19-
20. Hot air distribution connection.
Fig.4 Freestanding stove construction
