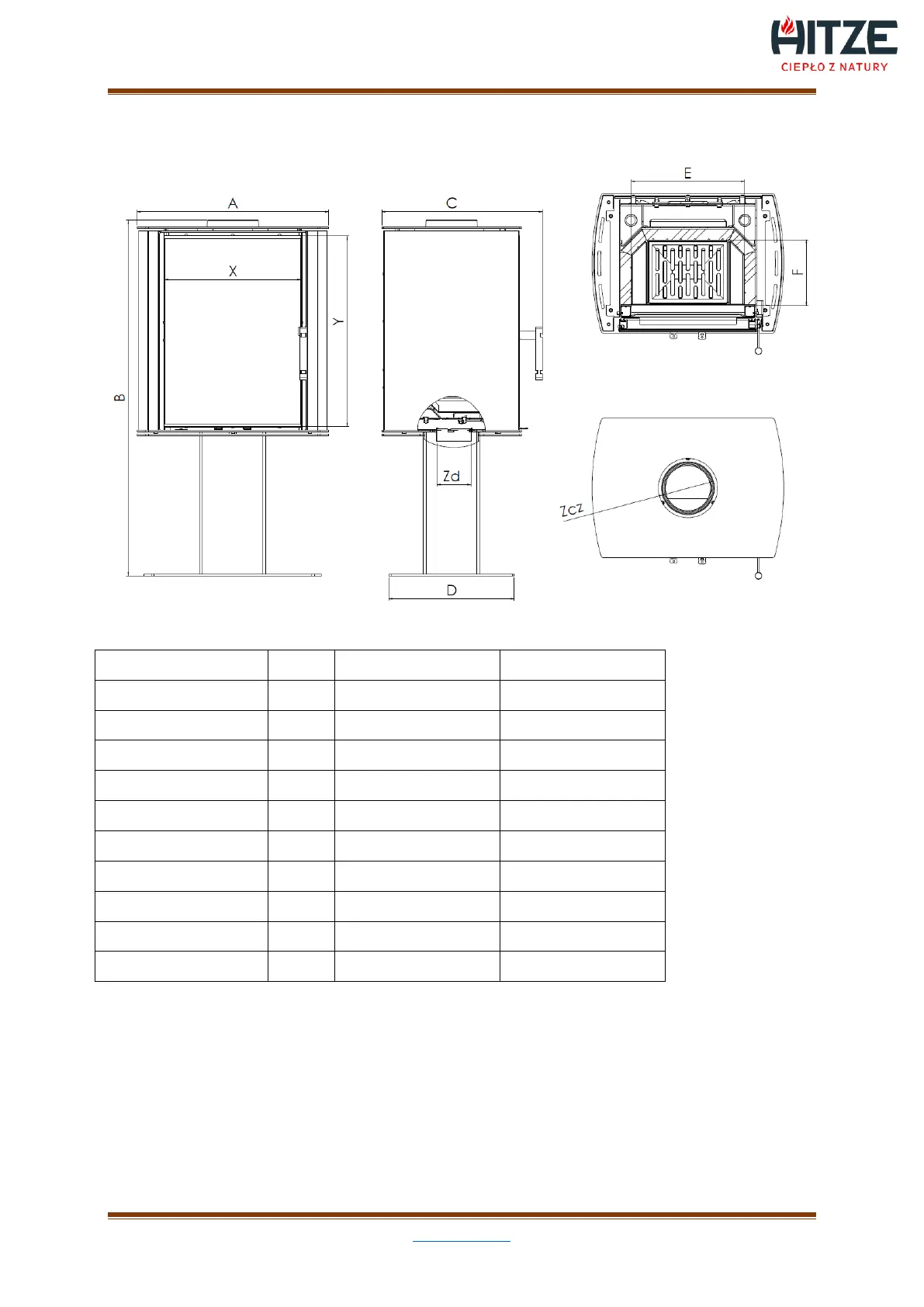

Fig. 3 Freestanding stove dimensions pieca CANE
Dimensions [mm]
CANE S
CANE SF
Width
A
550
550
Hight
B
1020
1020
Total depth
C
465
465
Housing depth
D
400
360
Hearth width
E
326
326
Hearth depth
F
190
190
Diameter air inlet
Zd
100
100
Diameter flue
Zcz
150
150
Glass width
X
390
390
Glass hight
Y
545
545
Tab. 3. Freestanding stove dimensions LYNX
