HITZE SIGA - Troubleshooting

18
▪ Remove the deector holder and ceramic deector from the furnace
▪
▪ W Depending on the connection point, unscrew the 3 M5x10 screws located behind the tubes. key
▪
▪
▪
▪ After unscrewing the screws, we have access to the exhaust pipes.
6. TROUBLESHOOTING
deector
deector holder

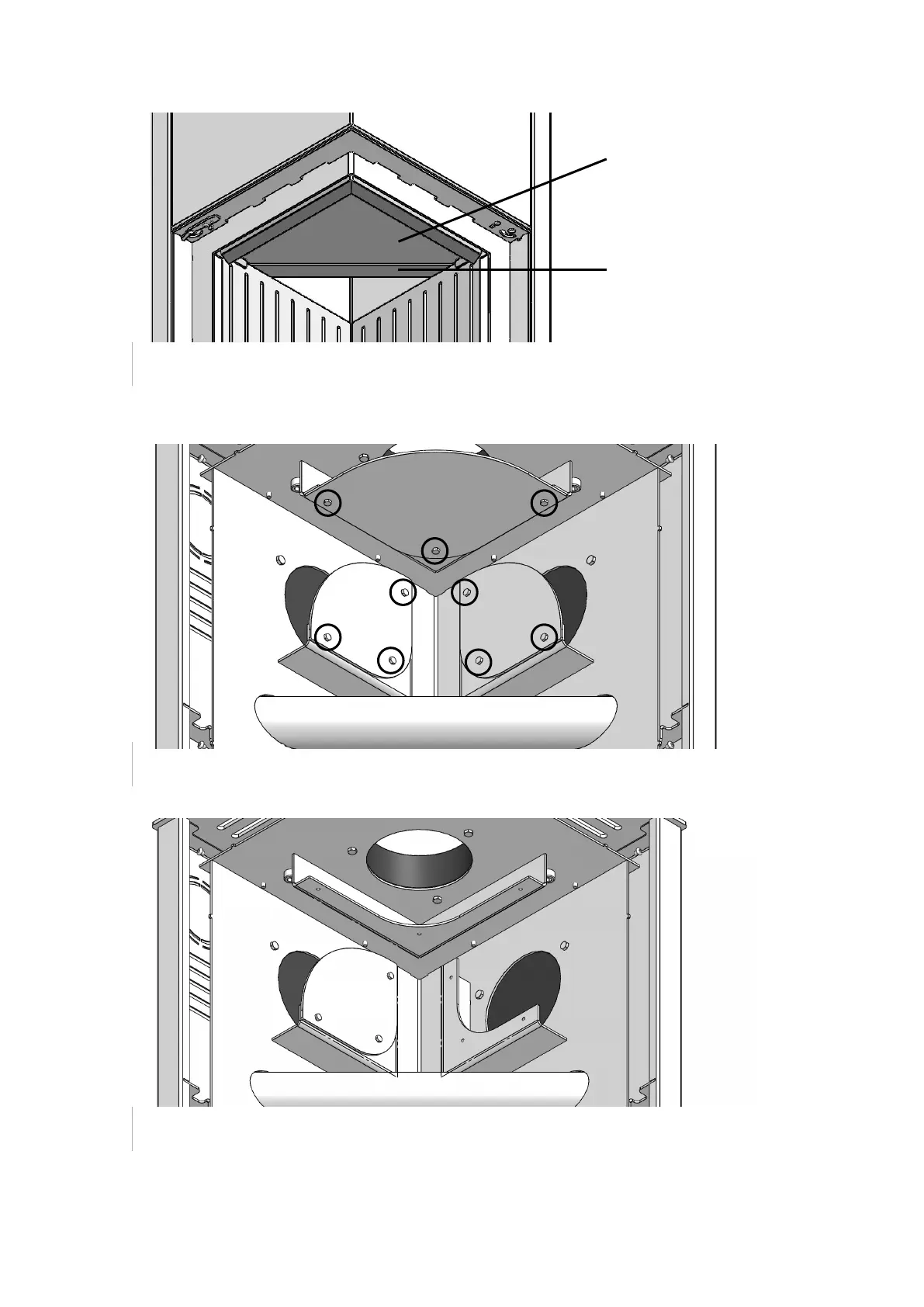

Fig. 9 Instructions for cleaning the chimney - removing the deector
Fig. 10 Chimney cleaning instructions - unscrewing
Fig. 11 Instructions for cleaning the chimney - ue pipes
