1.6. Structure and operation of the stove ue

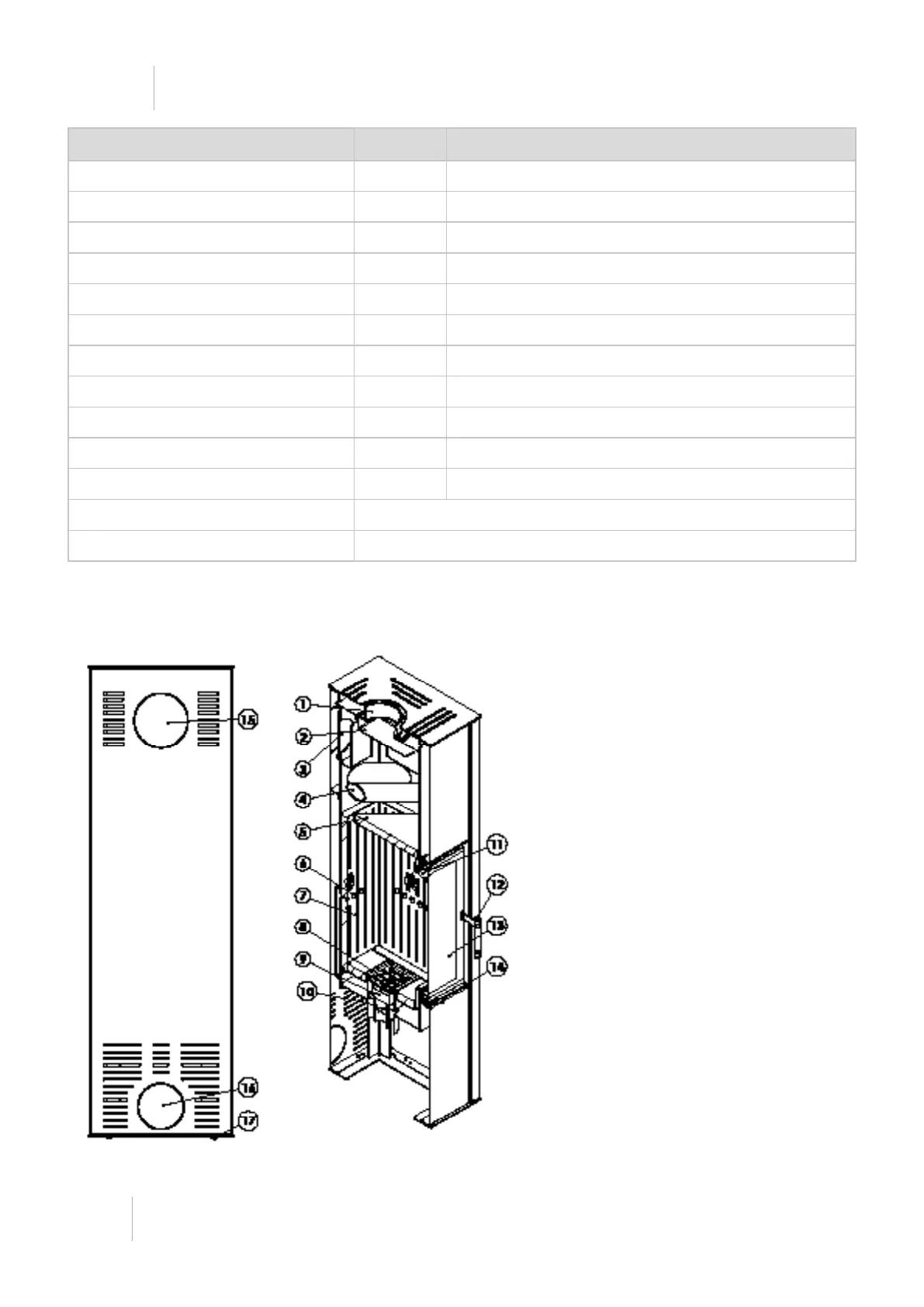

Fig. 2 General structure of the stove
Tab. 1 Technical data
parameter unit SIGA
Nominal power kW 6,5
Heating load range kW 3-8,5
Max. fuel load kg 2
Average fuel consumption kg/h 1,9
Thermal eciency % 84
CO emission (at 13% O2) g/m3 0,948
Dust emission (at 13% O2) g/m3 0,026
Average temperature of fumes ˚C 190
Glass dimensions mm 381x530x381
Max. log lenght mm 300
Weight kg 179
Fuel type recommended seasoned deciduous wood (beech, birch, hornbeam)
Fuel moisture between 12 and 20 %
1. ue
2. steel deector
3. cap
4. radiators (pipes)
5. ceramic deector
6. afterburner
7. combustion chamber with ceramic
lining
8. grate
9. ash pan
10. intake pipes
11. air curtain
12. handle
13. glass pane
14. throttle
15. side outlet cover
16. air intake cover
17. regulated foot
