INITIAL SETUP / INSTALLATION

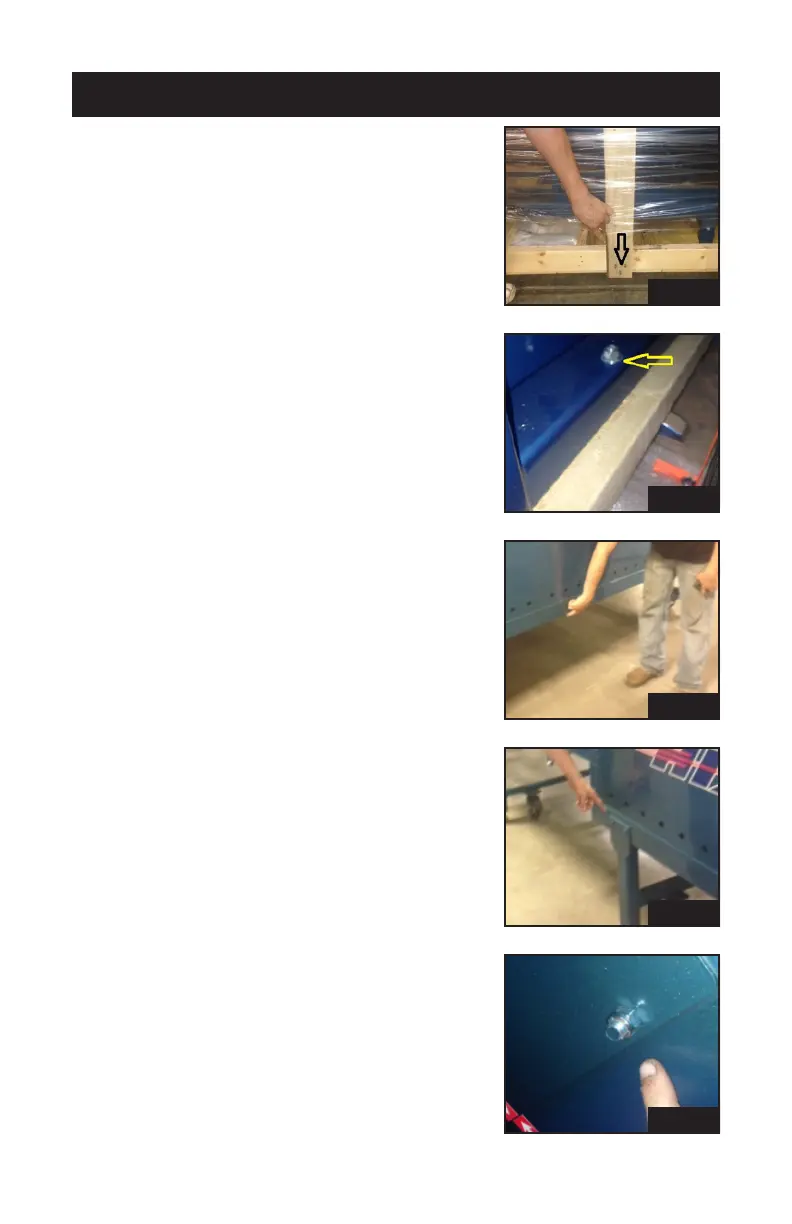

1. Both the oven and cooler crates have du-
plex nails (pic 1) on all four sides which
need to be removed. This allows the top
to be removed at one time (either with
four people or by using a fork lift).
2. The oven section has two 3/8-16 hex
nuts directly under the door openings
(pic 2), which need to be removed.
3. Next, position the forks of the forklift
completely under the side frame rail (pic
3) until they protrude at the other end, ca-
pable of picking up the entire main body
of the oven. Once positioned and well
centered, lift the oven body up and off
the crate base.
4. Remove the legs from the bottom of the
crate and bolt them in the frame holes
(pic 4).
5. The bottom blower motor attaches with
four 3/8” NC locknuts (pic 5a) located in
a packet inside the control box.
