INITIAL SETUP / INSTALLATION

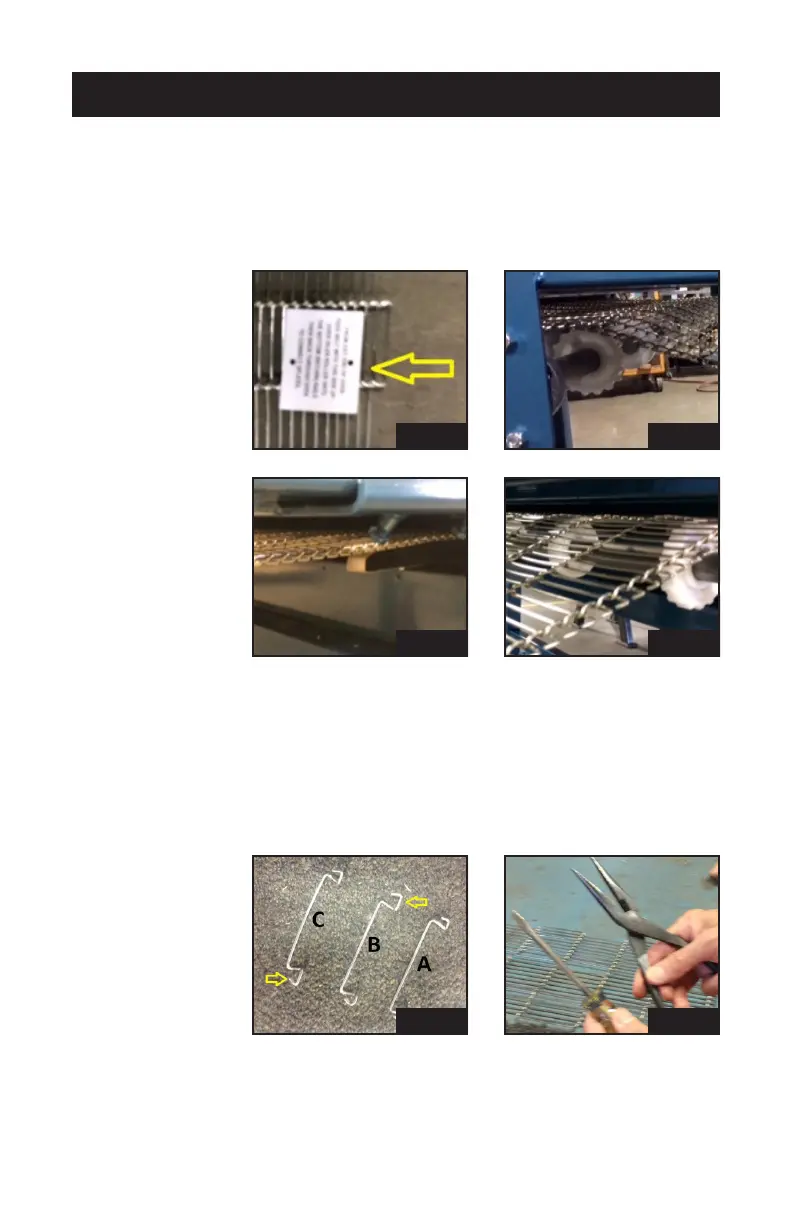

12. To install the belt, place the rolled up belt under the cooler section on

theoor.Thebelt’sfrontis marked(pic 12a).Startfeeding thebelt

throughtheovenbyguidingitrstovertheidlerpulley(s)attheexit

side, then over the bottom rails (pic 12b, c). When arrived at the front

end of the oven, loop the belt up and back through the oven, all the

way back to the exit end.

13. At the exit end, connect the two ends of the belt together with the pro-

vided belt splices. The splices are taped onto the belts edge. An extra

set is in the envelope with the belt.

Attention: there are 3 types of splices (pic 13a): one for the left end

(B), one for the right end (C) - both with one large and one small hook -

and one type for all center splices (A). The larger hook (yellow arrows)

is to be positioned on the outside edge of the belt.
