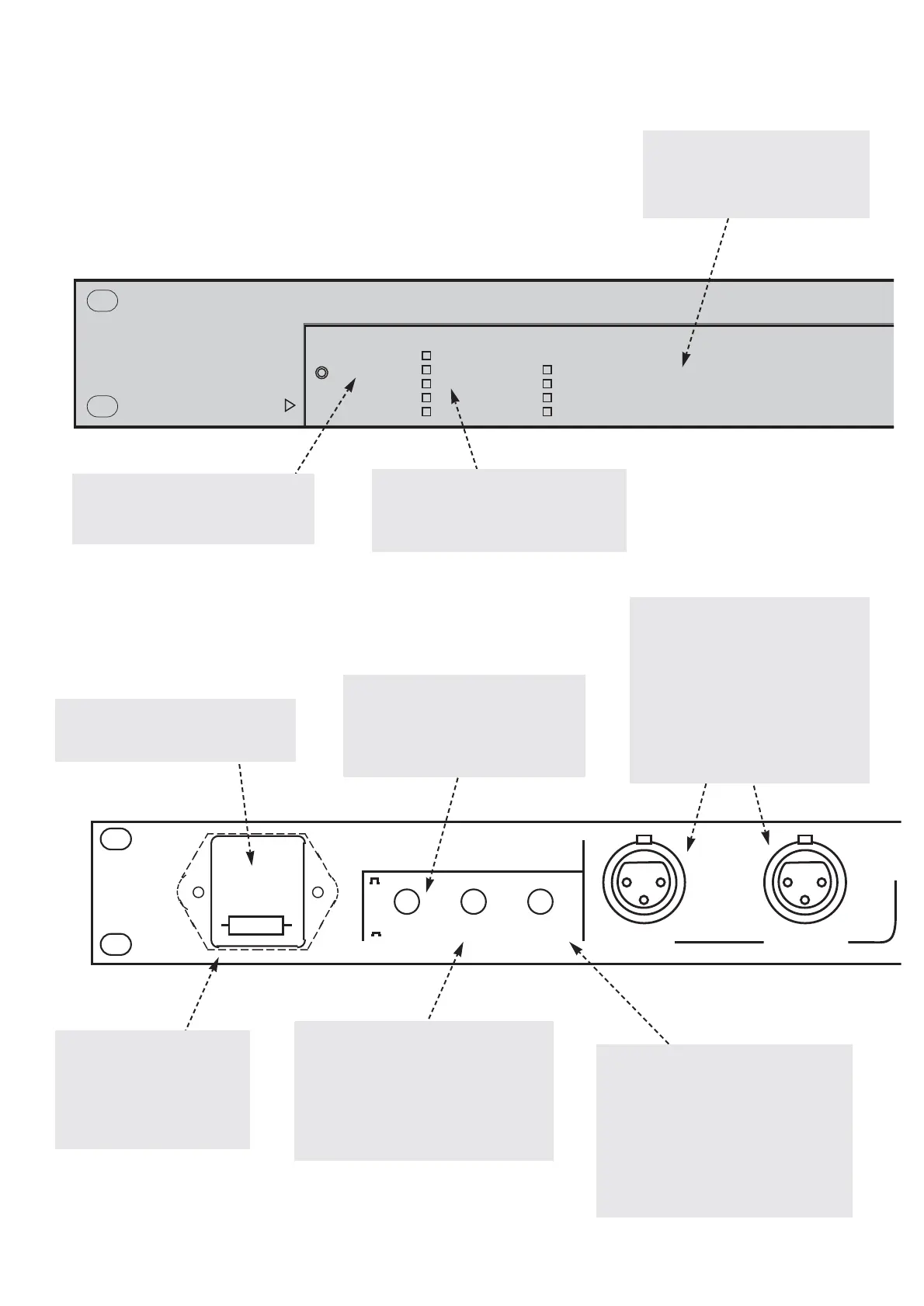

LINEAR PRO MODUL
Exchangeable module available for
specific LINEAR PRO speaker
cabinets and speaker systems.
MODULE SPECIFICATION FIELD
All LP speaker cabinets and speaker
combinations marked by an X can be
driven by this module
MODUL RETRAINER SCREW 1
These screws are used to mount the
module to the controller´s chassis.
AC MAINS SOCKET
Connect the included Euromains
cable here, and then to an AC outlet.
FUSE
To remove the fuse, press the
side brackets and pull the fuse
out. Insure replacement fuses
bear the same specifications
(230 V model: SB 100 mA)
MONO/ STEREO
BASS SWITCH
The stereo low frequency signals are
blended to create a single MONO BASS
signal when you press this button. The
signal is sent to both LOW outputs. The
stereo BASS signal is sent to both LOW
outputs when this button is not engaged
(in the stereo position).
BIAMP/ FULLRANGE SWITCH
The two-way crossover activates when
you press this button. The stereo signal is
split into a low frequency range and a
high frequency range. These signals are
sent through the LOW and the HIGH/
FULLRANGE outputs.
GROUND LIFT SWITCH
The chassis grounding severs when
you throw this switch to avoid AC
hum, for instance when the controller
is rack-mounted with other devices.
LOW OUTPUT LEFT/ RIGHT
Electronically balanced outputs.
Stereo bass signals are sent through
these jacks in the BIAMP mode. If the
MONO BASS button is activated, the
signal is blended and sent as a mono
signal to both jacks. These jacks are
not functional in the FULLRANGE
mode. Connect these jacks to your
bass power amp´s inputs.
1. INSTALLATION AND OPERATION
1.1 JACKS AND CONTROL FEATURES
