HK Audio l.u.c.a.s alpha Service Documents

FRANK SITTER 26.07.2007
66606 St. Wendel / Germany

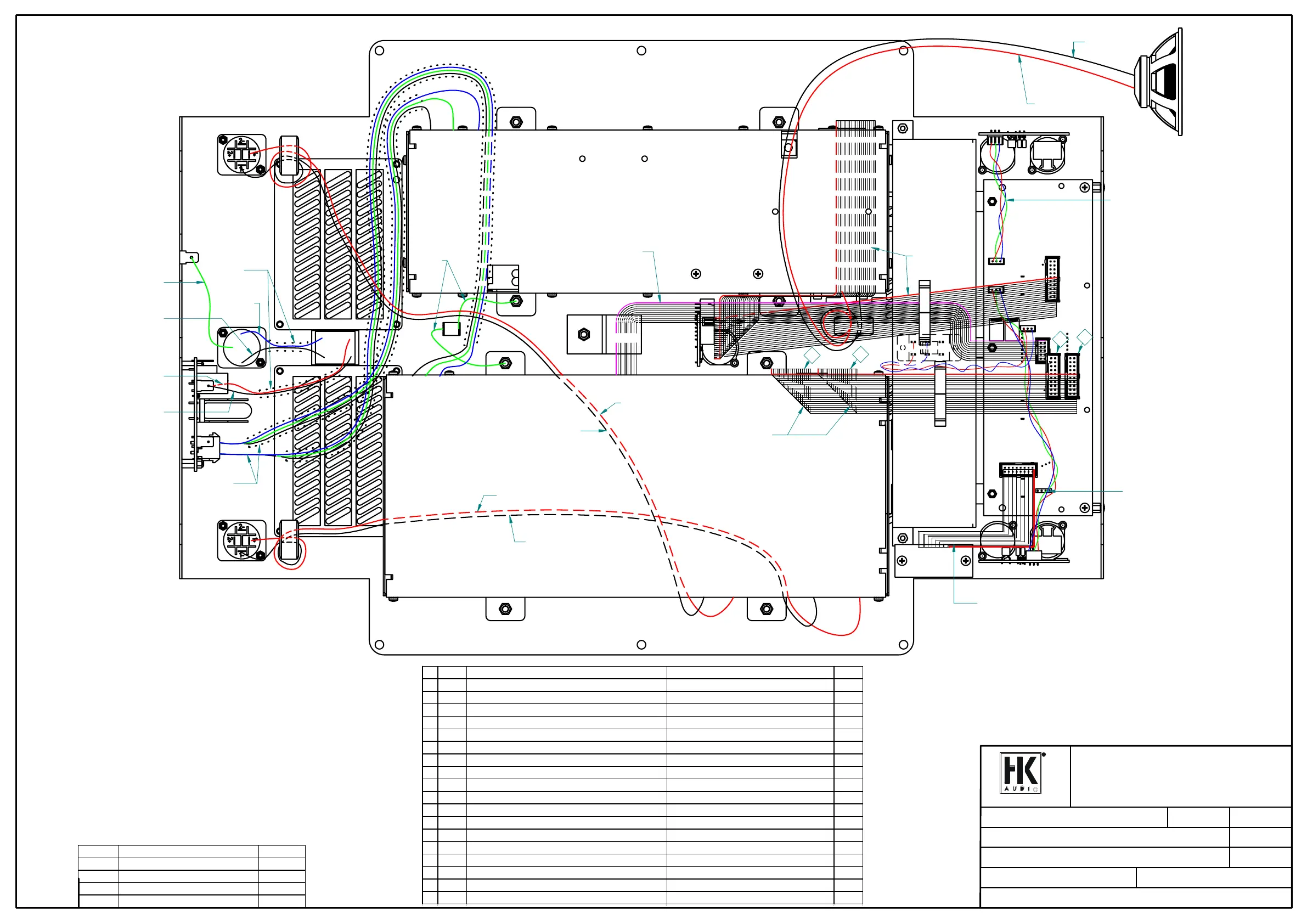

HK0206-GK-R01-1A-CHASSISVERKABELUNG
HK0206-L.U.C.A.S. ALPHA SUB
CABLING
HK0206-KA-R01-1A
C. LORIS 1 05.04.2007
A1
TITLE:
DRAWN BY:
PAGE:
DATE:
DRAWING-NO.:
VERSION:
REVISION:
CHECKED BY:
DATE:
MATERIAL:
FINISH:
FILENAME:
PAGES
INDEX CHANGES
RESP.
+
-
2
2
1
1
962054
962055
965623
965623
962291
962292
965614
965629
962337
962338
962337
962338
964051
962314
962157
962146
962288
962098
962287
972031
pos. part-no. description Beschreibung quantity
1 962052 stranded wire 1xJST 3pol 300mm AWG 26 Style 1007 Litze 1xJST 3pol 300mm AWG 26 Style 1007 1
2 962054 stranded wire 2xJST 3pol 140mm AWG 26 Style 1007 Litze 2xJST 3pol 140mm AWG 26 Style 1007 1
3 962055 stranded wire 2xJST 3pol 280mm AWG 26 Style 1007 Litze 2xJST 3pol 280mm AWG 26 Style 1007 1
4 962098 stranded wire P18 black 150mm AWG 16 Style 1015 Litze P18 schwarz 150mm AWG 16 Style 1015 1
5 962146 stranded wire BB600/4 red 170mm AWG 16 Style 1015 Litze BB600/4 rot 170mm AWG 16 Style 1015 1
6 962157 stranded wire BB600/15 black 170mm AWG 16 Style 1015 Litze BB600/15 schwarz 170mm AWG 16 Style 1015 1
7 962287 stranded wire P28 blue 150mm AWG 16 Style 1015 Litze P28 blau 150mm AWG 16 Style 1015 1
8 962288 stranded wire E3 green-yellow 200mm AWG 16 Style 1015 Litze E3 grün-gelb 200mm AWG 16 Style 1015 1
9 962291 stranded wire FQL21 red 1000mm H07VK 1.5qmm Litze FQL21 rot 1000mm H07VK 1.5qmm 1
10 962292 stranded wire FQL21 black 1000mm H07VK 1.5qmm Litze FQL21 schwarz 1000mm H07VK 1.5qmm 1
11 962314 stranded wire E18 green-yellow 200mm AWG 16 Style 1015 Litze E18 grün-gelb 200mm AWG 16 Style 1015 2
12 962337 stranded wire P39 red 600mm AWG 16 Style 1015 Litze P39 rot 600mm AWG 16 Style 1015 2
13 962338 stranded wire P39 black 600mm AWG 16 Style 1015 Litze P39 schwarz 600mm AWG 16 Style 1015 2
14 964051 power cable Lucas Max Powerkabel Lucas Max 1
15 965614 flat ribbon cable 16-2-150mm type 5 AWG 28 flexibel grau RM1.27 Flachb. 16-2-150mm Typ 5 AWG 28 flexibel grau RM1.27 1
16 965623 flat ribbon cable 20-2-360mm type 5 AWG 28 flexibel grau RM1.27 Flachb. 20-2-360mm Typ 5 AWG 28 flexibel grau RM1.27 4
17 965629 flat ribbon cable 10-2-150mm type 5 AWG 28 flexibel grau RM1.27 Flachb. 10-2-400mm Typ 5 AWG 28 flexibel grau RM1.27 1
18 972031 Braided Sleeve UL94/V0 Gewebeschlauch. UL94/V0 0,22
