1 2 3 4
A
B
C
D
4321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or
by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
Filename: HK0206-SP-R04-1A.sch
PCB No.:
Page:
Pages
1
1
Checked by:
Drawn by: Date:
Date:
Frank Sitter
Thorsten Bender
20.02.2007
20.02.2007
Number: Version: Revision:
1HK0206-SP-R04-1A A
66606 St. Wendel / Germany
Title:
HK0206 LUCAS Alpha
NA = not assembled part ----- EX = exclusive part, no alternative allowed
HT = high temperature part, assemble with distance from PCB

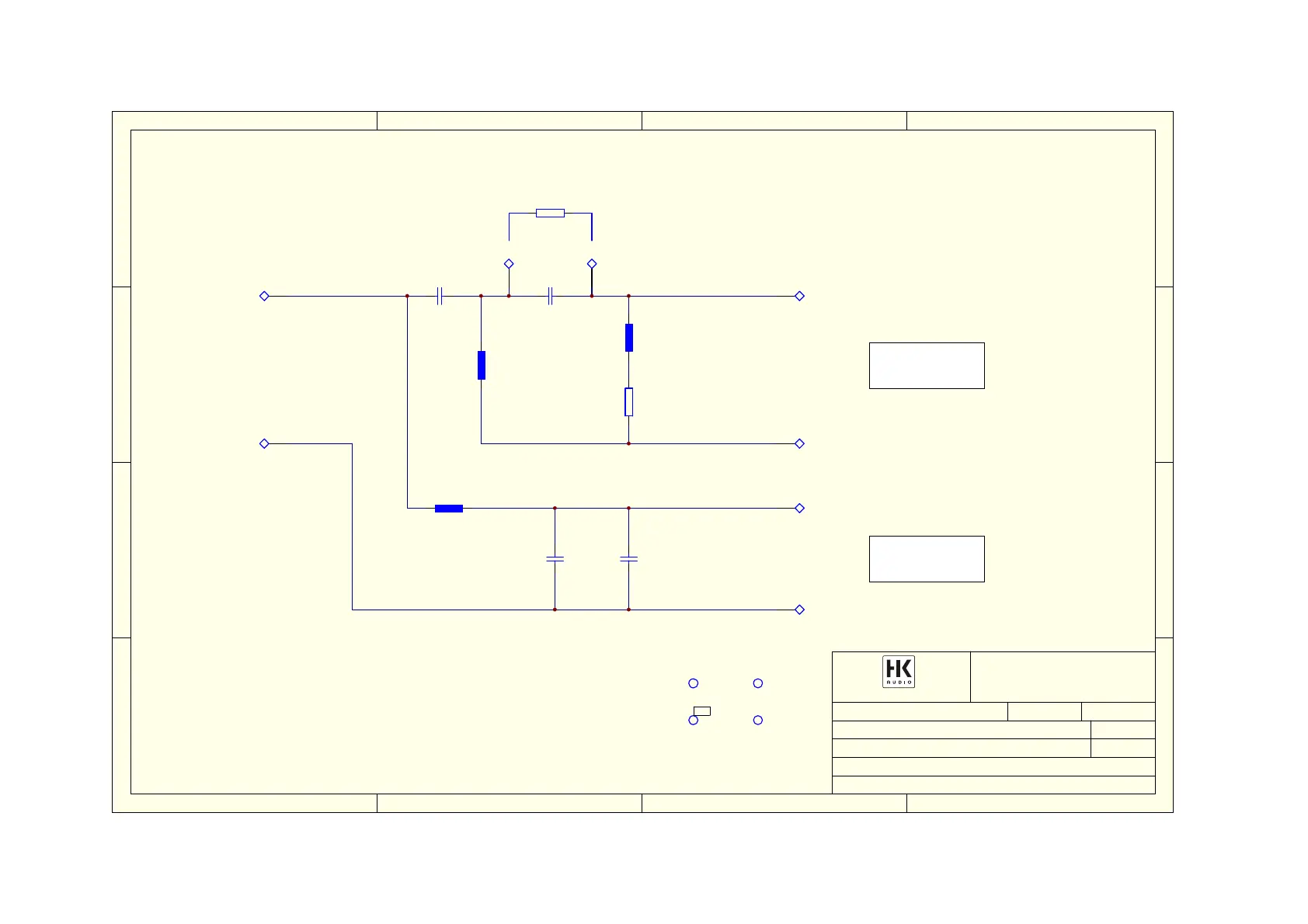

Crossover Circuit
R1
15R/50W
INPUT
HIGH OUT
B&C DE254
NA Nr. 994178
+
MID/LOW OUT
–
LP 320.75/N360
NA Nr. 994245
+
–
+
–
HK0206-LP-R04-1A or later (always use latest revision)
R3
10R/20W_AX
JS1
SP1.5Q
JS2
SP1.5Q
JS5
JS6
JS8
JS7
C5
MKP-18u/250V
JS3 JS4
C1
MKP-6.8u/250V
C2
MKP-2.2u/250V
L3
2.20mH/0.80mm_LI
L2
0.22mH/0.71mm_LU
L1
2.20mH/1.00mm_LU
HO1
NDK-R0-B42
HO2
NDK-R0-B42
HO3
NDK-R0-B42
HO4
NDK-R0-B42
C3
MKP-15u/250V
