1.5 PROTECT LED
The PROTECT LED illuminates to indicate that the energy
management system of your VC 1200 or VC 2400 is active.
If the speaker cables connected to the amp have a short or
the impedance of the connected speakers is too low for the
amp, the PROTECT LED will flash at intervals of
approximately one second to indicate an external fault
with the cables or speakers.
Your VC 1200/VC 2400 power amp itself is protected
against every conceivable passive load. It can even be
used continuously if there is a short circuit without
damaging the power amp circuitry.

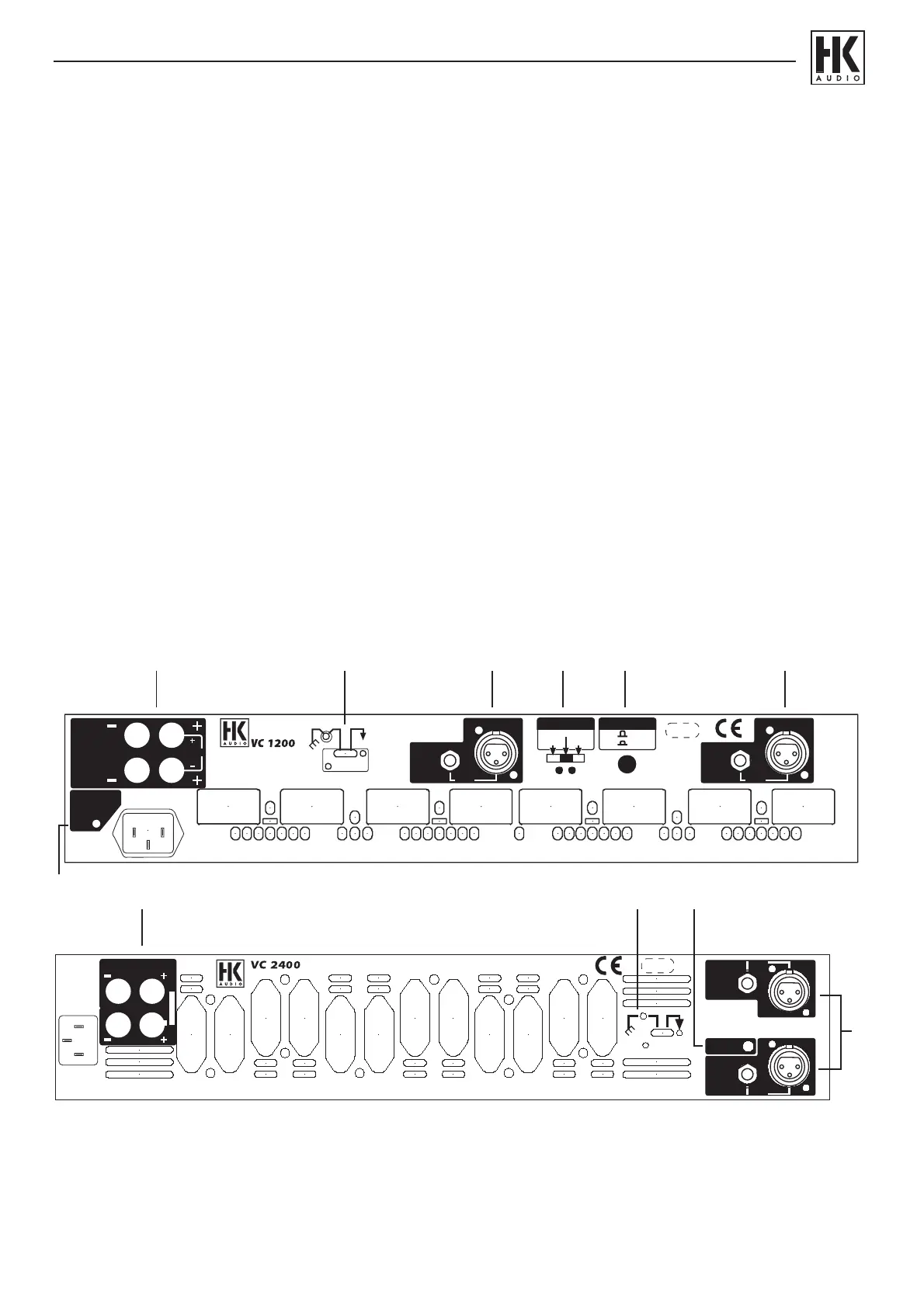

2. REAR PANEL
2.1 INPUTS
Each channel (A + B) of your VC 1200/VC 2400 power
amp is equipped with one balanced XLR jack and one
stereo 1/4” jack, connected in parallel.
These parallel circuits enable you to drive several power
amps simultaneously. Simply patch the unoccupied input
of the first amp to the second amp’s input, and so forth. To
avoid extraneous noise and loss of level , use balanced
cables for this power amp signal chain. You can avoid
ground hum by removing the ground strap for all amps
after the first one in the signal chain (refer to Section 2.3).
7
VC MANUAL
GROUND
OUTPUTS
A
B
230 V~/50 - 60 Hz
600 VA
MAX. POWER CONSUMPTION: 1440 VA
STRAPGROUND
BRIDGEMONO
STEREO
MODES
ON
OFF
IMPORTANT:
INPUT 'B' ONLY ACTIVE
IN STEREO MODE
USE INPUT
'A' WITH
MONO +
BRIDGE
MODES
XLR:
2 = +
3 = -
PHONE:
TIP = +
RING = -
MANUFACTURED IN CANADA
INPUT
A
PARALLEL
SER.NO.
LIMITER
INPUT
B
PARALLEL
MINIMUM LOAD
LED ON = 4 Ω
LED OFF = 2 Ω
EACH CHANNEL
CAUTION!
TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD DON´T EXPOSE THIS APPLIANCE TO MOISTURE
OR RAIN. DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
BRIDGE
GERMANY
BRIDGE MODE:
REFER TO MANUAL
2 3 1 5 7 1
6
230 V~
50 - 60 Hz
800 VA
BR
ID
GE
Min. LOAD 4 OHMS/CHANNEL
8 OHMS BRIDGED
GRND
STRAP
SER.NO.
OUTPUTS
A
B
IN = MONO
OUT = STEREO
INPUT
B
INPUT
A
PARALLEL
PARALLEL
MAX. POWER
CONSUMPTION:
1440 VA
XLR: 2 = +/3 = -
PHONE: TIP = +/RING = -
CAUTION!
TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD DON´T EXPOSE THIS APPLIANCE TO MOISTURE
OR RAIN. DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
GERMANY
MANUFACTURED IN CANADA
BRIDGE MODE: REFER TO MANUAL
2 3 4
1
