OM−221 534 Page 13
SECTION 10 − PARTS LIST
803 935
1
2
3
4

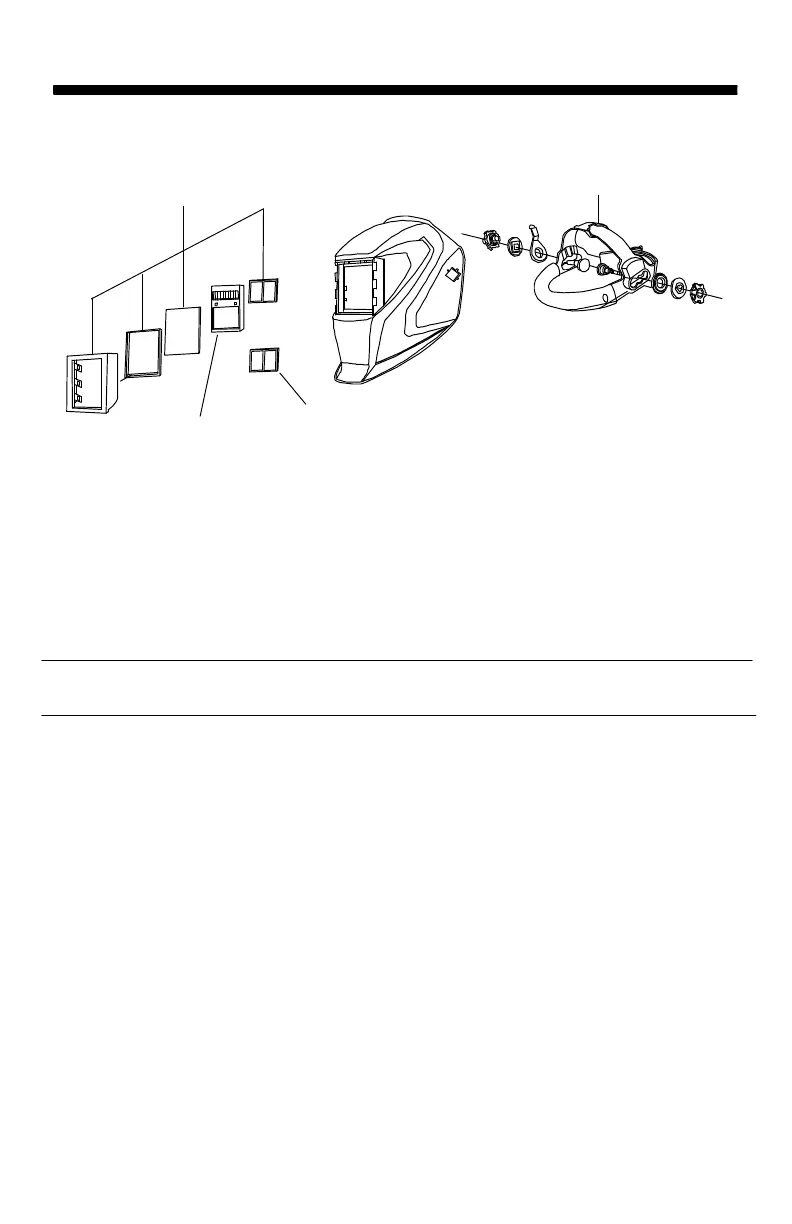

Figure 10-1. XFS And XVS Series Auto-Darkening Welding Helmets
Description
Part
No.
Item
No. Quantity
Figure 10-1. XFS And XVS Series Auto-Darkening Welding Helmets
1 *770 425 Kit, Lens Cover Flat Black 1........... ........ .........................
1 *770 426 Kit, Lens Cover Gloss Black 1........... ........ .......................
1 *770 647 Kit, Lens Cover Patriot II (Blue) 1........... ........ .....................
1 *770 454 Kit, Lens Cover Blaze Orange 1........... ........ ......................
1 *770 493 Kit, Clear Lens (Bezel Not Included) 1........... ........ ................
(5 Outside Lenses, 5 Inside Lenses).............................. ................
2 770 455 Lens, Helmet Auto Darkening (XFS Series) 1............ ........ ..........
2 770 427 Lens, Helmet Auto Darkening (XVS) Series) 1............ ........ ..........
3 770 433 Ratchet Headgear Assy. 1............ ........ ..........................
4 ♦770 274 Lens, 1.50 Magnification (Not Shown) 1........... ....... ...............
4 ♦770 275 Lens, 1.75 Magnification (Not Shown) 1........... ....... ...............
4 ♦770 276 Lens, 2.00 Magnification (Not Shown) 1........... ....... ...............
4 ♦770 277 Lens, 2.25 Magnification (Not Shown) 1........... ....... ...............
* Includes bezel, front lens cover gasket, 5 front lens covers, 2 inside lens covers.
♦ Optional
