07-12
Rules for the mains connection
• Use only a 3 x 2.5 mm
2
cable with a maximum
length of 25 m, a CEE plug and connector to
connect the camper to an external 230 V mains.
• The 230 V mains connection in the camper
has been designed for a total power con-
sumption of 2300 W. If additional devices
requiring electricity are connected, such as a
water heater, etc., you must ensure that this
electric power value is not exceeded, taking
other electrical equipment in use, such as the
refrigerator, therme, etc., into account.
When obtaining electricity via a
cable drum, this must be completely
unwound, as otherwise induction
may cause the cable to heat up,
which could lead to burning.
If a residual current operated de-
vice (special installation) has been
installed in your camper, it must be
checked regularly by activating the
test button.
Operation via base vehicle
During the drive, the battery of the base vehi-
cle takes over the supply of the 12 V devices if
contact 9 of the 13-pole socket system on the
base vehicle has been equipped.
Use the main switch on the control panel to
switch off the 12 V operation during the drive, on
longer stopovers and breaks to conserve power
in the base vehicle‘s battery.
When running on 12 volts, the refrigerator only
functions if the motor of the base vehicle is
turned on. Contacts 10 and 11 of the 13-pole
socket system.
If operation is carried out via the
base vehicle, a maximum of 2 elec-
trical devices in the camper can be
switched at the same time using the
control panel (exception: the self-suf-
cient package has been installed).
Always switch off the electric con-
nection between the base vehicle and
the camper before hooking the cam-
per up to a low-voltage supply.

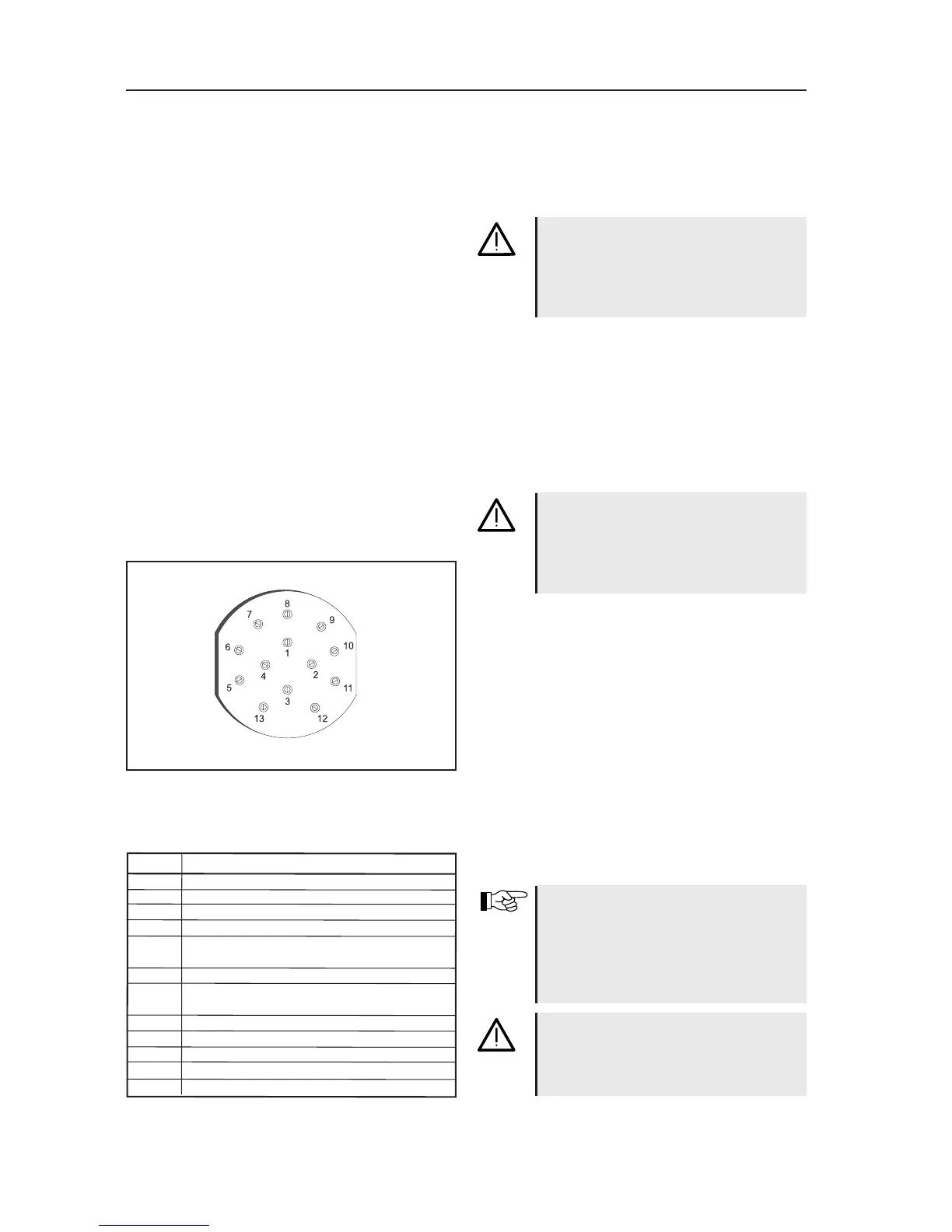

Connector pin assignment of the 13-pole plug
(„Jäger“ outlet)
Contact Circuit
1 direction indicator, left
2 fog lamp
3 mass (for circuits 1 through 9)
4 direction indicator, right
5 right taillight, silhouette light,
limitation lamp, and license-plate illumination
6 brake lights
7 left taillight, silhouette light,
limitation lamp, and license-plate illumination
9 electrical supply (constant positive)
10 electrical supply, ignition switch controlled
11 mass for circuit 10
12 mass for trailer recognition
13 mass for circuit 9
