Die Kontaktbelegungen können bei einigen Modellen leicht abweichen.
Die genaue Kontaktbelegung nden Sie im Leitungsplan des Fahrzeuges.
S37
7,5A
34
35
36
1 2 3 4
S41
+ + - -
+ -
38
39
40
1
+ -
+ -
2
3
18
30
31
32
33
8
13
4
9
14
5
10
15
23
6
11
16
12
7
17
21
Ambiente
3c
19
Ambiente
2b
Ambiente
2a
20
Ambiente
3a
24
Ambiente
1a
28
Ambiente
3b
25
26
27
Ambiente
1c
29
Ambiente
1b
22
230V current range
Therme
Floor heating
Input lead
Protective
conductor
S40 10/11 from plus
terminal ignition
circuit
S39 to charge controller,
control RE+-
(only self-sufcient / 12V)
Plus electrical supply
S38 to charge controller,
input 1 charging current
(only self-sufcient / 12V)
9 and 13 from car or
connection to charge controller,
battery connection for self-sufcient / 12V
Fuses 15A
Bridge circuit
from S37 to 4
S37 earth connection to PE4
Wall light
dimmerr
Ceiling
light
dimmer
Children's
bedside
lights III
Children's
bedside
lights
Clothes
cupboard
light
Fan
Water
supply
For WLU: left
bed
Porta
Potti
For WLU:
clothes
cupboard
light II
Clothes
cupboard
roof cable
Clothes
cupboard
roof cable
Clothes
cupboard
roof cable
Outer tent
light
Washstand
Shower
Jumper 1
closed for
self-sufcient / 12 Fz
Dimmer for
left-hand
bed
Dimmer for
right-hand
bed
Connection for external keys
Battery monitoring control
Main panel Bathroom Bed Bed Radio Kitchen
Contact assignments may differ slight-
ly in some models. Please refer to the
electric wiring diagram for this vehicle
for the exact assignment of all contacts.

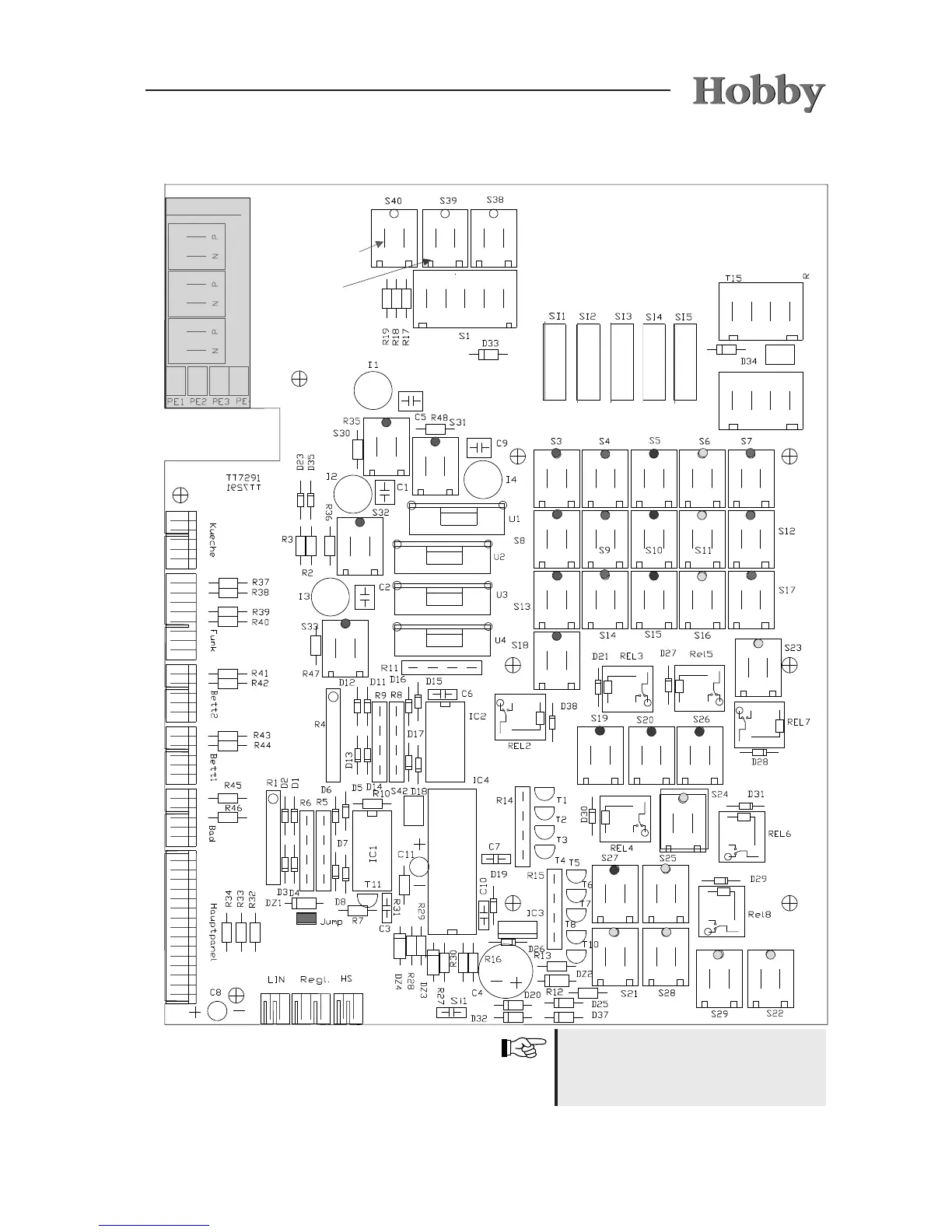

7.6 Contact plan for the light control system
