7.2 Control panel
The system consists of control electronics, a
standard or LCD panel (optional) with a keypad
and several 3-key control panels. It enables you
to operate the different lamps and several 230
V devices. Furthermore, various kinds of infor-
mation and measured values are shown on the
(optional) LCD display.

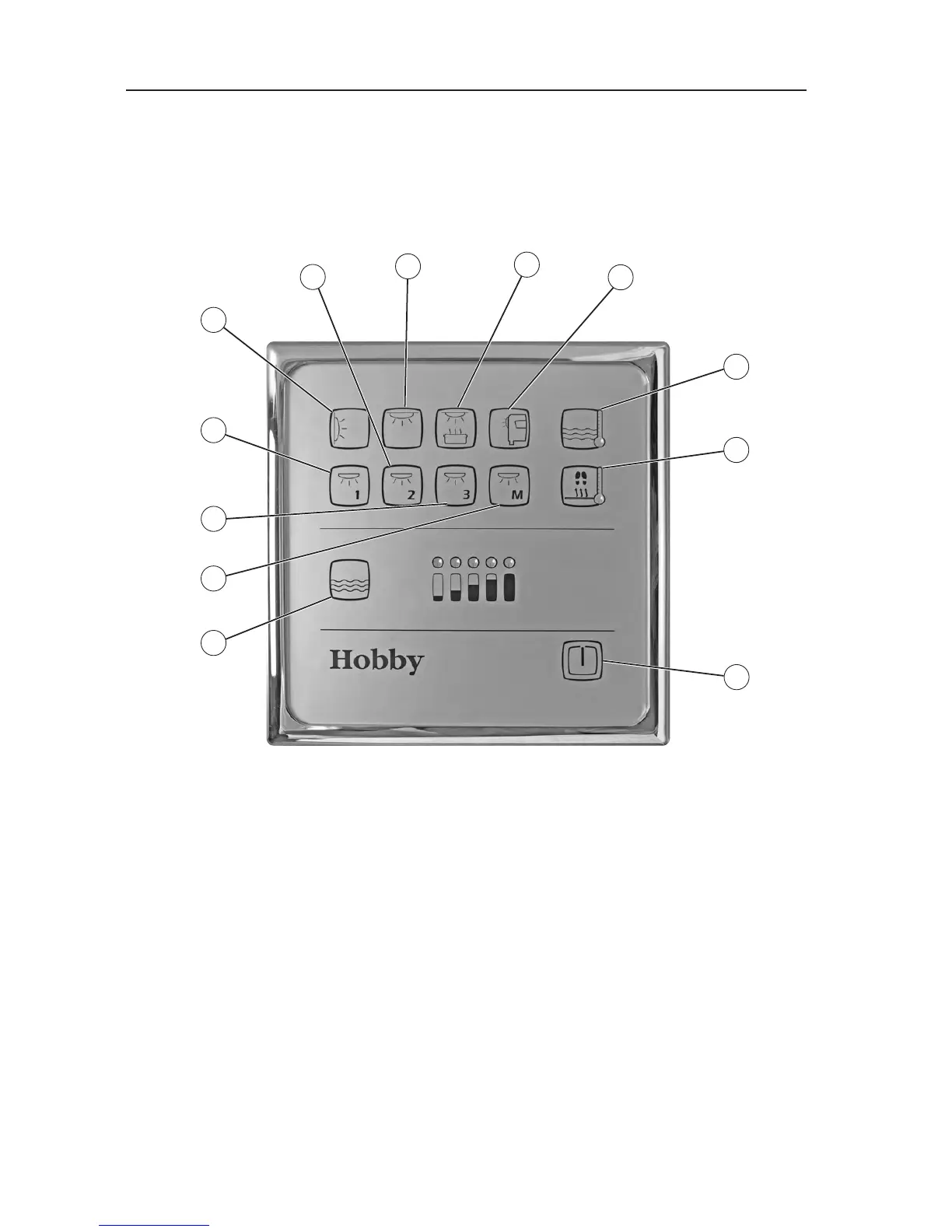

Standard control panel
12
10
7
8
5
4
1
2
3
6
14
Main switch
Floor heating
Therme
Outer tent light
Kitchen light
Ceiling light
Lighting
Ambience 2
Wall light
Lighting
Ambience 1
Lighting
Ambience 3
Memory
Water level
indicator
9
