Assignment of fuses

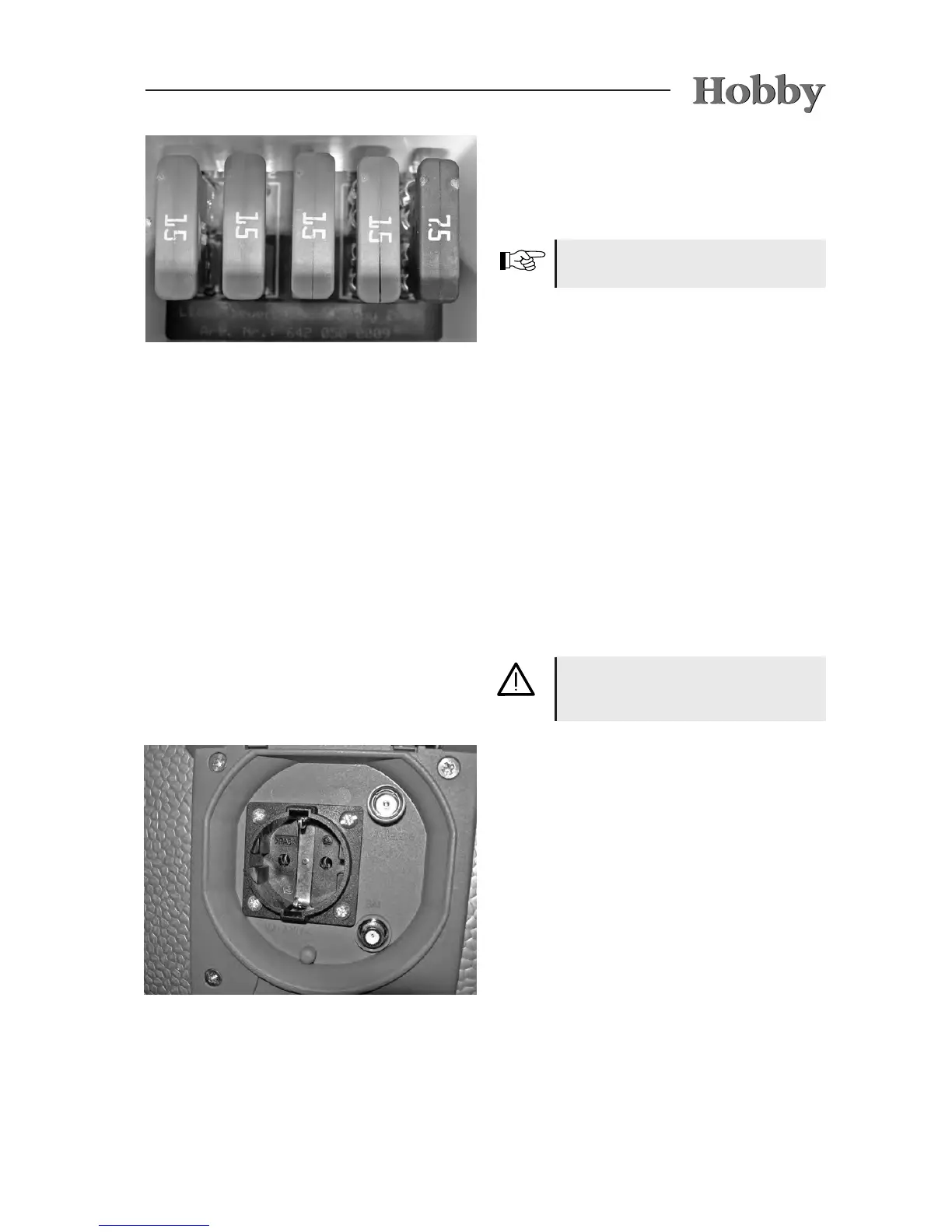

The fuses for the individual internal electric cir-
cuits are located in the lighting control module.
They are assigned as follows (from left to right):
Electric circuit 1 (15 A):
children‘s bedside lights, clothes cupboard light
(only WLU), outer tent light, wall lights, ceiling
light, bedside lights
Electric circuit 2 (15 A):
children‘s bedside lights
Electric circuit 3 (15 A):
clothes cupboard light, left bedside light (only
WLU), ambience 2, kitchen, shower
Electric circuit 4 (15 A):
fan, washstand, ambience 3, ambience 1
Electric circuit 6 (7.5 A):
water supply, Porta Potti, refrigerator illumination
Only replace defect fuses if you know
what caused the fuse to blow and
have xed this.
Only replace defect fuses if you know what
caused the fuse to blow and have xed this.
Your camper also has a combined external
socket and antenna terminal in the outer tent
(deluxe special accessory).
This can be used, for example, to set up a TV
in the outer tent. Depending on how you wire it,
the integrated antenna terminal can be used as
either an input or an output socket. For further
information, please speak to your Hobby dealer
(also see 6.2).
In some models, there may be slight
deviations in this assignment.
