your radio transmits the channels in the correct order. If this is not the case, you have to change the
channel mapping in the Receiver Menu. If you use a standard PWM receiver with standard wiring layout
the channel mapping does not apply. When A3 Pro V2 is operating in single line receiver mode, the [THR
Out/AIL] can be used as the throttle output channel for the ESC or the throttle servo if a mini receiver is
being used which has no additional output connectors.

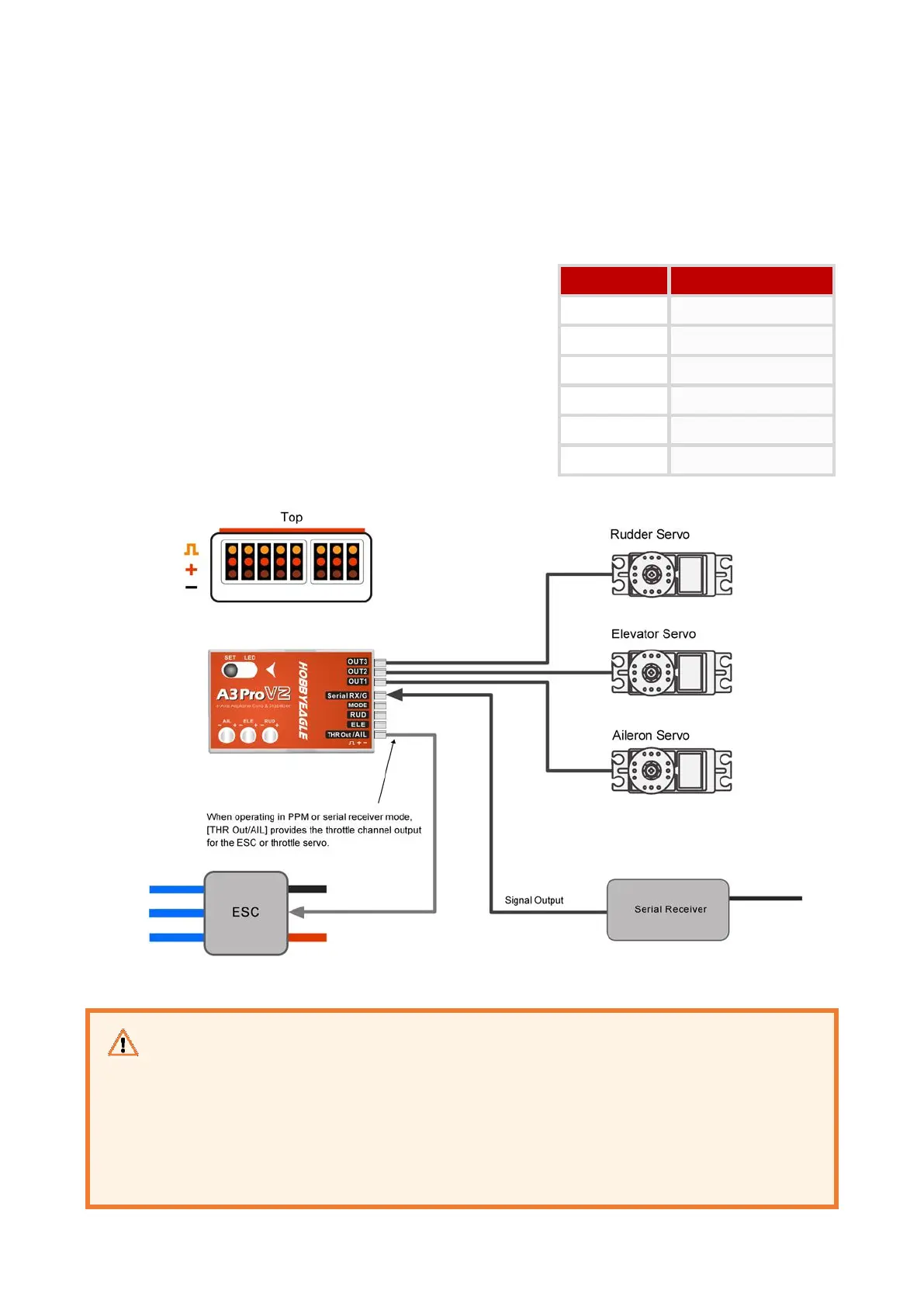

Serial Receiver Protocols Supported: Default Channel Mapping
 PPM Receiver
 Futaba S.Bus (compatible with FrSky SBUS, RadioLink
SBUS and WFLY WBUS)
 Spektrum DSM/DSMX 1024 Satellite Receiver
 Spektrum DSM/DSMX 2048 Satellite Receiver
 Spektrum SRXL
 Multiplex SRXL / JR XBUS Mode B
 Graupner SUMD
 FlySky iBus
NOTES
 Please note that the remote master gain channel is disabled in single line mode as default.
Assign a channel number for gain channel in Receiver Menu to activate this feature if needed.
 Pay attention to the polarity of the plugs. The orange signal line must always be on the top and
the brown on the bottom.
 You will need to purchase an optional adapter if you are using a Spektrum satellite receiver.
Function
Channel Assignment
Aileron
Channel 1
Elevator
Channel 2
Throttle
Channel 3
Rudder
Channel 4
Flight Mode
Channel 5
Master Gain
None
