Wing Installation

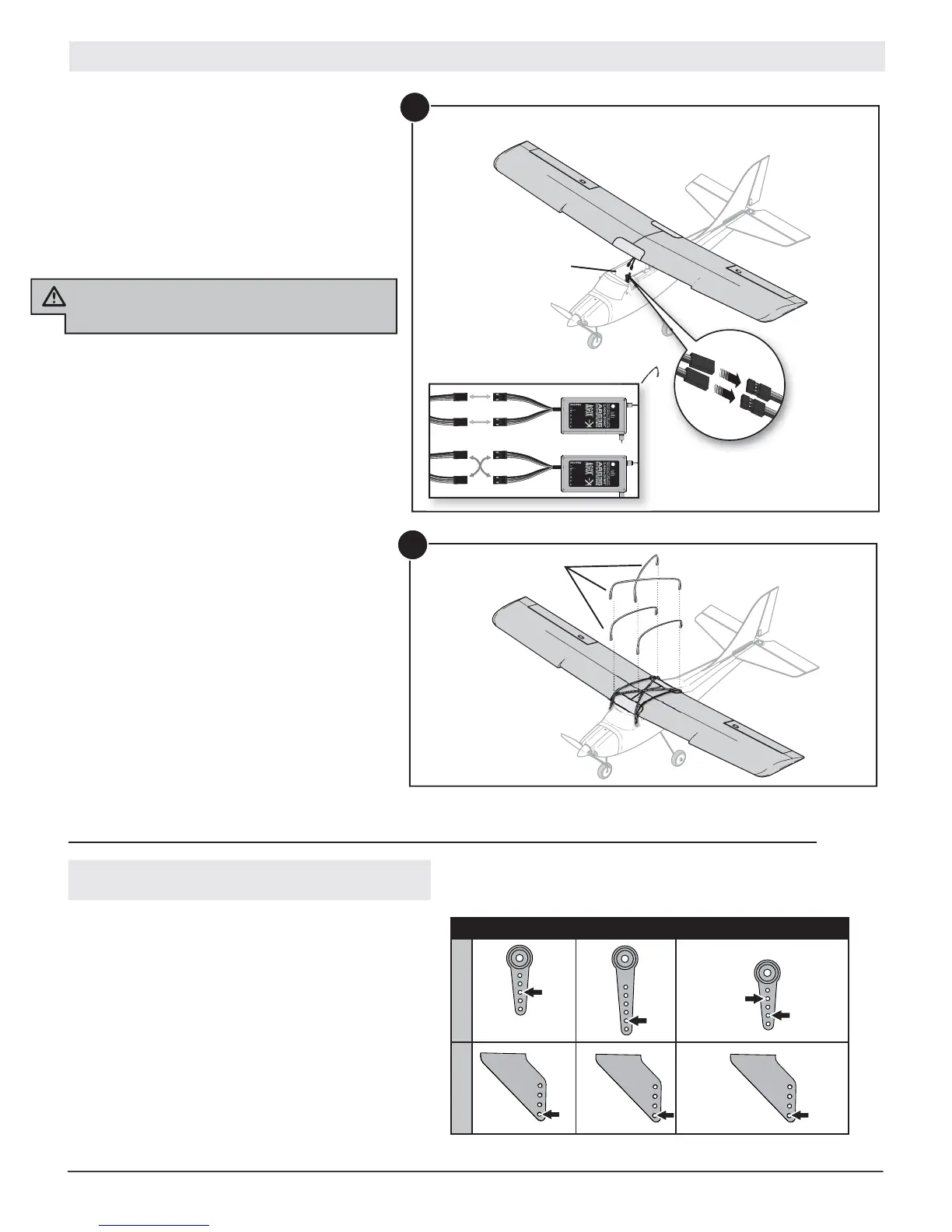

1. Connect the aileron servo connectors to the included
Y-harness (A) in the fuselage. The left and right servos
can be connected to either side of the Y-harness.
Ensure the Y-harness is connected to the Port 2 of the
receiver.
2. Install the wing on the fuselage.
CAUTION: DO NOT crush or otherwise damage the wiring
when attaching the wing to the fuselage.
3. Install 6 rubber bands (B) on the front and back rods
to complete the installation.
Disassemble in reverse order.
IMPORTANT: Correct operation of the SAFE system
requires connection of both ailerons to the included
Y-harness and the Port 2 of the receiver.
OR
1
2
B
A
Control horn and servo arm settings
The Illustration shows the factory hole settings in servo arms and
control horns.
NOTICE: Moving a linkage to another position may block the servo arm
or affect SAFE technology functionality.
Elevator Ailerons Rudder
ArmsHorns
Nose
Gear
Rudder
