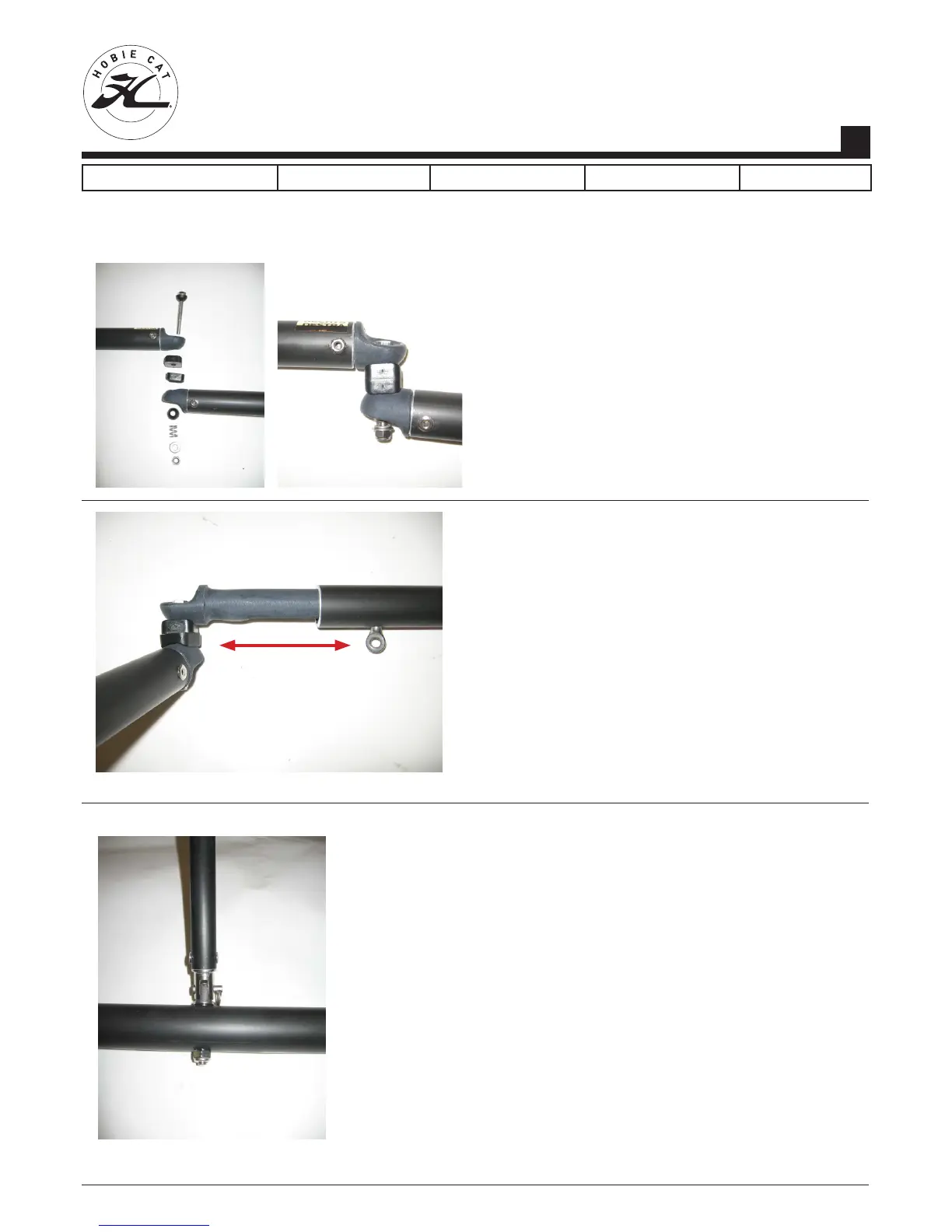

Assembly manual - Hobie 15 CLUB
TILLER BAR AND EXTENTION
1. Tiller system
Attach the tiller crossbar (1) to the tiller arm (2). Pay atten-
tion to the left and right side. Insert the screw as shown on
the drawing. Repeat the same operation on the other side.
Do not overtight the nut, the articulation must work well
without effort.
2. Rudder blade adjustment
It is advisable to have the rudder blades parallel or lightly
toed-in (3-4 mm). The length of the tiller crossbar can be
adjusted to achieve this. Loosen the screw on the under-
side of the tiller crossbar and you will be able to slide the
adjuster in or out. When you have aligned the rudders cor-
rectly, ensure that you re-tighten the adjuster screw firmly.
3. Tiller extention
Attach the stick by slipping the pin through the violin screw
in the middle of the tiller crossbar.
