Assembly manual - Hobie 15 CLUB

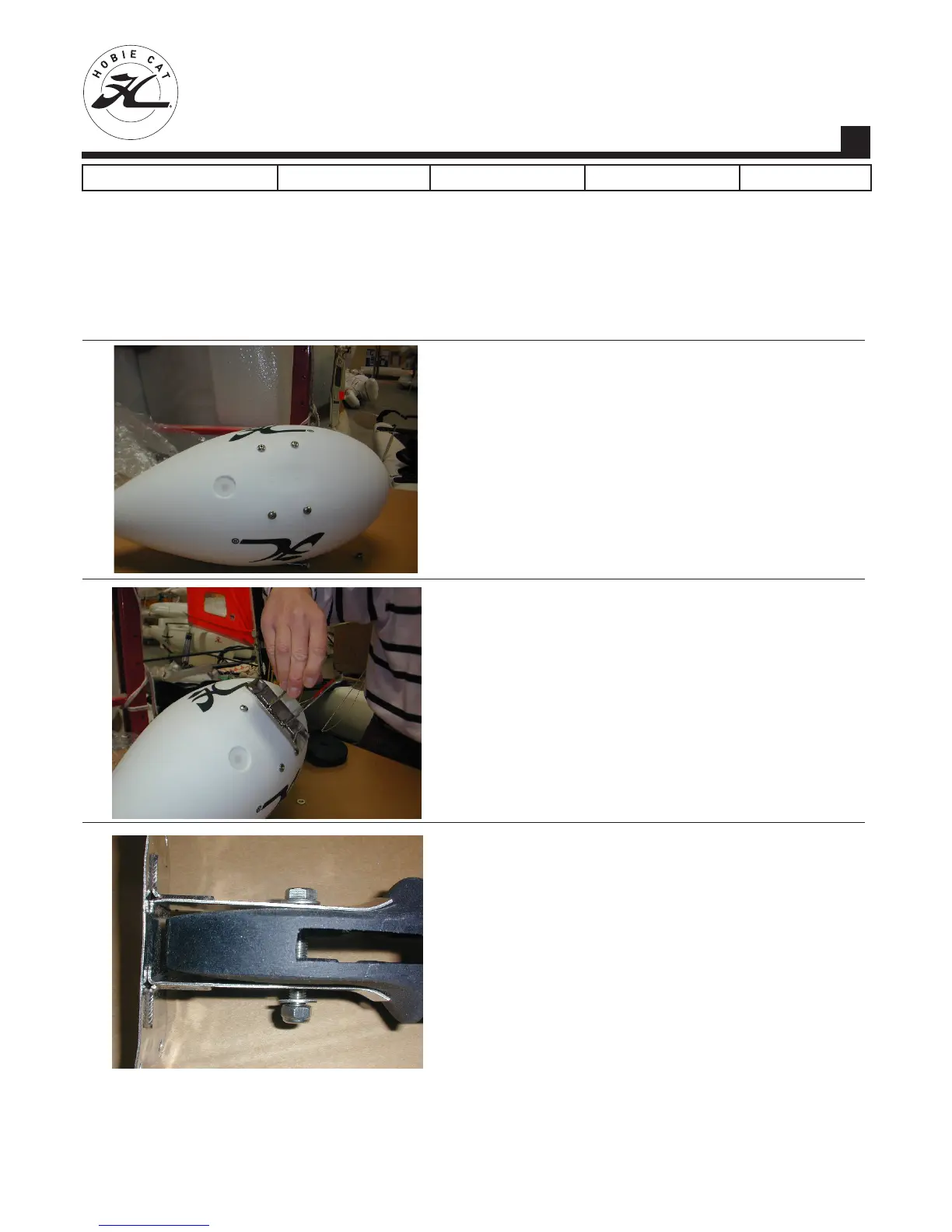

MAST FLOATING DEVICE
This device prevents the mast from sinking in case of capsize thus allows easy righting.
The mast float devise is already mounted. You just need to fit it on your mast head (see step 3). If it is not mounted,
follow steps 1 to 3 below.
1 Unscrew the four screws that are on the device.
2
Adjust the alu plate so that the holes fit the four
holes on the device and fix it with the screws.
3
Fix the device on the mast head using the bolt
and the two washers as shown on the photo.
