Hobie Cat Europe - ZI Toulon Est, BP 250 F-83078 Toulon cédex 9 - Tél. +33 494 08 78 78 - Fax +33 494 08 13 99

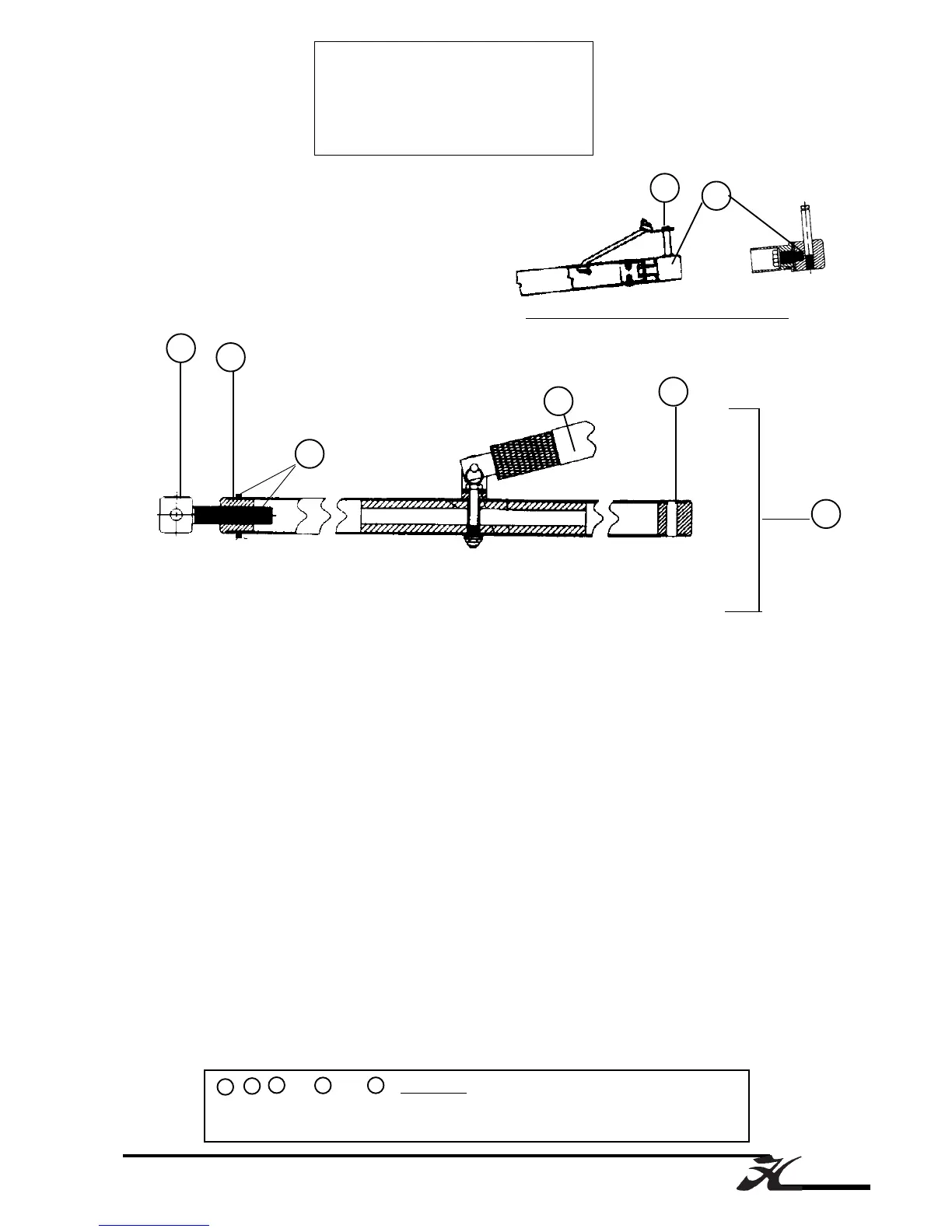

Hobie FX-One : Eclaté de pièces détachées / Illustrated part guide/Explosionszeichnung (2003-2004)
10
Hobie FX-One
Barre d'accouplement & stick
Tiller crossbar & stick
Anlenkstange & Pinne
1 - 17562200 : Barre d'accouplement Race complète
Race tiller crossbar complete
Anlenkstange kompl. Race
2- 99220810 (x2) : Vis de réglage
Adjustment arm
Anlenkstange-Einstellschraube
3- 99220119 : Embout fileté
Threaded end cap
Enstück mit Gewinde
4- 99220121 : Embout de barre accouplement percé
Tiller crossbar drilled end cap
Anlenkstange-Endstück gebohrt
5 - 99220163 : Embout de gouvernail Race
Race tiller end cap
Ruderarmenstück Race
6 - 99220169 (x2) : Clip rapide
Retainer clip
Sicherungsclip
7 - 99220445 : Vis M.TCLPZ 4x6
Screw
Schraube
8 - 99502310 : Stick FX6
FX6 Tiller extension
FX6 Pinne
2
4
1
5
6
Bras de gouvernail/Rudder arm/Ruderarm
3 + 4 + 5 +2X 6 + 2X 7 = 99600020 : Kit gouvernail 18TI/FX/FOX
Tiller connector kit complete
Verbindungsgelenk kompl.
3
7
8
