Hobie Cat Europe - ZI Toulon Est, BP 250 F-83078 Toulon cédex 9 - Tél. +33 494 08 78 78 - Fax +33 494 08 13 99

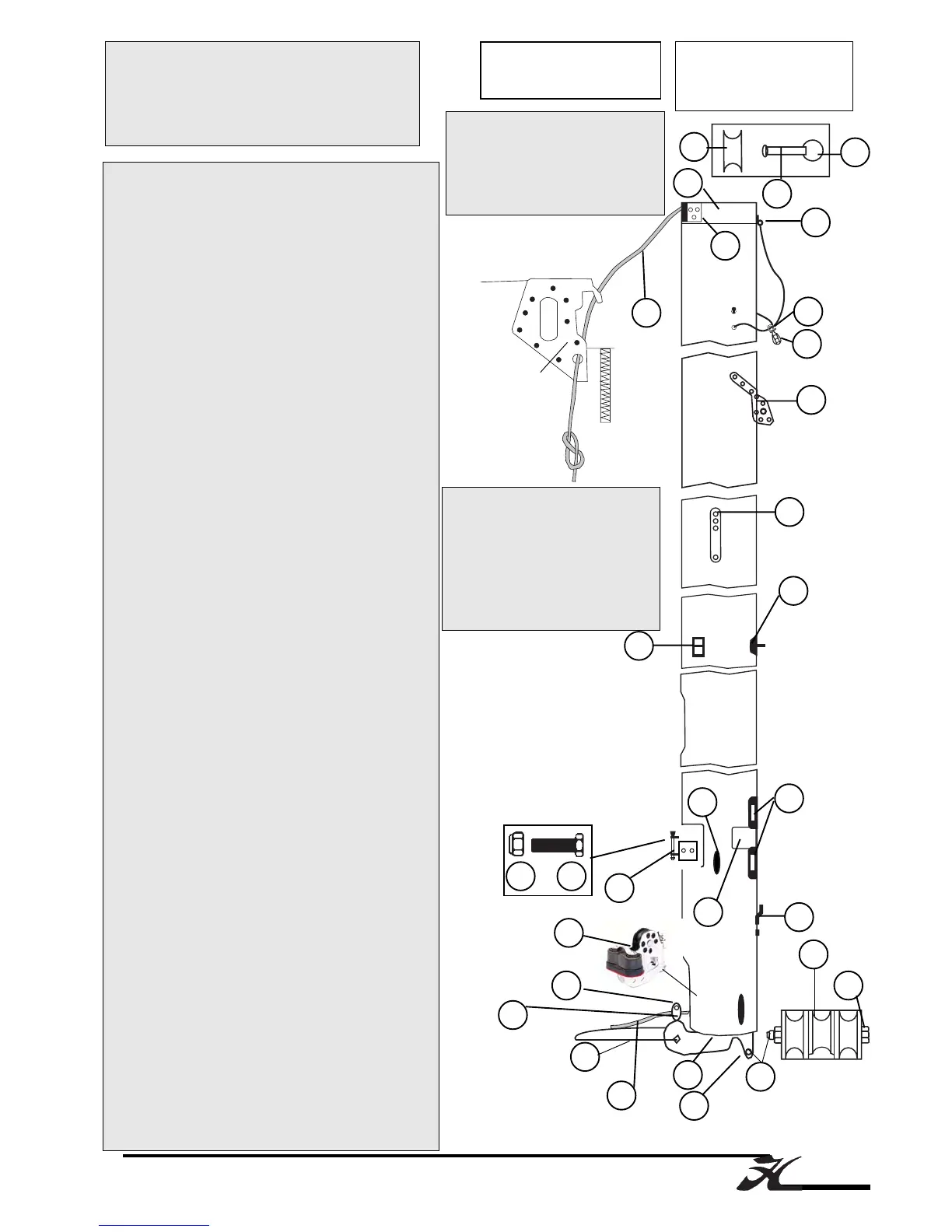

Hobie FX-One : Eclaté de pièces détachées / Illustrated part guide/Explosionszeichnung (2003-2004)
14
Hobie FX-One
Mât/Mast/Mast
1
2
3
4
5
6
8
7
10
12 11
13
17542710 : Mât complet ss tourelle
Complete mast w/o block
Mast komplett o. Cunningham
17542750 : Mât deux pièces
2 piece mast
2-teiliger Mast
1 - 99041011 : R2a alu D20
Aluminium sheave D20
Alu Rolle D20
2 - 99220602 (x5) : Axe percé
Clevis pin
Bolzen gebohrt
3 - 99220230 (x10) : Anneau brisé
Split ring
Ringsplint
4 - 20041755 : Fixation du hook
Hook fastening
Haken-Befestigung
5 - 21041720 : Ferrure de capelage
Mast tang
Mastbeschlag
6 - 21080511 : Barrette câble de flèche
Diamond wire holder
Salingdraht-Mastbeschlag
7 - 99064025 : Ferrure inox barre flèche
Inox spreader anchor plate
Saling Inox Platte
8 - 99064030 : Ferrure alu barre flèche
Spreader anchor plate alu
Saling Alu Platte
9 - 17060302 : Bras de rotation de mât
Mast rotator
Rotationsarm
10- 18011865 : Embase de vit mulet
Gooseneck base
Lümmel-Mastbeschlag
11- 99220910 (x10) : Vis TH 6x35
TH Screw
Schraube TH
12- 99056238 (x10) : Ecrou indessérable 6
Nylstop nut 6
Selbstsichernde Mutter 6
13- 14041723 : Autocollant de sécurité
Mast caution label
Sicherheitsaufkleber
14- 99080540 : Tourelles cunningham
Dowhaul swivel Camcleat
Drehklemme Vorliekstrecker
15- 17041750 : Réa de vit mulet
Gooseneck sheave
Lümmelbeschlag Rolle
16- 99220915 (x10) : Vis 6x60
Screw 6x60
Schraube 6x60
17- 99220094 : Vis 6x80
Screw 6x80
Schraube 6x80
18- 17000020 : Base de mât
Mast base
Mastfußpfanne
19- 14061245: Axe barre 6x32
Tiller connection pin
Anlenkstange Bolzen
20- 99500114 : Poulie simple tangon
Pole single block
Einfacher Block Spibaum
21- 18080502 (x2) : Barrette ridoire câble de flèche
Turnbuckle anchor plate
Salingspanner-Platte
22- 99180010 : Tôle réglable câble de flèche
Bottlescrew shield plate
Salingspanner-Schutzplatte
23- 17580520 : Drisse de GV
Main halyard rope
Großfallleine
15
16
17
12
23
20
22
21
20041750
Hook de GV
Mainsail hook
Großsegelhaken
19
18
9
14
24
DEPUIS/SINCE/AB
2003
23
25
26
27
28
24- 99220760 (x10) : Taquet
Cleat
Mastklemme
25- 18042705 : Bouchon de mât
Mast plug
Mastendstück
26- 99220238 : Ferrure fixation
tramp dragoon
Anchor plate
27- 99220660 (x10) : Manille lyre D4
Shackle
Schäkel
28- 99500114 : Poulie simple tangon
Single block
Einfacher Block
