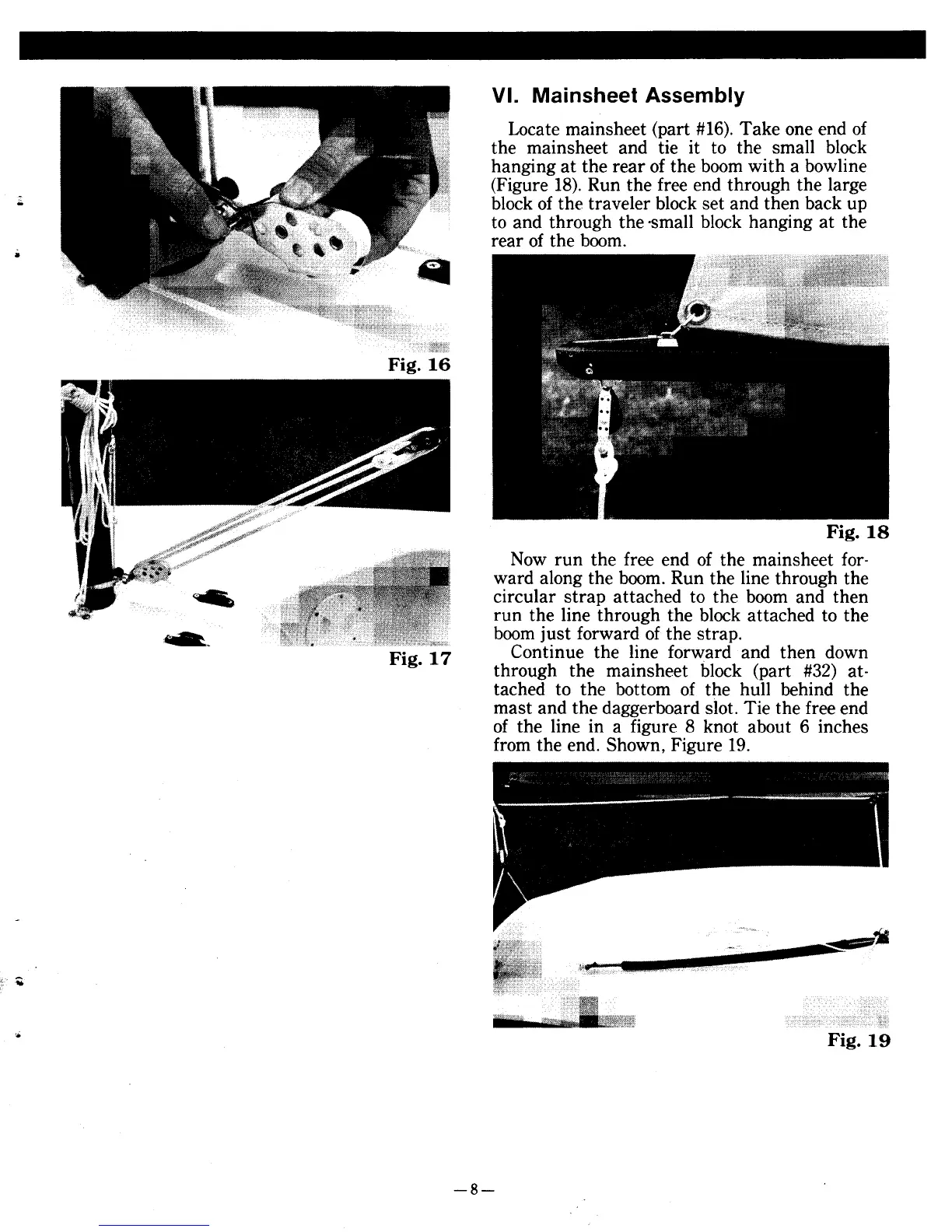

VI. Mainsheet Assembly
Locate mainsheet (part #16). Take one end of
the mainsheet and tie it to the small block
hanging at the rear of the boom with a bowline
(Figure 18). Run the free end through the large
r block of the traveler block set and then back up
to and through the .small block hanging at the
rear of the boom.
»
Fig. 16
Fig. 18
Now run the free end of the mainsheet for-
ward along the boom. Run the line through the
~ circular strap attached to the boom and then
run the line through the block attached to the
~ boom just forward of the strap.
. Fig 17 Continue the line forward and then down
. through the mainsheet block (part #32) at-
tached to the bottom of the hull behind the
mast and the daggerboard slot. Tie the free end
of the line in a figure 8 knot about 6 inches
from the end. Shown, Figure 19.
~:::j
~
.. Fig. 19
-8-
