Hobie Mirage Drive - Mirage Drive Cranks; Assembly; Identifying your Mirage well

2

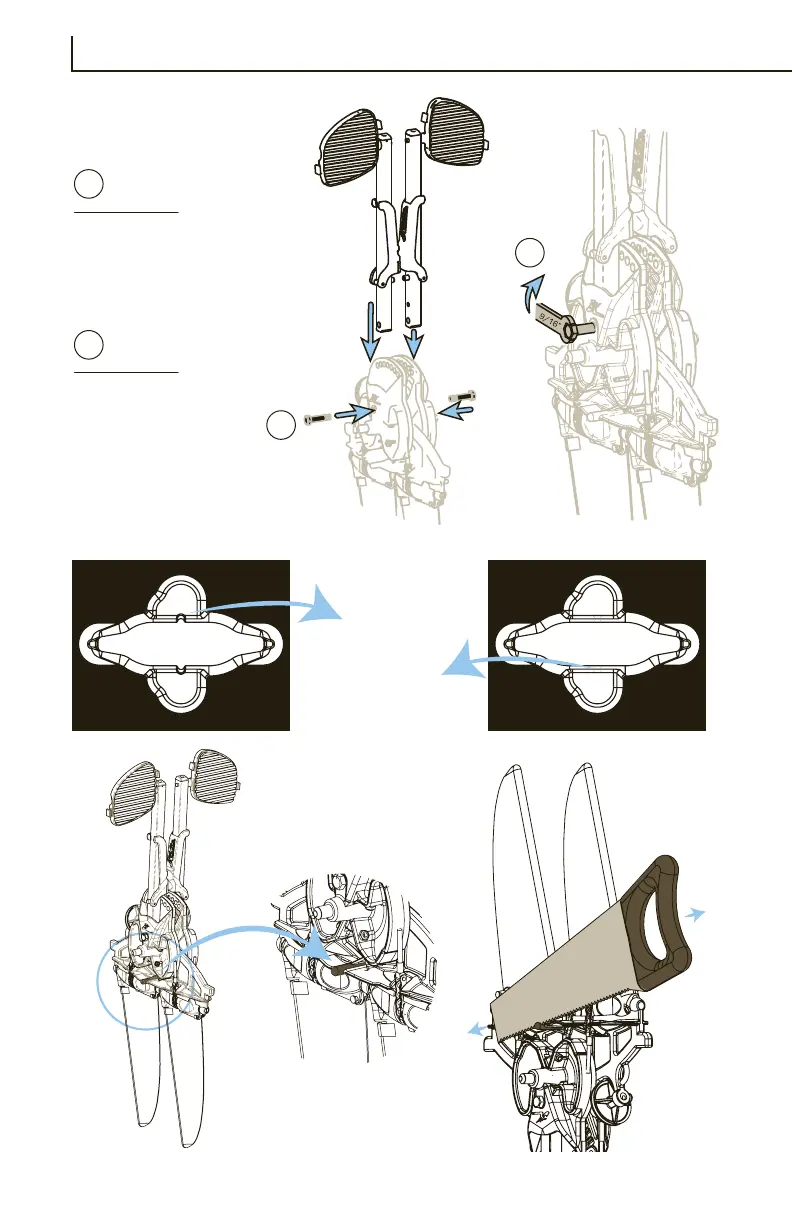

Mirage Drive Cranks
1
2
1
Insert cranks into
drums
2
Tighten crank bolt
using a 9/16” or
15mm wrench
until the bolt is
flush with the
drum.
Assembly
Identifying your Mirage well
Leave nubs if
Mirage well
features alignment
grooves.
Remove nubs if
Mirage well does not
feature alignment
grooves.
Cut nubs flush to the
edge of the shoulder on
the Mirage Drive spine.
