Older Model Pedal Installation Instructions
The difference between older and current models of the Quest
is the pedal design. New pedals are included with this kit for
you to install.

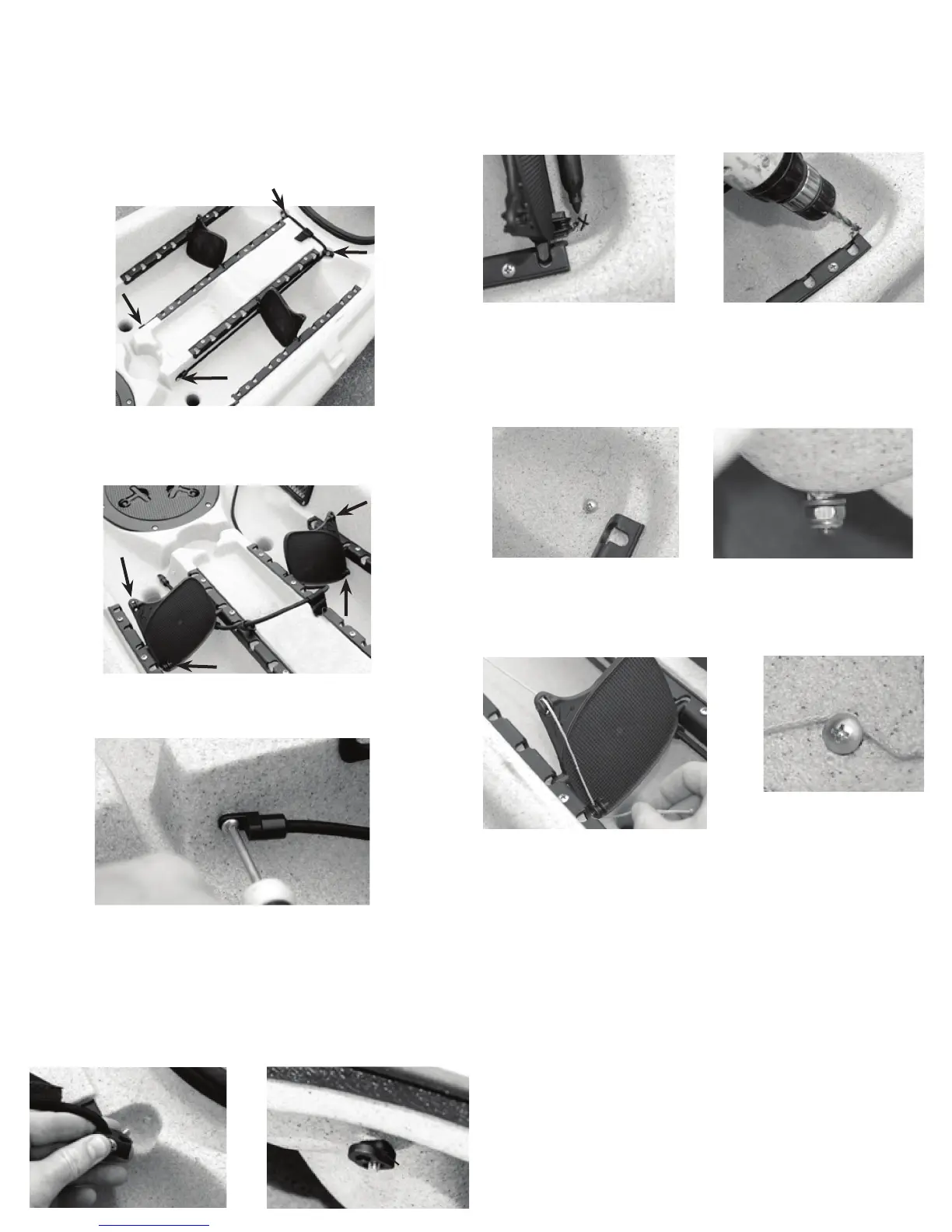

1. Remove the old pedal assembly from your kayak by
unscrewing all screws holding the pedal to
the kayak (see picture below).
2. Install the new pedals to the locking tracks in the kayak.
Make sure the the pullies on the pedal are facing forward and
are located closest to the outer walls of the cockpit.
3. Install the ends of the pedal Bungee cord with the 1/2”
Sheet Metal Screws.
4. Once the ends of the Bungee cord are attached, stretch the
cord forward and install the “two holed fittings.” You will want
to make sure that the hole in the kayak is big enough for the
screw. If the hole needs to be bigger, use the drill bit provided
in this kit. Install the screw though the two holed fitting and
through the boat. Use the Bungee hook as a nut for the screw
to thread into (this hook also functions as an anchor to tie a
lanyard to.)
5. Place the pedal in the forward-most position and adjust the
angle so that the pedal is vertical. Using a marker, place an
“X” on the kayak just infront of the bottom pulley on the pedals.
This will be your center location to drill a hole for the
attachment of the steering line. If there is a brass insert in
this location, you do not need to drill a hole.
6. Insert the screw though the hole and place the washer and
nut on the other side. Leave the screw a little loose so that
you can run the steering line underneath the screw head. If a
brass inserts is located in this position, use the screw
installed in the insert instead of the longer screw, nut and
washer.
7. Run the lines that are coming out of the side of the cockpit
through the pulley at the top of the pedal, down the back of the
pedal, and through the pulley at the bottom of the pedal. Do
this to the pedals on both sides of the kayak.
Hook
By pulling on each of the steering lines, you will notice that the
rudder will turn left and right. Balance the pull on each line so
that the rudder is centered. Also, the pedals should be tilting
slightly forward, or to whatever is most comfortable for you.
Once you have everything set just right, tighten down the
screw and nut on the footwell to hold the line in place. Now
get inside the kayak to see if it is comfortable for you. The
steering system can be fine tuned to fit all kayakers. Proceed
to the section on Using the Rudder on the water.
