Hollis LTS BCD - Page 8

Doc. 12-4179-r01 (8/29/14)
8
LTS BCD USER GUIDE
© Hollis (2014)
Fig. 5 Fig. 6
Fig. 7 Fig. 8 Fig. 9
Fig. 10

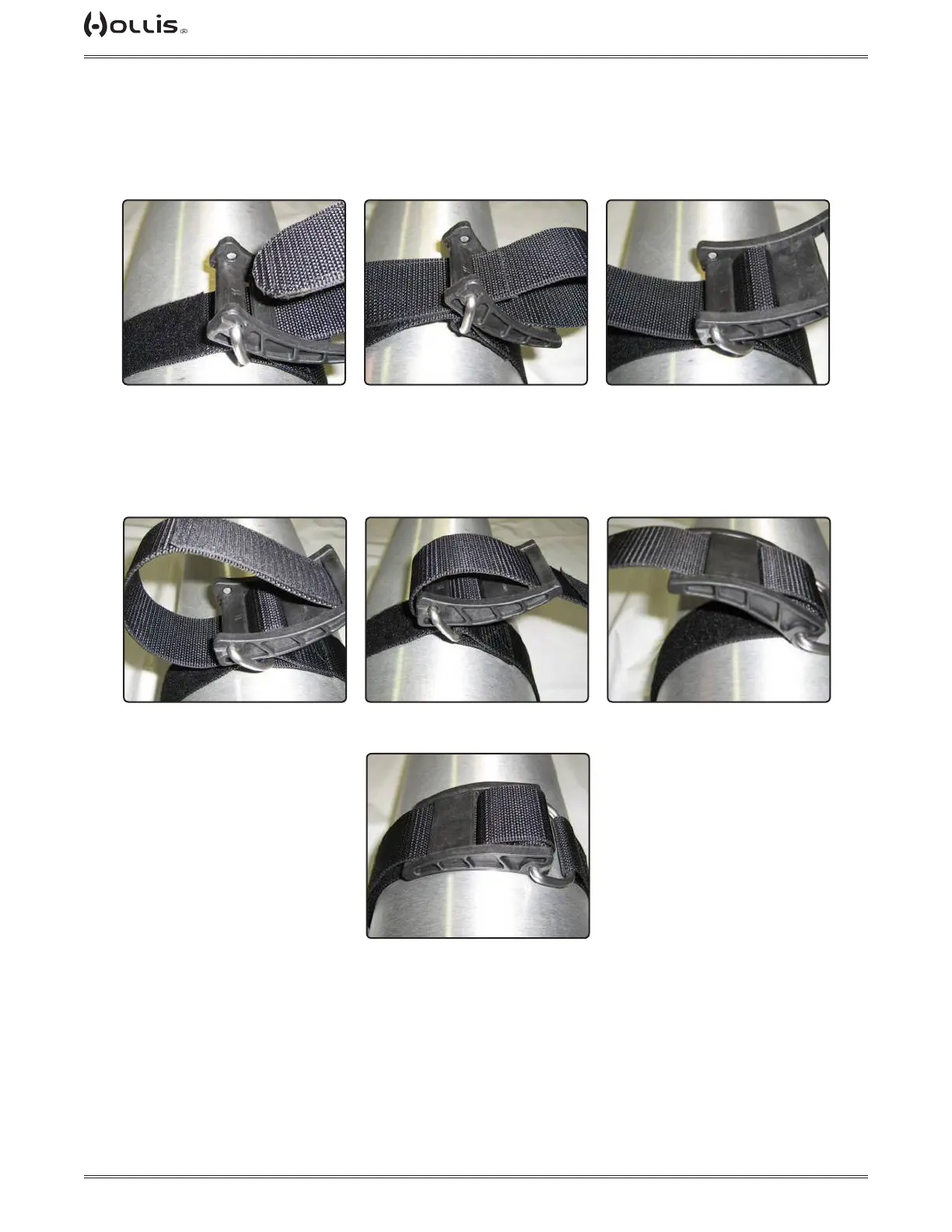

• Now weave the band through the bottom slot (Labeled 3) of the buckle so the band is against the tank (Fig.
4, 5). Pull the band tight to make sure there is no slack around the tank or in the buckle weave (Fig. 6).
Fig. 4
• With the band tight, weave the band through the top slot (Labeled 4) of the buckle from inside to outside
(Fig. 7). Pull tight and fold the buckle over so it snaps against the tank (Fig. 8, 9). Now attach remaining
webbing to the webbing against the tank using the self gripping patch (Fig. 10).
