Doc. 12-4179-r01 (8/29/14)
7
LTS BCD USER GUIDE
© Hollis (2014)

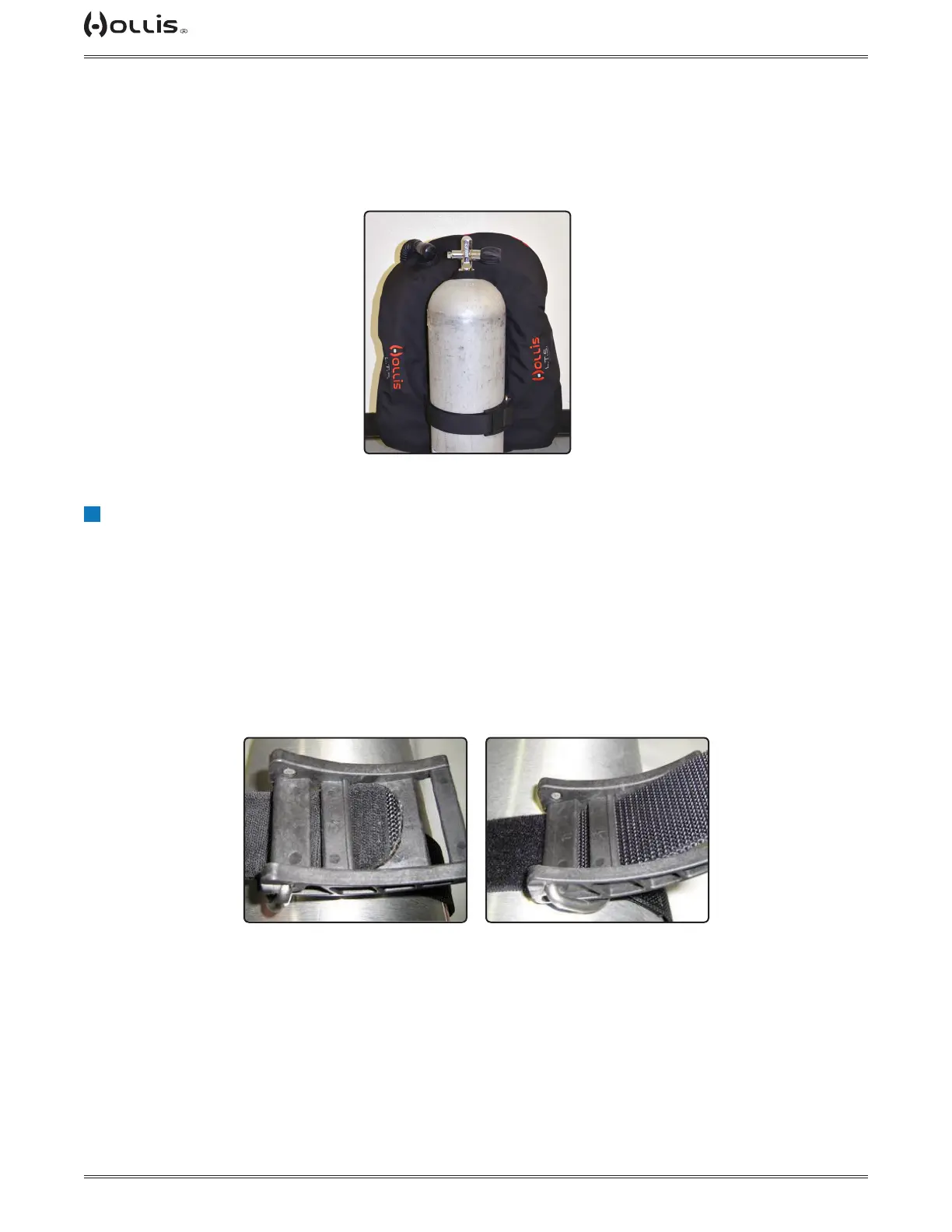

The LTS is only designed to handle a single tank and uses a single cam band and guide strap. Use the at-
tached adjustable guide strap to position the tank on the LTS by placing it around the neck of the tank (Fig. 1).
Fig. 1
!
NOTE: The upper cam band slots are for use only with shorter tanks i.e. HP 60, AL 60; etc. For proper
stabillity with standard tank sizes, use the lower cam band slots.
Use the following steps to weave the cam band. Nylon may loosen when wet, to ensure an extra secure hold,
soak the straps in water before tightening:
• Pull the band through SS (Stainless Steel) attachment at the base of the buckle (Labeled 1) so the band is
now on the outside of the buckle (Fig. 2).
• Now weave the band through the middle slot (Labeled 2) from outside to inside (Fig. 3).
Fig. 2 Fig. 3
attaching a tank
