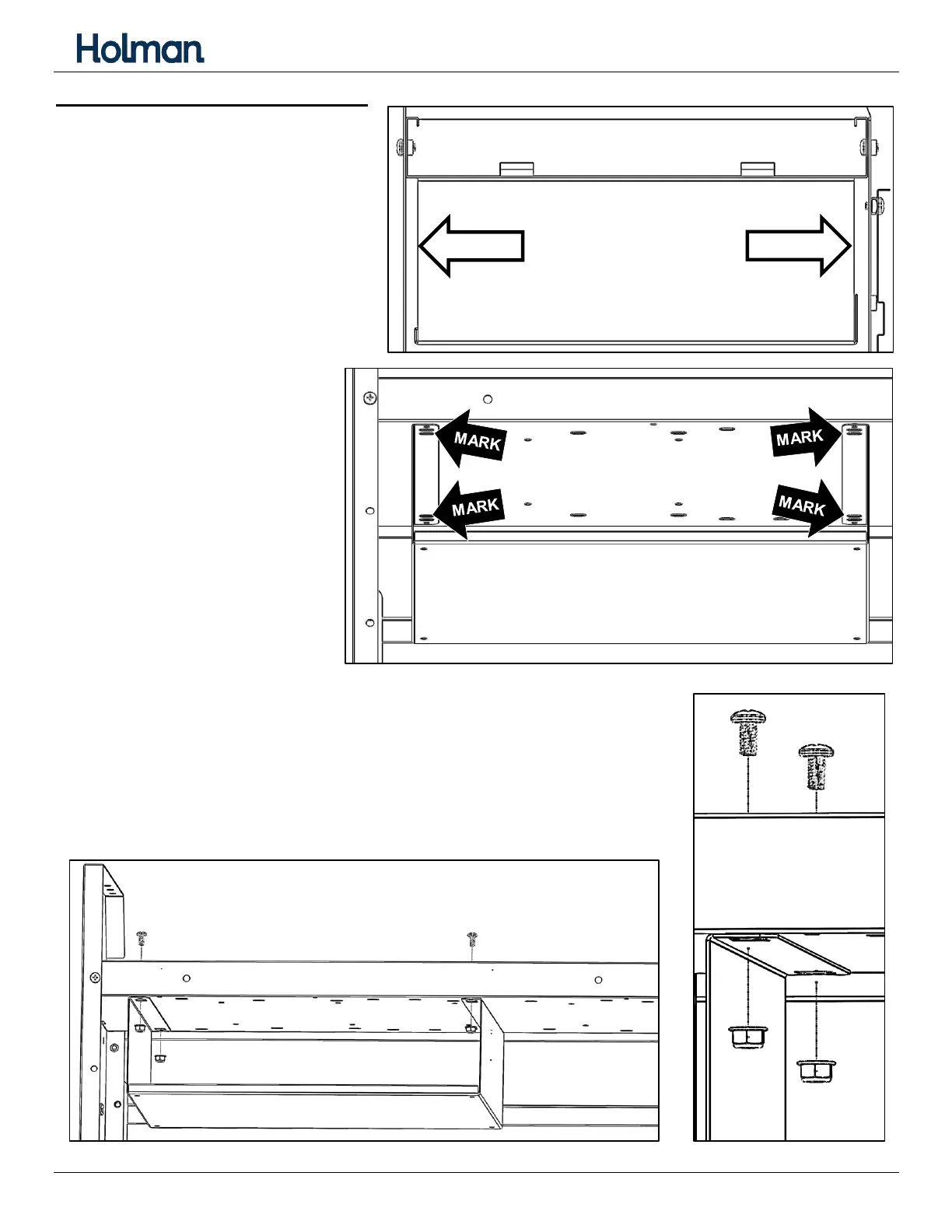

Step 1A – Install to Steel Shelf
When installing to a Holman steel
shelf, the shelf flanges must be
facing upwards, as shown. The
small flange on the Kargo Case
holder goes towards the front,
where the case will be accessed.
Place Kargo Case holder in
desired position on bottom
side of shelf.
NOTE: Some existing shelf
holes will align with Kargo
Case holes depending on
desired location
Mark center of holder inner
holes onto shelf.
Set bracket aside.
Using a 5/16” drill bit, drill
through the shelf where
marked.
Using four 1/4 x 1/2” pan head screws, and four 1/4” flanged lock nuts,
attach Kargo Case holder to shelf. Be sure to have screws facing
down.
Tighten hardware.
