HOLYKELL UF2000 Series - Separated Mounting Installation and Wiring

4

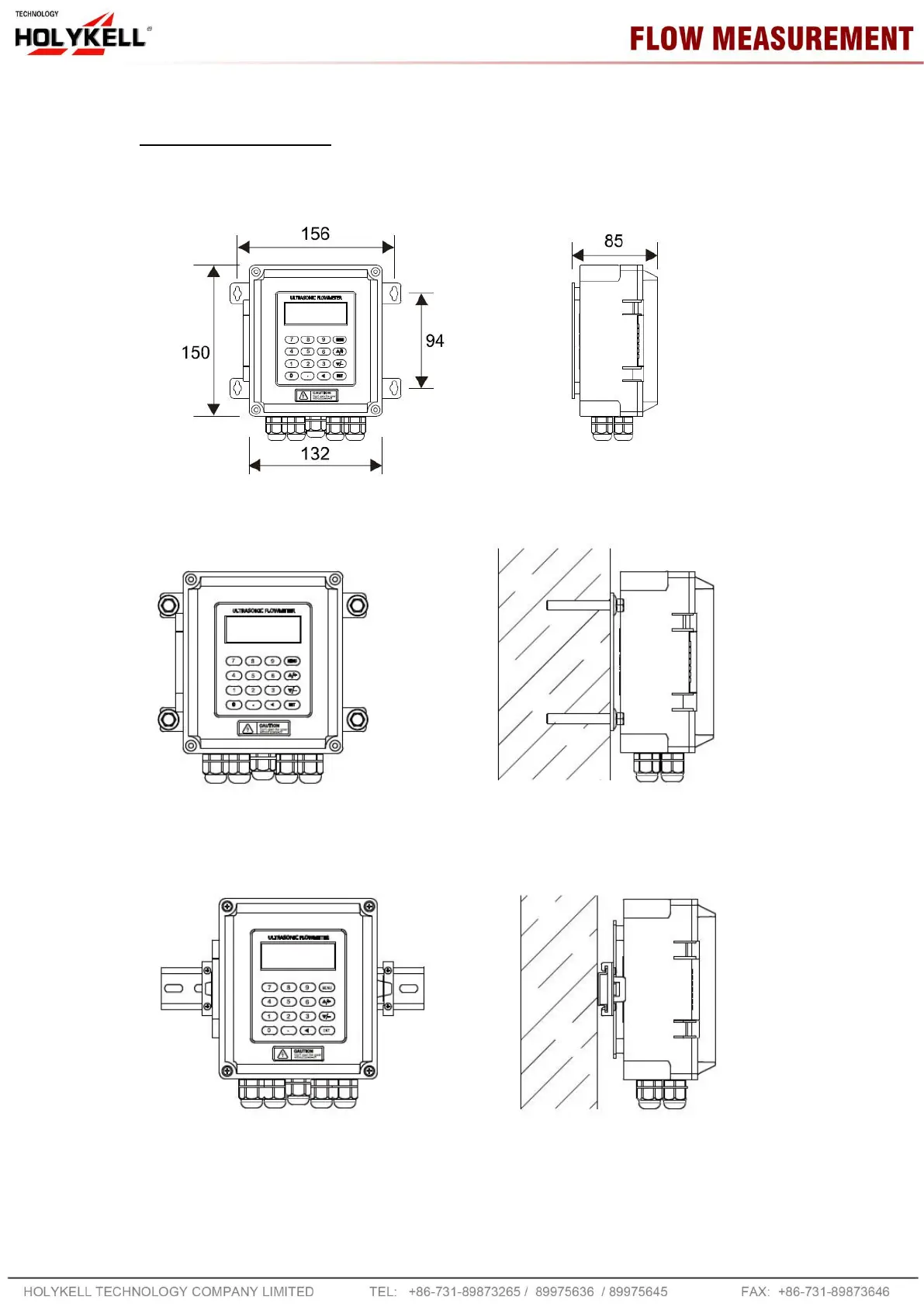

4.1 Separated Mounting

UF2000B Installation Instruction

Wall mounting: Fix the converter with 4 Φ6 expansion bolts or normal nails.

DIN-rail mounting by using rail fixing clamps.

DIN-rail mounting by using PCB bracket
