HOMCOM A90-196 Assembly Instruction

~ 6 ~

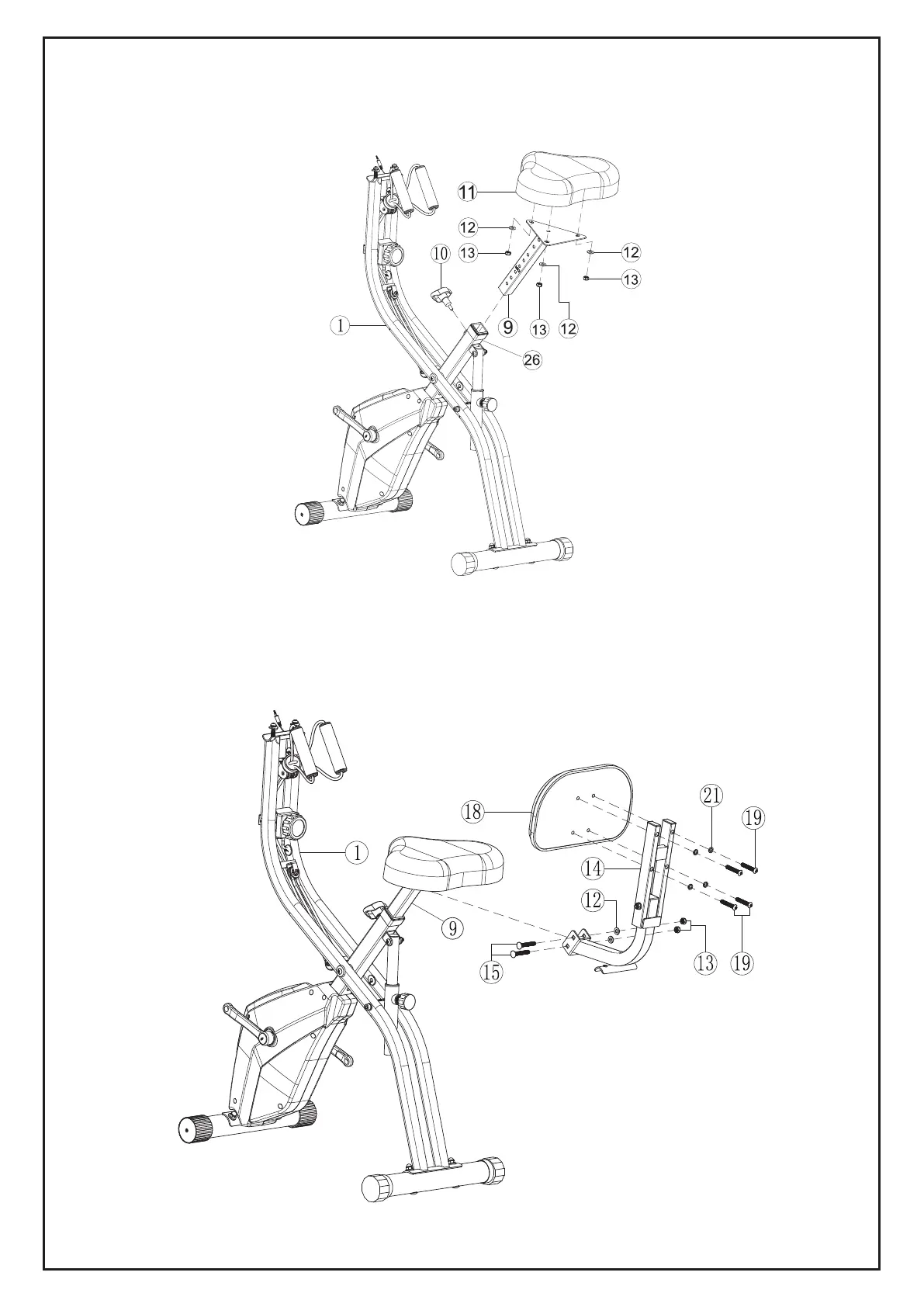

Connect the cushion (11) to the seat tube (9) using a M8 flat washer (12), M8x62) nut (13). Then screw
in the seat support tube (26) with knob (10).
STEP 4
Connect the backpack frame (14) to the seat tube (9) with bolt (15), washer (12), Nut (13) and screw the
backpack (18) to the backpack frame (14) with a bolt (19).
STEP 3
