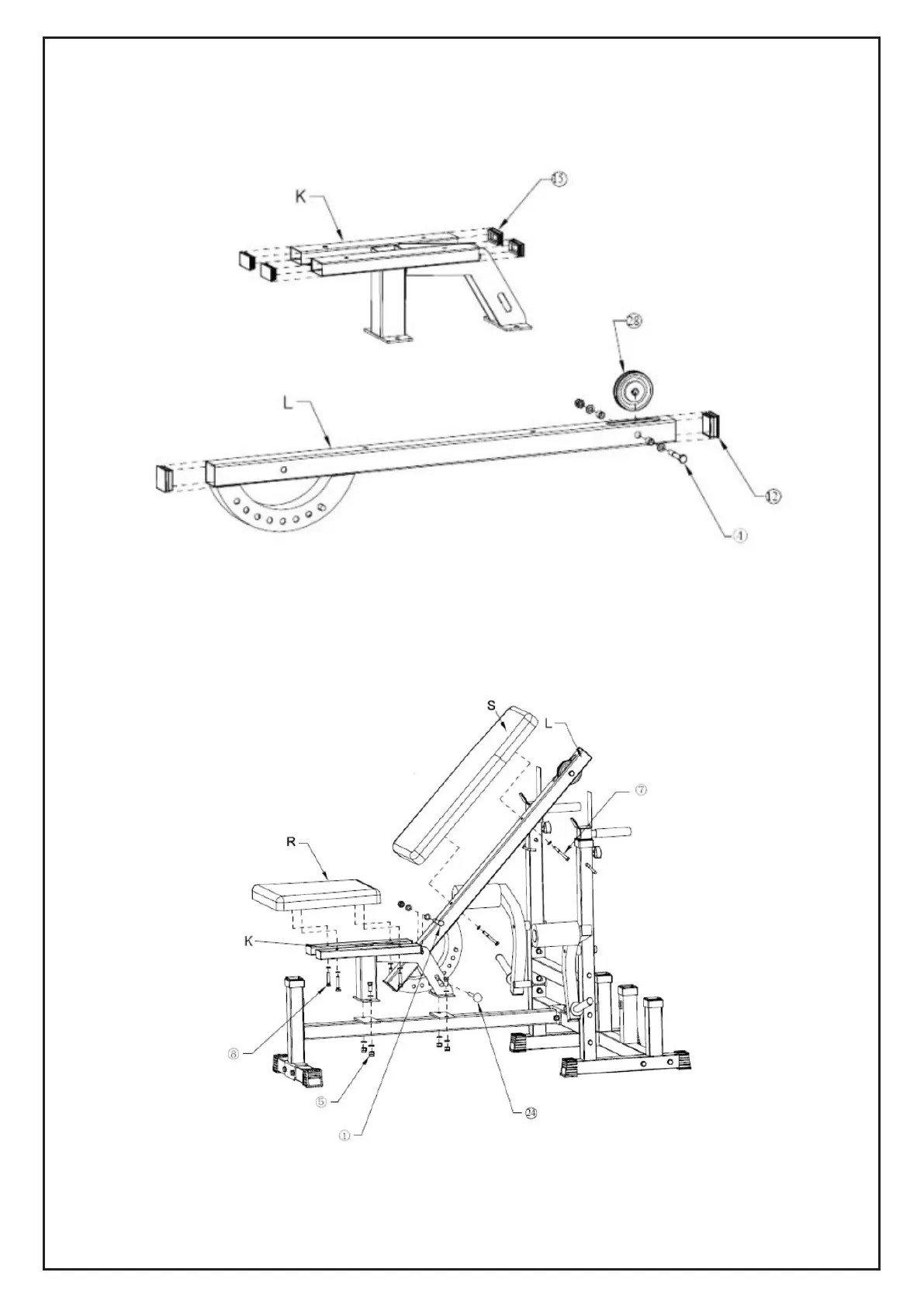

Step 3:
• Install 4 x 60x30 tube plugs (15) on K.
• Install 2 x 50x50 tube plugs (12) and 1 x pulley (28), M10x65 screw, nut, and washer (4).
Step 4:
• Install the seat cushion on K with 4 x M8x45 screws, nuts, and washers (8).
• Install the backrest on L with 2 x M8x65 screws, nuts, and washers (7).
• Install parts L and K with 4 x M10x25 screws, nuts, and washers (5), 1 x M12x75 screw, nut, and
washer (1) and the degree adjusting bolt (24).
• Install part R and S.
