NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The power tool is intended as a stationary machine for making straight lengthways and
crossways cuts in wood. Horizontal mitre angles of -45° to +45° as well as vertical bevel angles
of 0° to +45° are possible.

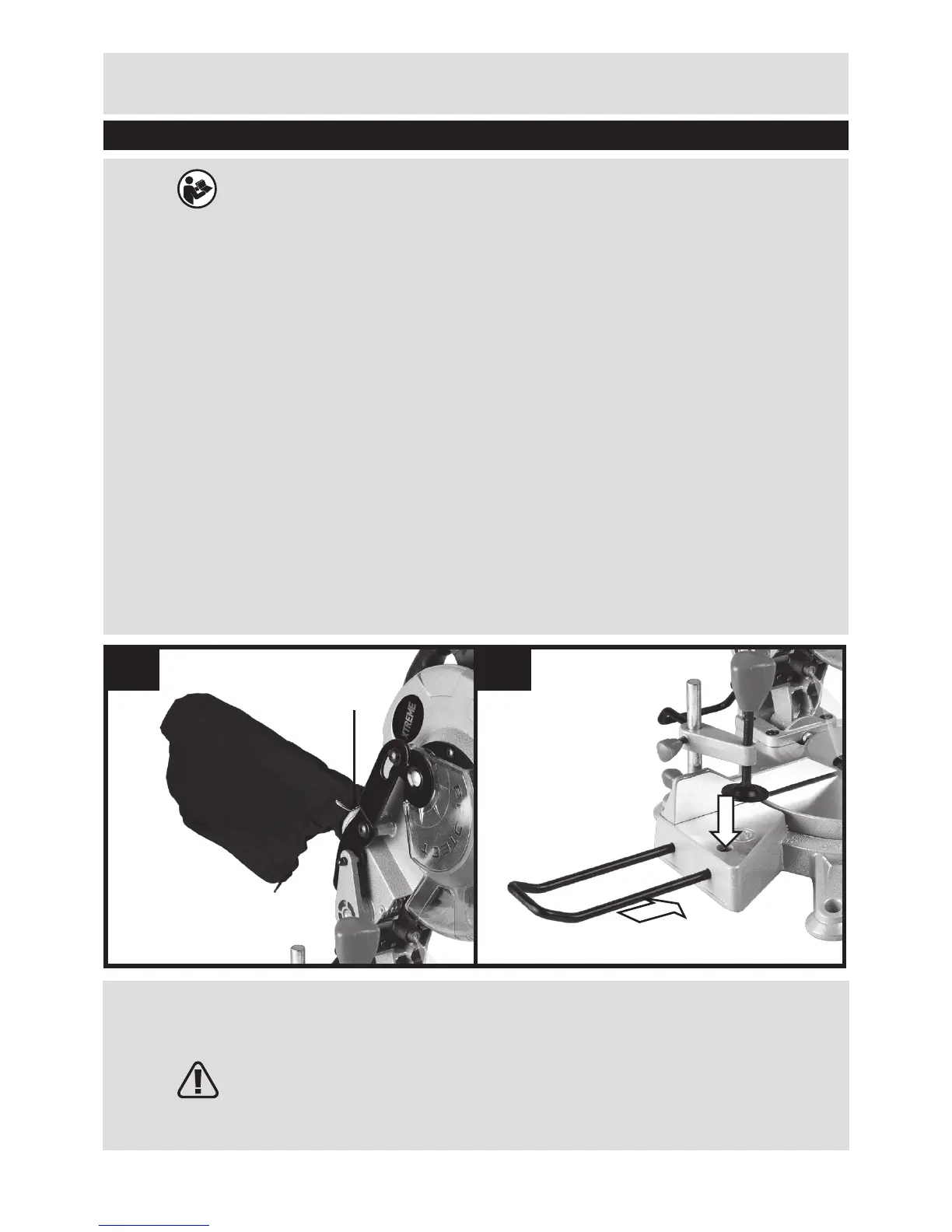

1. Dust extraction port (See Fig. A)
To reduce build up of saw dust and maintain top eciency of cutting, the saw dust collection
can be achieved by clipping a dust bag on the dust extraction port.
A dust bag is provided for use on your mitre saw. To install it simply t the dust bag over the
exhaust port on the upper blade guard.
To empty the dust bag, remove it from the dust extraction port, open the dust bag by
unzipping the slide fastener.
Note: To ensure optimal dust collecting, empty the dust bag when it becomes lled to
approximately 2/3 of its capacity.
2. Table extension rail (See Fig. B)
To install table extension rail, simply insert ends of extensions into the holes in either or both
sides of the base. Secure them in place by tightening clamp screw on the base.
The table extension rail is used for supporting the long pieces.
3. The support stand (See Fig. B1-B3)
Loose the screw (a) from the base. Insert ends of support stand (26) into the holes in the back
of the base plate and tighten the screw on the base as shown in Fig. B1 & B2 & B3.
WARNING: Always assemble the support stand when using the product.
Operation Instructions
