8
ASSEMBLY

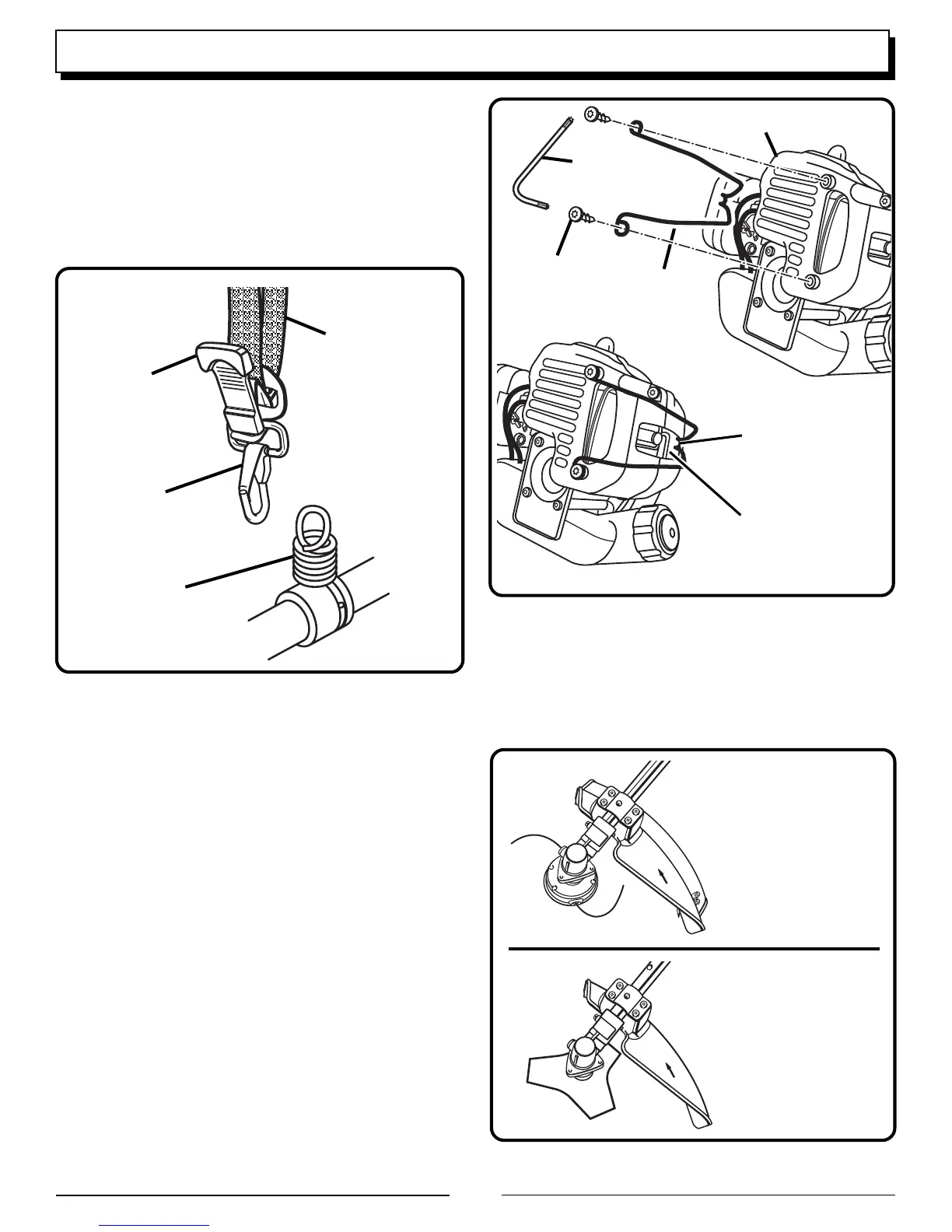

SILENCER GUARD ASSEMBLY
See Figure 4.
1. Remove silencer guard and two screws from the
owner’s kit.
2. Attach the silencer guard to the rear housing.
NOTE: Make sure the bent end of the silencer guard fits
securely into the opening of the rear housing.
3. Install two screws.
4. Tighten screws securely.
Fig. 4
BENT END OF
SILENCER GUARD
OPENING IN REAR
HOUSING
SCREWS
SILENCER
GUARD
REAR HOUSING
TORQUE
WRENCH
GRASS DEFLECTOR AND BLADE GUARD
USE
NOTE: When converting from brushcutter to trimmer, or
trimmer to brushcutter, make sure the correct guard/
deflector is being used.
See Figure 5.
ATTACHING THE SHOULDER STRAP
See Figure 3.
1. Connect the latch on the shoulder strap to the
strap hanger.
2. Adjust the strap to a comfortable position.
NOTE: To quickly release the product from the shoulder
strap, sharply pull the quick release tab.
SHOULDER
STRAP
LATCH
STRAP HANGER
QUICK
RELEASE
TAB
Fig. 3
GRASS DEFLECTOR FOR
TRIMMER USE
BLADE GUARD FOR
BRUSHCUTTER USE
Fig. 5
