CHAIN TENSIONING
SCREW
Fig. 40
BAR
GROOVE
CHAIN DRIVE LINKS
Fig. 38
MAINTENANCE
CUTTERS
CHAIN ROTATION
CHAIN DRIVE LINKS
Fig. 37
ADJUSTING
PIN
BAR STUDS
CLUTCH
COVER
SPROCKET
Fig. 39
CHAIN TENSIONING
PIN HOLE

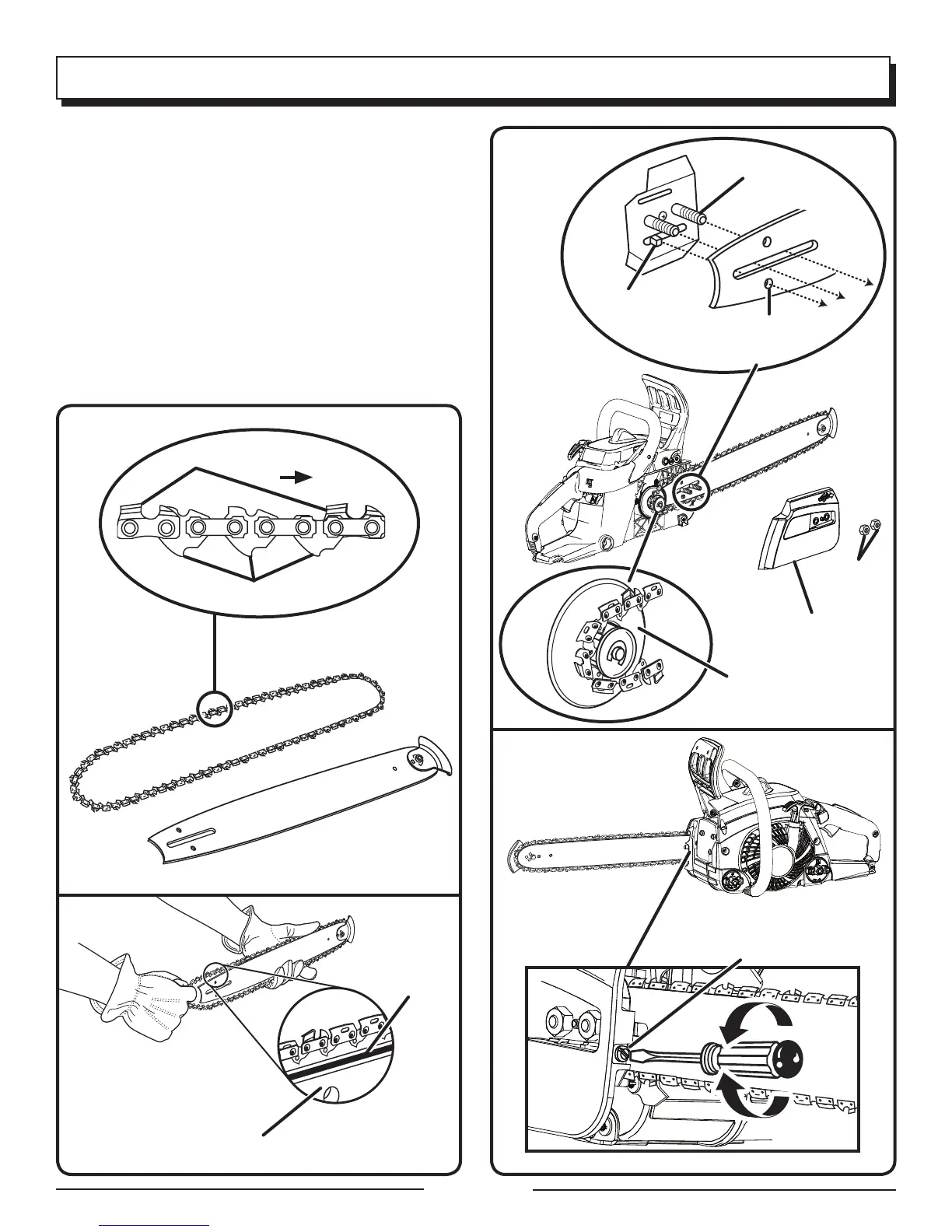

Remove the clutch cover.
Remove the bar and chain from the mounting surface.
Remove the old chain from the bar.
Lay out the new saw chain in a loop and straighten any
kinks. The cutters should face in the direction of chain
rotation. If they face backwards, turn the loop over.
Place the chain drive links into the bar groove as
shown.
Position the chain so there is a loop at the back of the
bar.
Hold the chain in position on the bar and place the loop
around the sprocket.
BAR
MOUNTING
NUTS
