PRODUCT SPECIFICATIONS
FEATURES
Bar length:
UT10540, UT10542 ................................. 14 in.
UT10560, UT10562 ................................. 16 in.
UT10580, UT10582, UT10585, UT10918 .. 18 in.
Chain pitch ............................................. .375 in.
Chain gauge ........................................... .050 in.
Chain type ....................... Low Profile Skip Tooth
Drive sprocket ......................................... 6-tooth

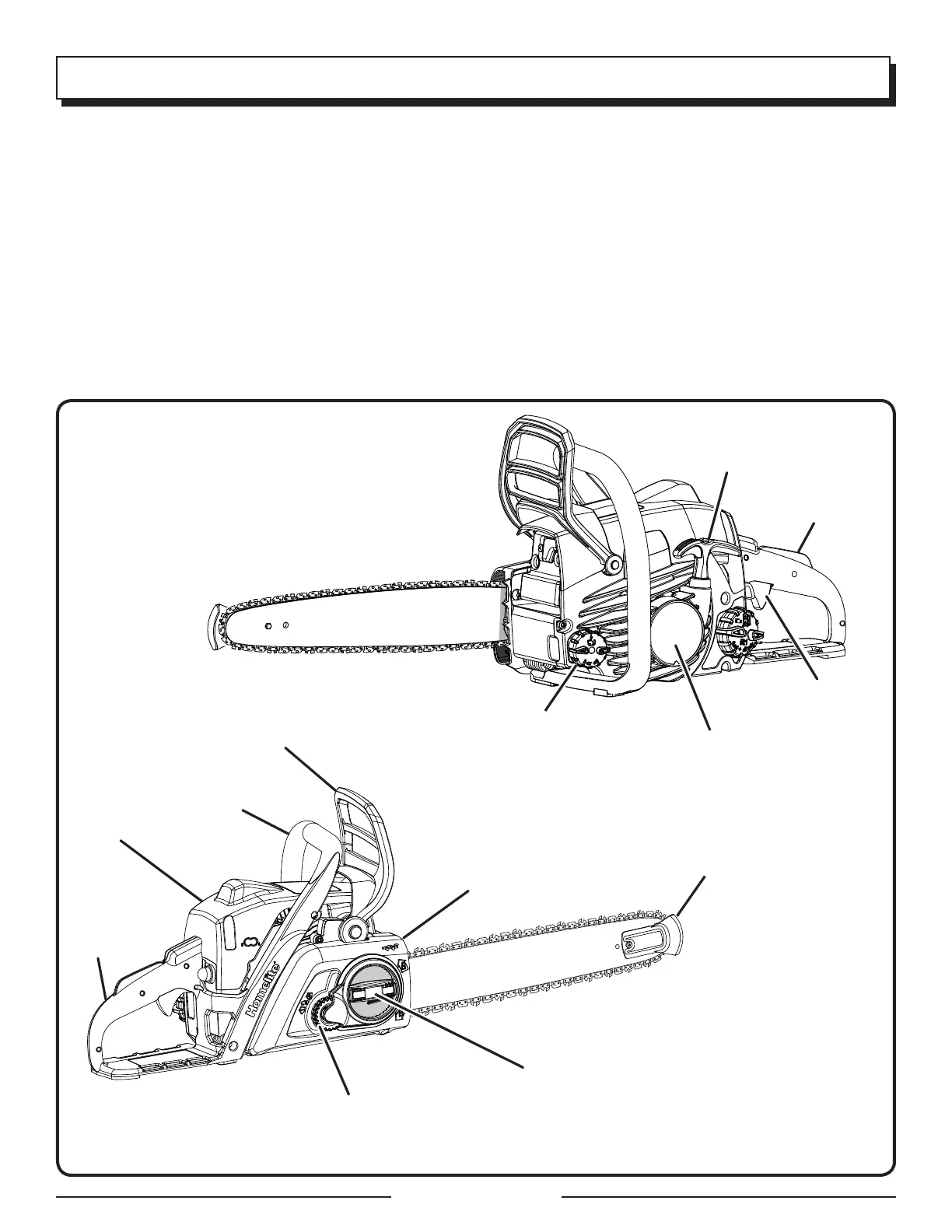

Fig. 1a
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
CYLINDER
COVER
TRIGGER
RELEASE
REAR
HANDLE
THROTTLE
TRIGGER
CHAIN OIL
CAP
STARTER
HOUSING
STARTER
GRIP
SAFE-T-TIP
®
CLUTCH COVER
Engine displacement ................................... 42cc
Engine power ...................................... 2 HP min.
Idle engine speed ........2,600-3,400 r/min. (RPM)
Fuel tank capacity .................................. 11.5 oz.
Chain lubricant tank capacity ................... 6.8 oz.
Weight - No bar, chain, fuel or lubricant .. 9.8 lbs.
CHAIN
TENSIONING DIAL
CLUTCH COVER
LOCK KNOB
