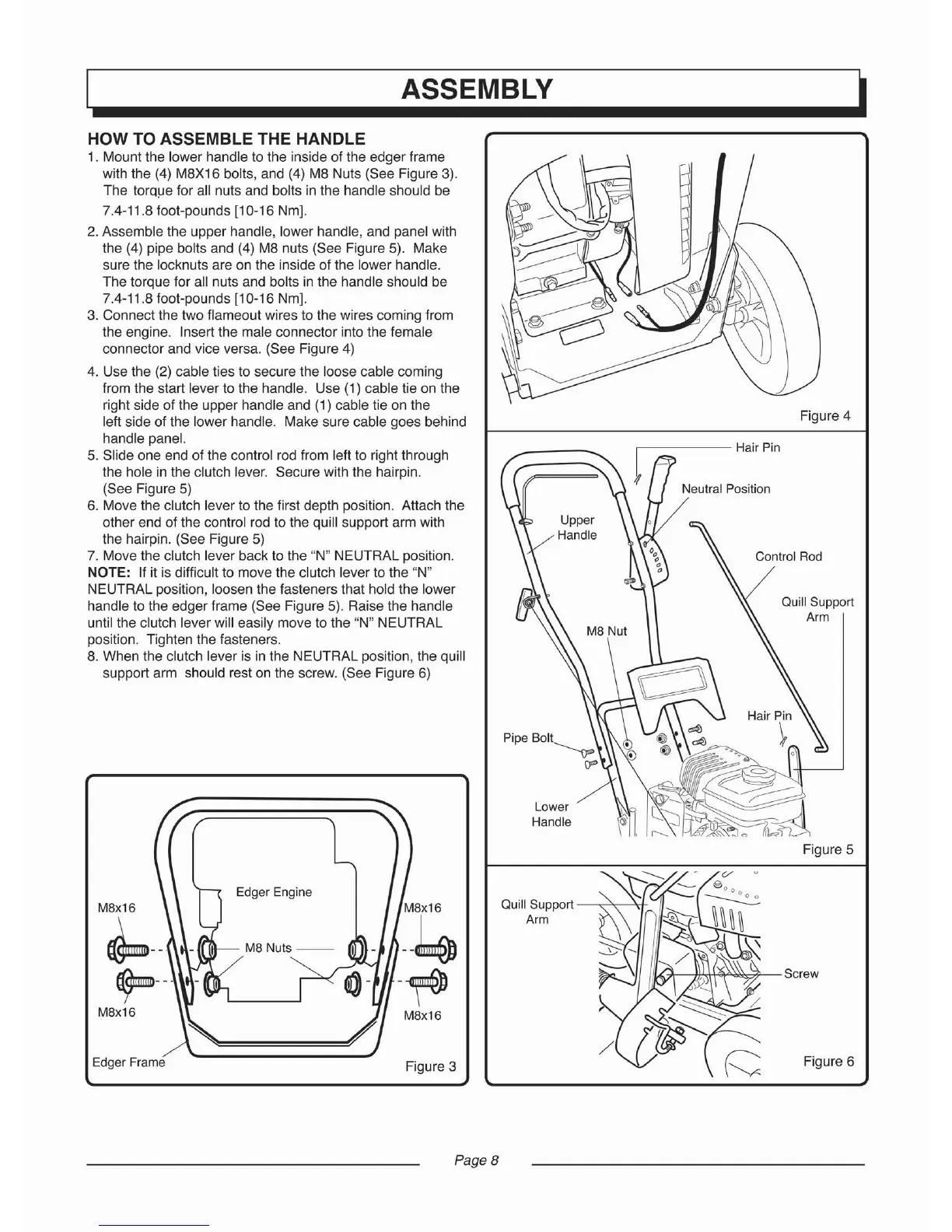

ASSEMBLY
Figure 6
Figure 5
Figure 4
Quill Support
Arm
Contro l Rod
Neutral Pos ition
----- HairPin
Upper
Handle
Lower
Handle
Quill Support - """, ,,, "</- .
Arm
Figure 3
M8x16
- - ~
-~
M8x16
~-
Edger Engine
M8x16
~ - 
~ - _ .
M8x16
EdgerFrame
HOW TO ASSEMBLE THE HANDLE
1. Mount the lower handl e to the inside of the edger frame
with the (4)
M8X 16 bolts, and (4) M8 Nuts (See Figure 3).
The torque for all nuts and bolts in the handle should be
7.4- 11.8 foot-pounds [10-16 Nm].
2. Assemble the upper handle, lower handle, and panel with
the (4) pipe bolts and (4) M8 nuts (See Fi
gur e 5). Make
sure the locknuts are on the inside of the lower handle.
The torque for all nuts and bolts in the handle should be
7.4-11.8 foot-pounds [10-16 Nm].
3. Connect the two flameo ut wires to the wires coming from
the eng ine. Insert the male con nector into the female
connector and vice versa. (See Figure
4)
4.
Use the (2) cab le ties to secure the loose cable coming
trom the start lever to the handle. Use (1) cab le tie on the
right side of the upper hand le and (1) cable tie on the
left side of the l
ower handle. Make sure cable goes behind
hand le panel.
5. Slide one end of the control rod from left to right through
the hole in the clutch lever. Secure with the hairpin.
(See Fi
gur e 5)
6. Move the clutch lever to the first depth posit ion. Attac h the
other end of the control rod to the quill support arm with
the hairpin. (See Fi
gur e 5)
7. Move the clutch lever back to the "N"
NEU TRAL position .
NOTE: If it is difficult to move the clutch lever to the "N"
NEUTRAL position, loosen the fasteners that hold the lower
handle to the
edger frame (See Figure 5). Raise the handle
until the clutch lever will easily move to the "N" NEUTR AL
position. Tighten the fasteners.
8. When the clutch lever is in the NEUTRAL position, the quill
support arm should rest on the screw. (See Figure 6)
Page 8
